TWO WESTS Elliott J1 Deluxe Misting Kit Instruction Manual
DELUXE MISTING KIT J1(03) Assembly Instructions
COMPONENTS
| Component | Kit Size | ||
| 4’ x 4’ | 7’ x 4’ | 10’ x 4’ | |

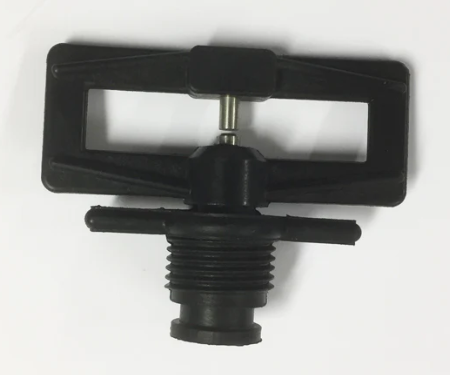

| A Mist Jet | 1 | 2 | 3 |
| B Socket | 2 | 3 | 4 |
| C ½ Metre Tube | 2 | 3 | 4 |
| D Elbow | 1 | 1 | 1 |
| E 1 Metre tube | — | 1 | 2 |
| F ‘T’ Connector | — | 1 | 2 |
| G Hose Inlet | 1 | 1 | 1 |
| Tape | 1 | 1 | 1 |
- Please check the components

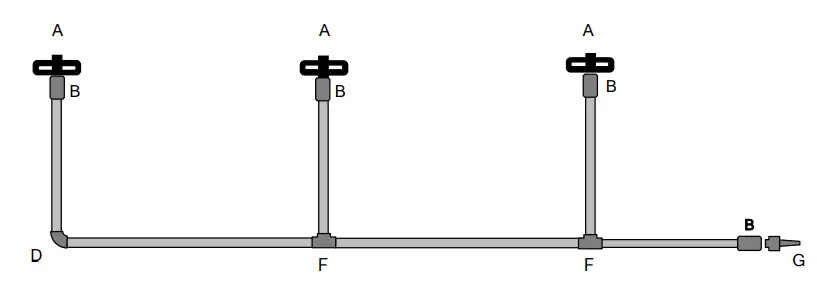

- Assemble your kit as shown in the diagram using a small amount of the tape on the threaded end of each tube. This facilitates assembly and ensures a watertight joint.
- If incorporating a solenoid valve, install it between the end socket joint “B” and hose inlet “G”
AUTOMATIC MISTING
This system may be made to operate automatically by introducing an Electronic Leaf Controller
TWO WESTS & ELLIOTT LTD
4, Carrwood Road, Chesterfield, Derbyshire, S41 9RH. Tel: (01246) 451077
