ASW S Series
Single-phase inverters 5 to 10 kW
Models:
ASW5000-S-A ASW6000-S-A ASW8000-S-A ASW10000-S-A

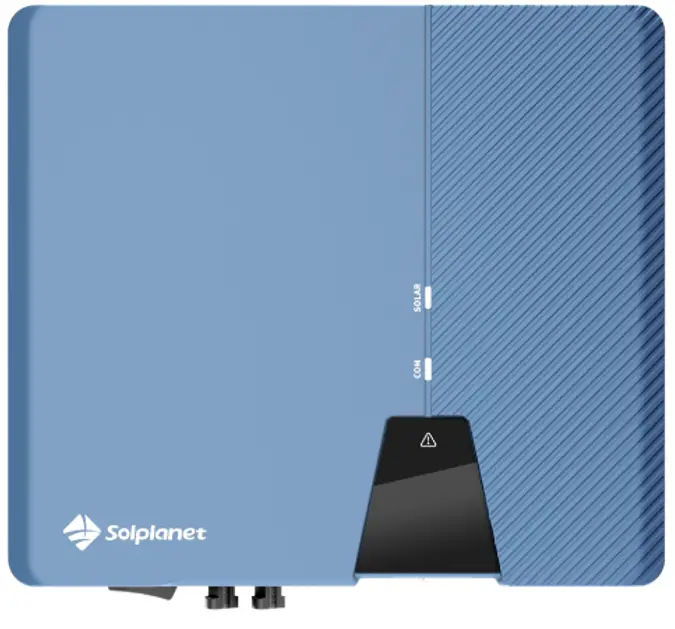

ASW5000-S-A Single Phase Inverters
Easy-to-install
- Toolless DC connection via Phoenix Contact connectors
- Quick setup and commissioning with AiSWEI apps
- Compact wall mount design
Reliable
- International quality standards
- Integrated DC switch
- IP66 rated design for outdoor use
User-friendly
- 16 A input current, compatible with bifacial and large-area PV modules
- Online monitoring via Wi-Fi and AiSWEI apps
- 3 MPPT´s for flexible PV array design
Technical Datasheet
ASW5000-S-A ASW6000-S-A ASW8000-S-A ASW10000-S-A
| Input (DC) | Max. PV array power | 8000 Wp STC | 9000 Wp STC | 12000 Wp STC | 15000 Wp STC |
| Max. input voltage | 600 V | ||||
| MPP voltage range / rated input voltage | 80 V – 560 V / 360 V | ||||
| Min. input voltage | 80 V | ||||
| Initial. feed in voltage | 100 V | ||||
| Max. operating input current | 16 A | ||||
| Max. short circuit current | 22.5 A | ||||
| No. of independent MPPT inputs/strings per MPPT input | 3 / 1 | ||||
| Output (AC) | Rated active power | 5000 W | 6000 W | 8000 W | 10000 W |
| Rated apparent Power | 5000 VA | 6000 VA | 8000 VA | 10000 VA | |
| Max. apparent power | 5000 VA | 6600 VA | 8800 VA | 10000 VA | |
| AC nominal voltage | 220 V / 230 V / 240 V | ||||
| AC voltage range | 180 V to 295 V | ||||
| AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz | ||||
| Max. output current | 21.7A | 30 A | 40 A | 50 A | |
| Adjustable power factor range | 0.8 leading to 0.8 lagging | ||||
| Feed-in phases | 1 | ||||
| Harmonic distortion (THD) at rated output | < 3 % | ||||
| Efficiency & Protection | Max. efficiency / European efficiency | 97.7 % / 97.3 % | |||
| DC switch | ● | ||||
| Ground fault monitoring/grid monitoring | ● / ● | ||||
| DC reverse polarity protection / AC short circuit protection | ● / ● | ||||
| The all-pole-sensitive residual-current monitoring unit | ● | ||||
| Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I/AC: III; DC :ll | ||||
| General data | Dimensions (W / H / D) | 503 / 435 / 183 mm | |||
| Weight | < 18 kg | ||||
| Operating temperature range | -25°C … +60°C | ||||
| Self-consumption (at night) | < 1 W | ||||
| Topology | Non-isolated | ||||
| Cooling concept | Natural convection | ||||
| Degree of protection (according to IEC 60529) | IP66 | ||||
| Climatic category (according to IEC 60721-3-4) | 4K4H | ||||
| Max. permissible value for relative humidity (non-condensing) | 100% | ||||
| Max. operating altitude | 3000 m | ||||
| Features | DC connection | Plug-inconnector | |||
| AC connection | Plug-in connector | ||||
| Mounting type | Wall-mount bracket | ||||
| LED indicators (Status / Fault / Communication) | ● | ||||
| Communication interface1&2 | Wi-Fi / 4G / RS485 (Optional) | ||||
| Country of Manufacture | China | ||||
| Certificates and approvals (more available on request) | CE, EN50549, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, AS/NZS4777, C10/C11 | ||||
- Standard features / ○ optional features / – not available
Data at nominal conditions. All information is subject to change.
1- Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2- DRED supported with RS485 communication for Australia & New Zealand
