Drieaz 2020 Dehumidifier Command Hub User Guide

DRIEAZ 2020 Dehumidifier Command Hub

Home Screen

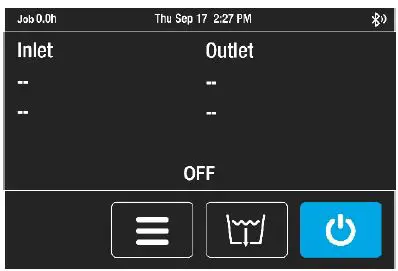

Unit OFF
Unit must be plugged in.

1. Press MENU to access settings and configuration controls
2. Press condensate tank PURGE to pump out
3. Press ON/OFF to turn unit on

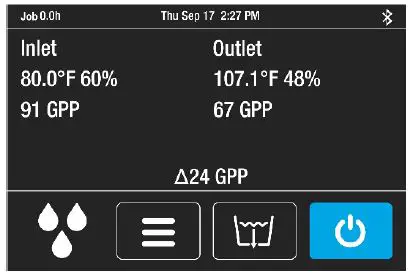

Unit ON

•  Job hours and Time
•  Inlet/Outlet temp, %RH and GPP
•  Current GPP removal

Bottom menu bar:
Quick-Reference Inlet GPP 1 drop: < 60 GPP 2 drops: 60–90 GPP 3 drops: > 90 GPP

1. Press MENU to access settings and configuration controls
2. Press condensate tank PURGE to pump out
3. Press ON/OFF to turn unit on.

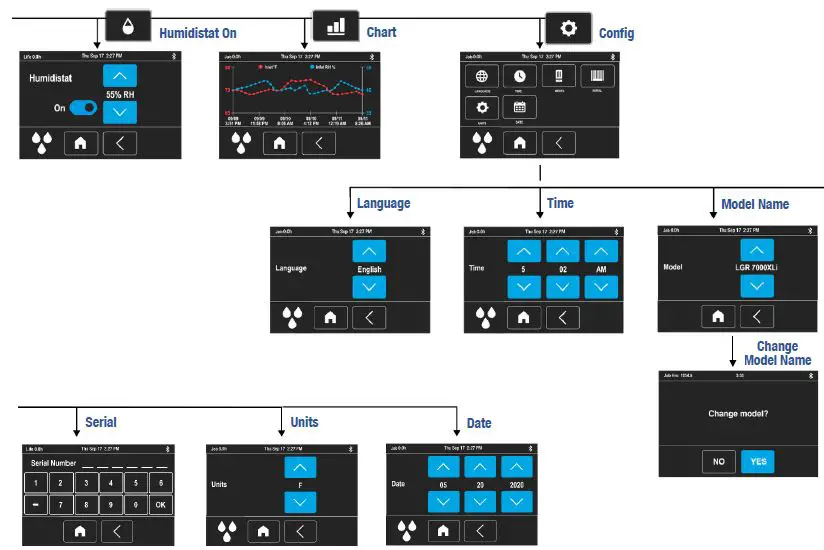

Menu Structure

• LEGEND BRANDS
• CommandHub.LegendBrandsRestoration.com
• Live Chat: Info.LegendBrands.com
