QUICK INSTALLATION GUIDE
E15
Quick Installation Guide
OPTION 1 D-LINK AI APP SETUP
1.

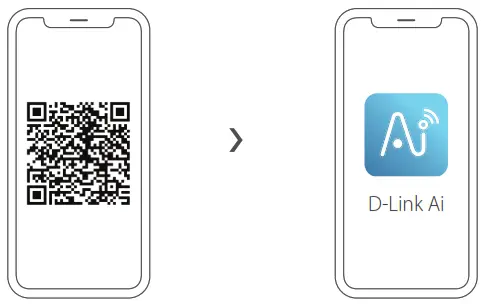

Scan the QR code above to download the D-Link Ai app from the App Store or from Google Play and launch it.
Note: Please check the app store for device requirements and compatibility. Not all D-Link products are supported by the D-Link Ai app.
2.

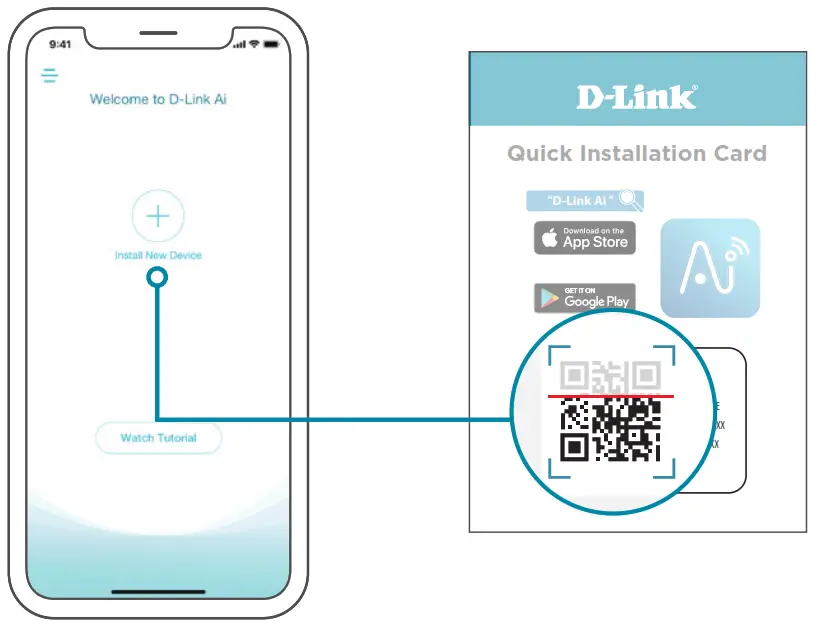

Tap Install New Device. Tap Scan the QR code. Scan the code on the Quick Installation Card provided in the packaging of your product. Follow the onscreen instructions
to complete the setup.
ENJOY!
You’re all good to go! Connect devices to your network using the Wi-Fi Name (SSID) and password that you created during the setup process.
OPTION 2 WEB BROWSER SETUP

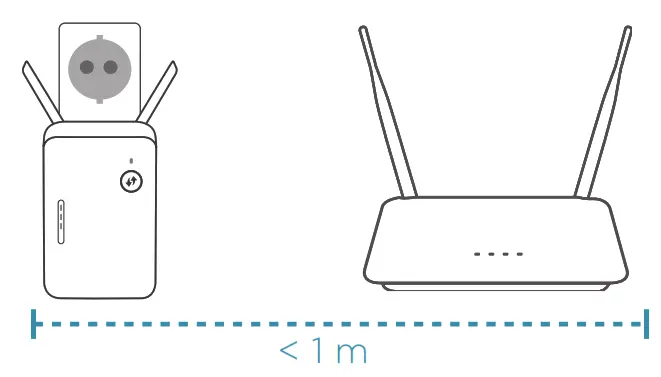

1 /Plug the extender into a power source close to your router.

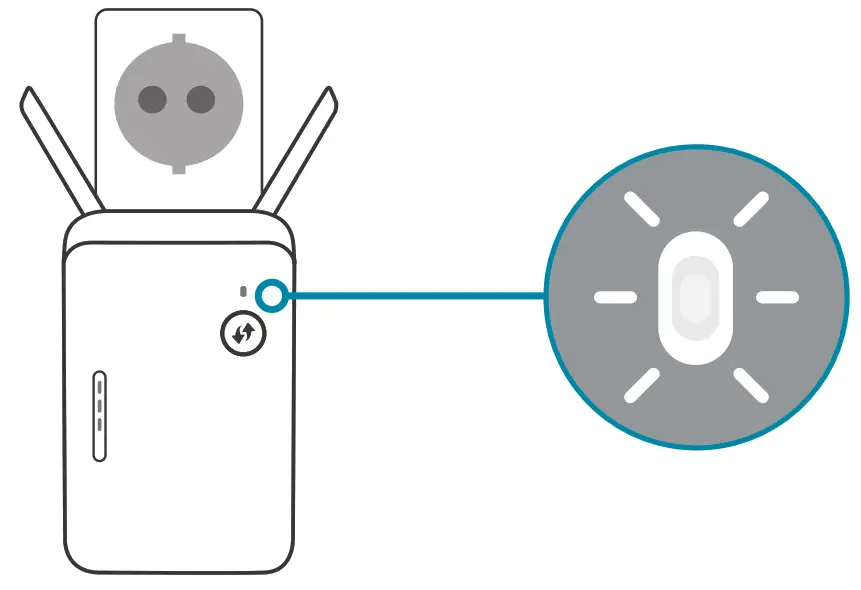

2 / Wait for the Power LED of the extender to start blinking amber.
Note: Please refer to the User Manual for device-specific LED behavior.

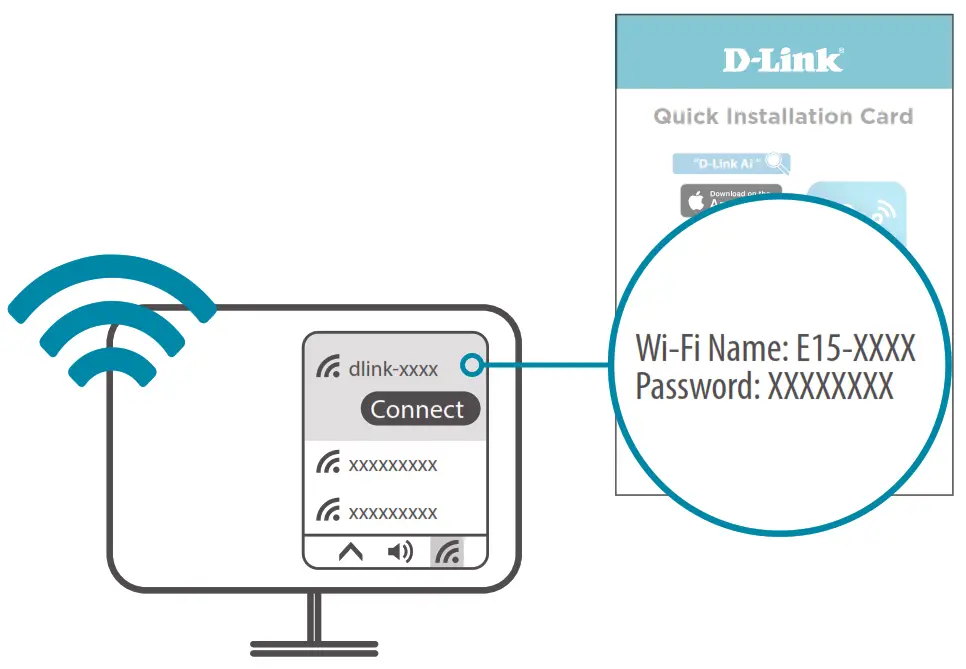

3 / Connect your computer to the Wi-Fi name and password printed on the Quick Installation Card, or on the device label of the device.

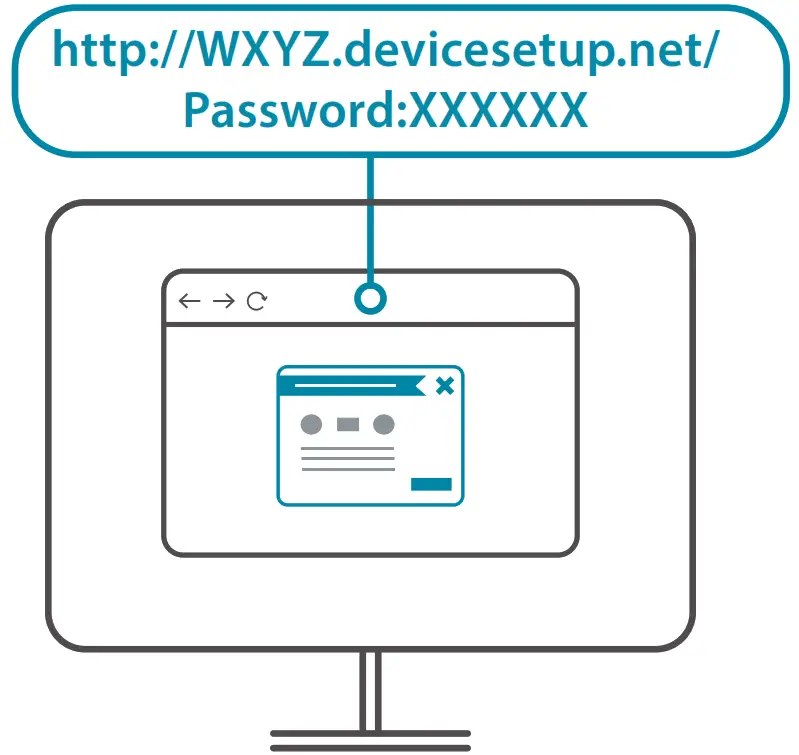

4 / Type http://WXYZ.devicesetup.net/ into the address bar of a web browser. Follow the on-screen instructions to complete the setup.
ENJOY!
You’re all good to go! Connect devices to your network using the Wi-Fi Name (SSID) and password that you created during the setup process.
Note: Please refer to the User Manual for device-specific LED behavior.

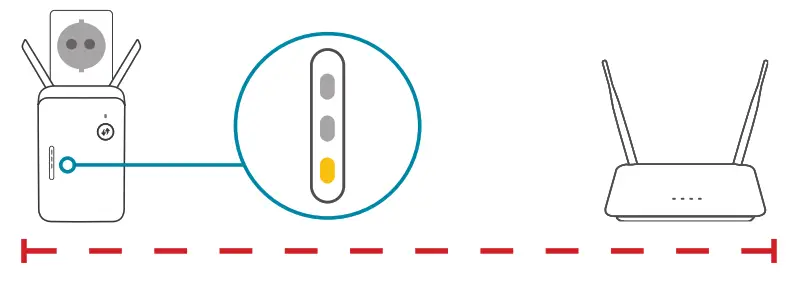

One amber bar indicates a weak signal. Move your extender closer to your router to improve signal quality. Make sure that your extender is placed in an open environment.

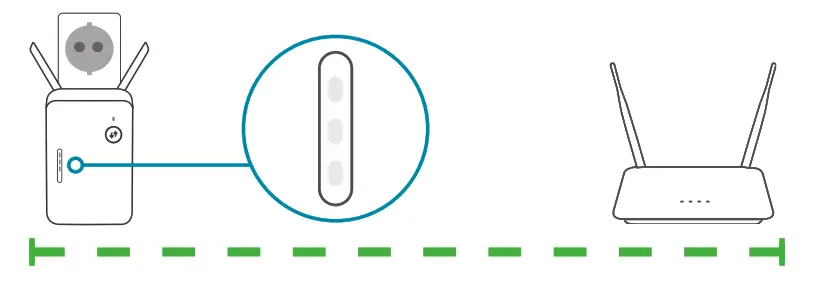

Place the extender in range of your router. Check the LED indicator on your extender to ensure a proper connection. White bars indicate a strong signal.
FREQUENTLY ASKED QUESTIONS
Why can’t I connect to my wireless router or my wireless connection drop?
Verify that your extender is within range of your router. Try plugging it into a location closer to the router and verify the Signal LED is solid White. Note that when extending a wireless signal from a router or access point, devices connected to the extender will not get the same speed/throughput as when connected directly to the router.
How do I change the wireless settings on my extender?
To change your Wi-Fi Network Name (SSID) and modify the security (Wi-Fi password), access the wireless settings via:
- The Wi-Fi section in the settings menu of the D-Link Ai app or
- Access the web-based configuration utility > Settings > Extender.
What if I forgot my extender’s Admin password or want to reset my extender?
If you forgot your Admin password or want to reset your extender back to the factory default settings, press and hold the reset button on the bottom of the extender using a paper clip and release after a minimum of 10 seconds. The Status LED will turn red.
For technical support, product documentation and other information, please visit our website.
Ver.1.00(EU) 2021/03/04
