Bench Scale Installation Guide
Model no. 412663, 412664, 412665, 412666, 412667

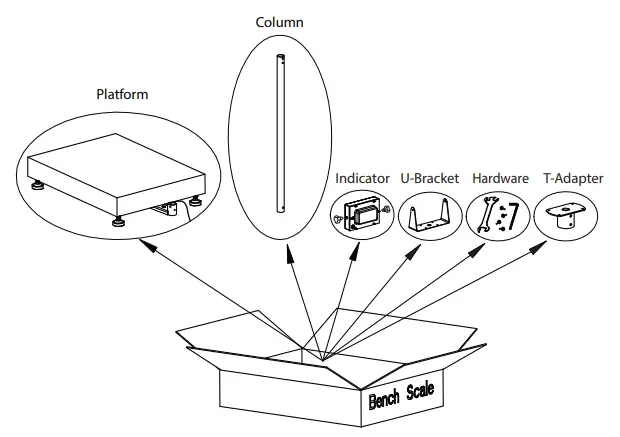

412663 TEP Bench Scale LCD Display

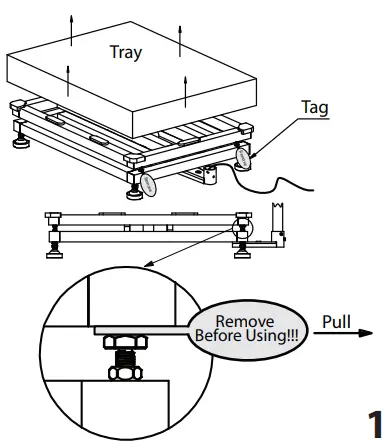

Lift tray, and remove the four yellow rubber frame protectors tags

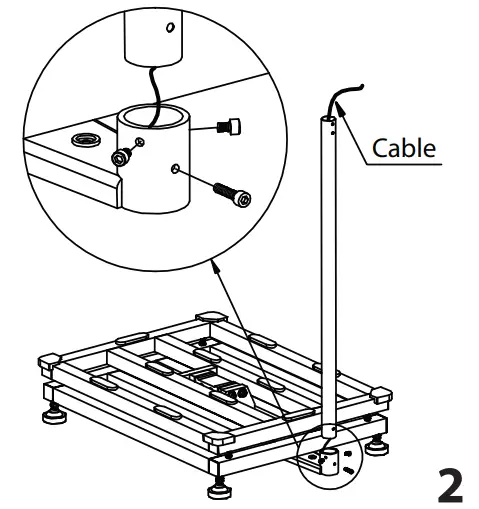

Carefully, without tugging, run the cable through the column and assemble column to base

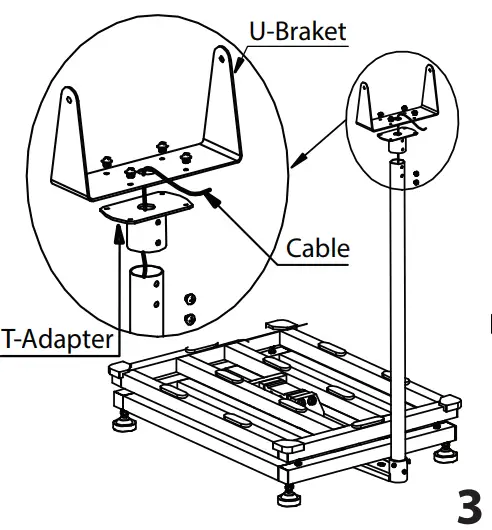

Assemble T-Adapter and U-bracket as shown below

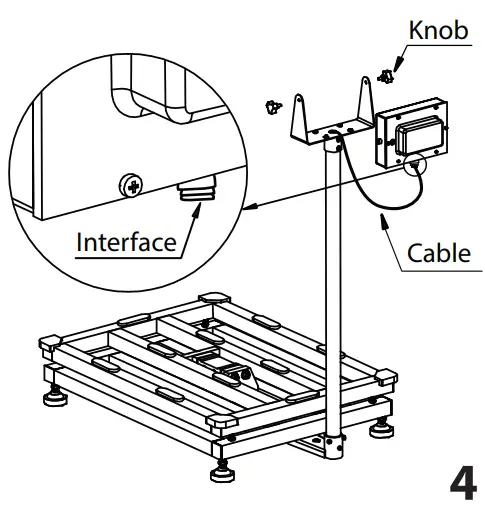

Install indicator to U bracket with 2 knobs and connect the cable to the indicator interface port

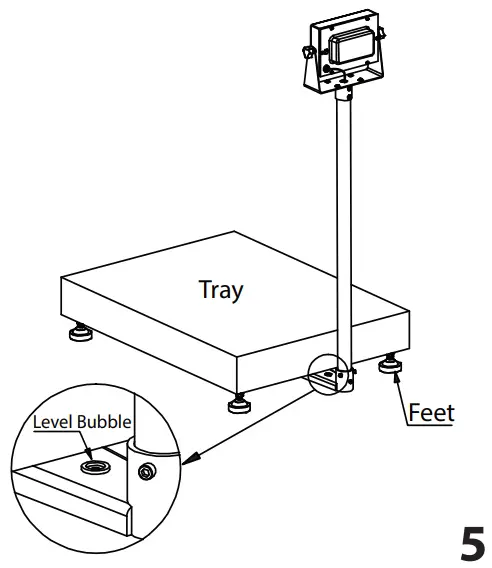

Place the tray on the scale frame; Use level bubble to level the scale by adjusting the feet
