VIVIOTEK FD9391-EHTV-v2 Network Camera Installation Guide
Warning Before Installation / Warnung vor der Installation / Waarschuwing voor installatie.
- Power off the Network Camera as soon as smoke or unusual odors are detected.
- Do not place the Network Camera on unsteady surfaces.
- Do not insert sharp or tiny objects into the Network Camera.
- Replacing or failing to properly install the waterproof components, e.g., cables or cable glands, will void our IP65/66/67 warranty.
- Avoid storage and installation of the network camera in extremely humid environments. If condensation forms inside the network camera, allow the condensation to dissipate for a few hours before installing.
- Refer to your user’s manual for the operating temperature.
- Do not touch the Network Camera during a lightning storm.
- Do not drop the Network Camera.

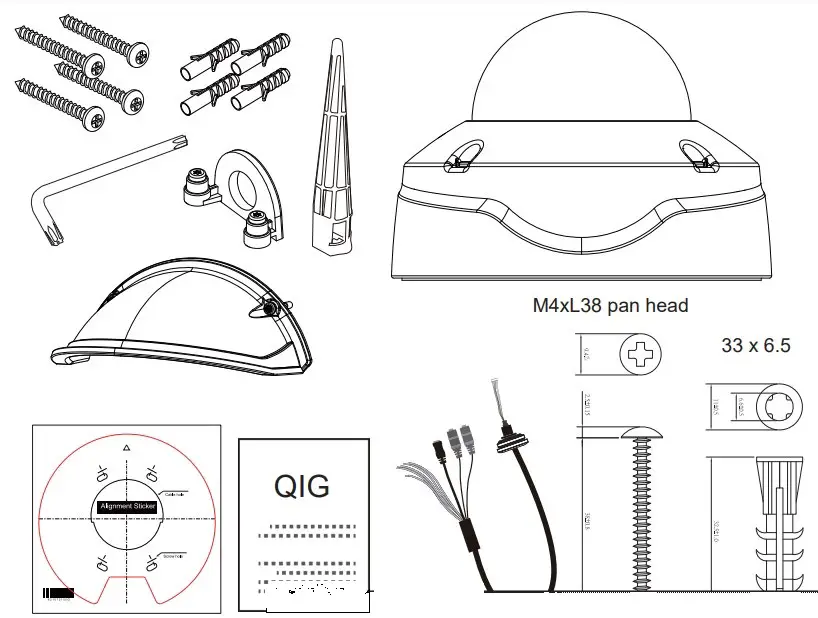

Package Contents
| Consumption & Power Input FD9391-EHTV-v2 | FD9391-EHTV-v2 | FD9365-EHTV-v2 | ||
| s 4 – 42V/0.31A 13.02W, | ||||
| 57V/0.25A 1 | 4F.D2953W65-(EPHoTEV-mv2idspan or | 57V/0.23A 13.11W | (PoE midspan or endspan) | |
| PoE 802.3at Class 4 – 42V/ 57V/0.25A 14.25W (PoEendspan) | 0e.3n4dAsp1a4n.)28W, | PoE 802.3at Class 4 – 42 | V/0.31A 13.02W, | |
| DmCid12sVpa–n14o.r4 AC 24V – 11.64 | 05W7V1/0.2.203AA 13.11W (PoE mid W 1.10A | 1. AC 24V – 10.79W 1. | 16A00A | |
| DC 12V – 14.40W 1.20AAC 24V – 11.64W 1.10A | DC 12V – 14.00W 1.16AAC 24V – 10.79W 1.00A | |||

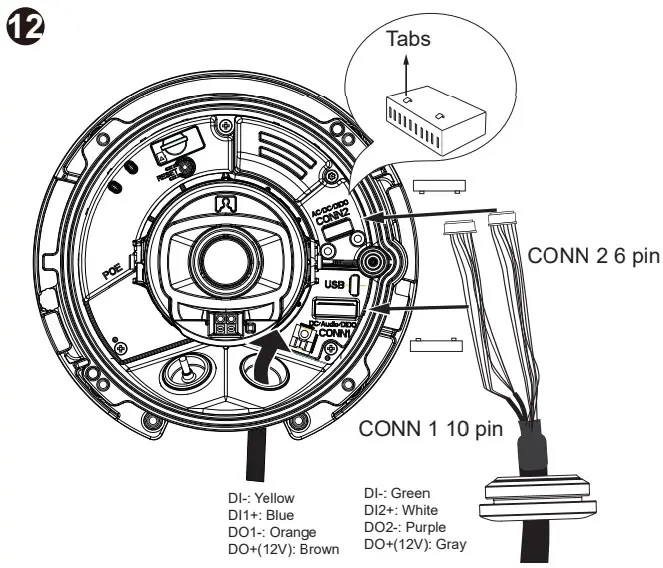

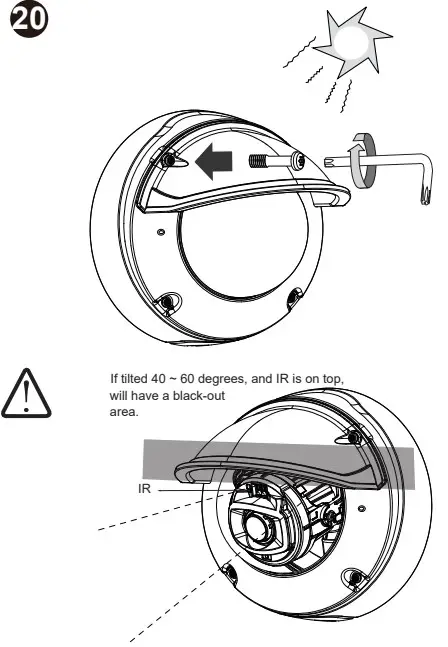

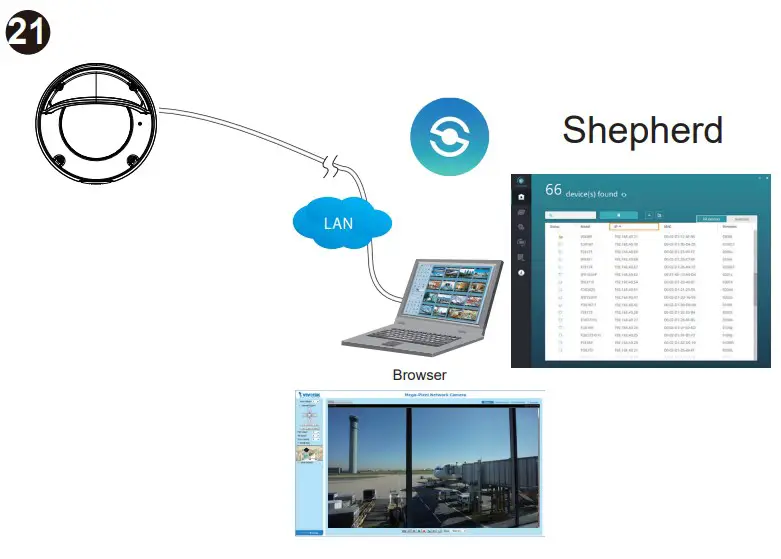

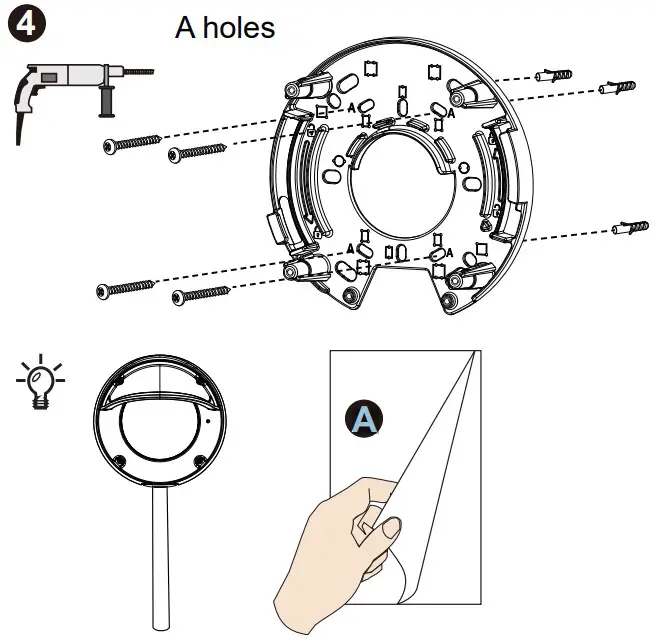

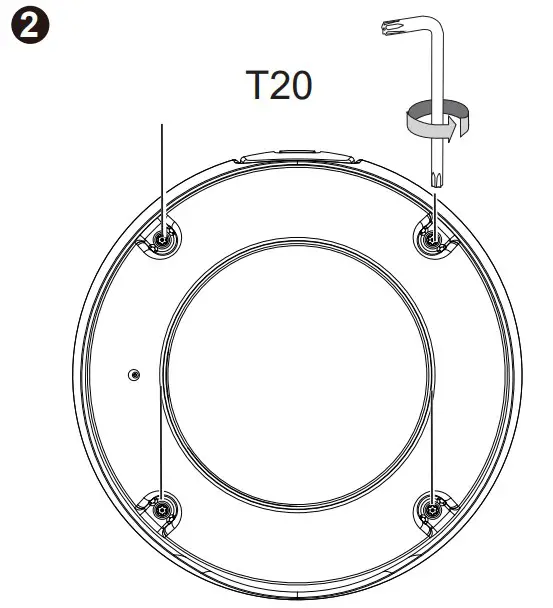

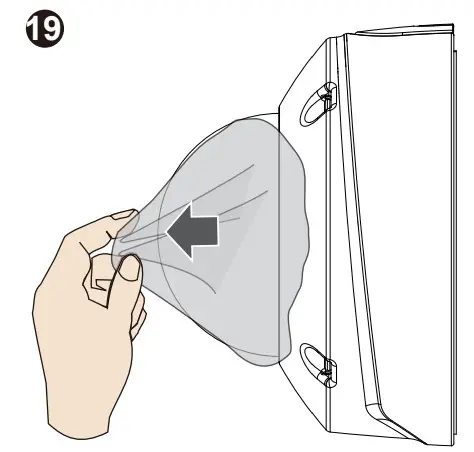

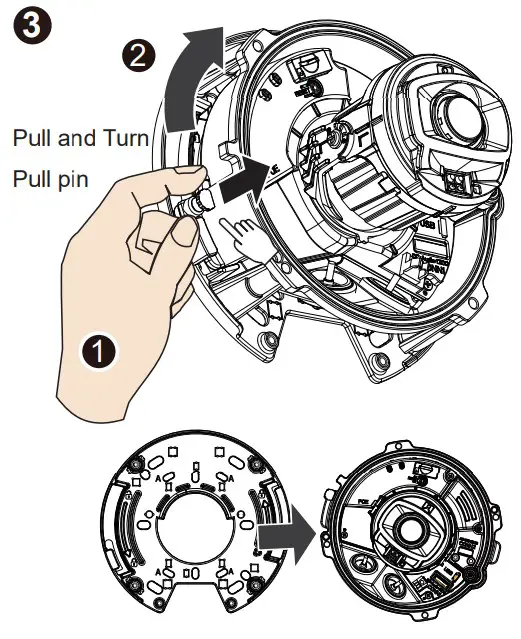

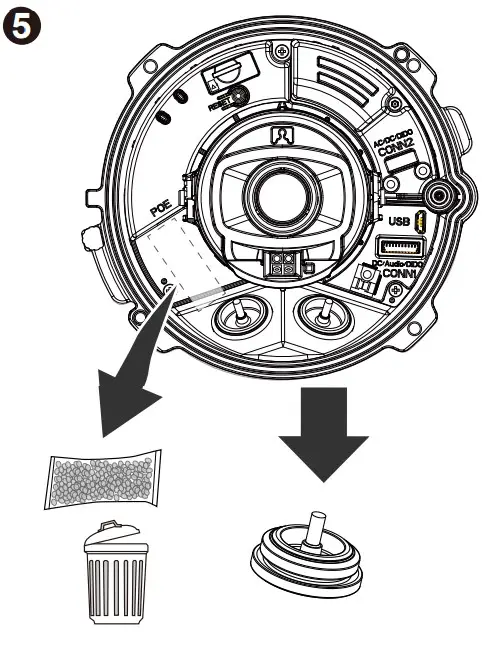

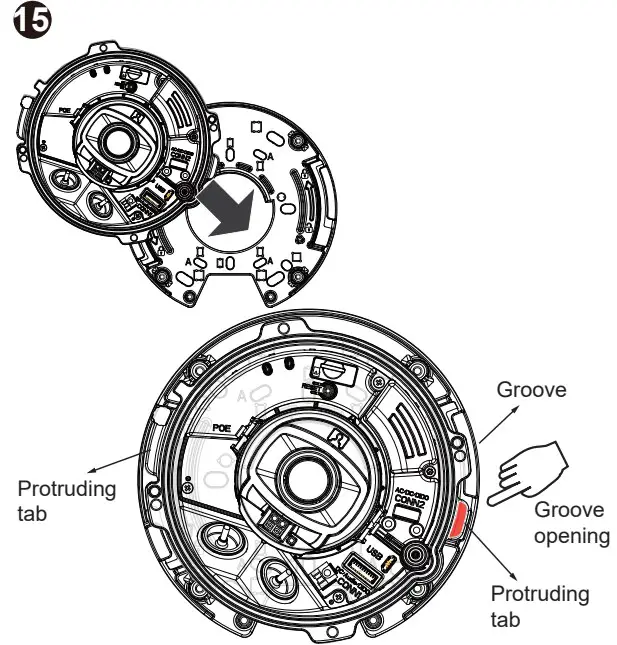

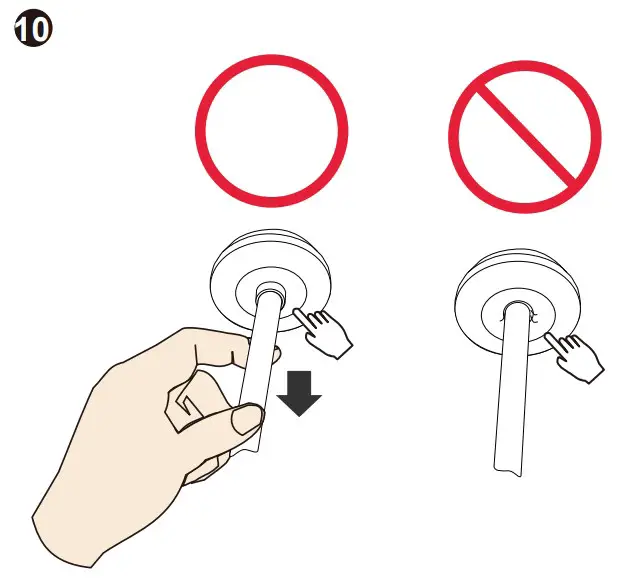

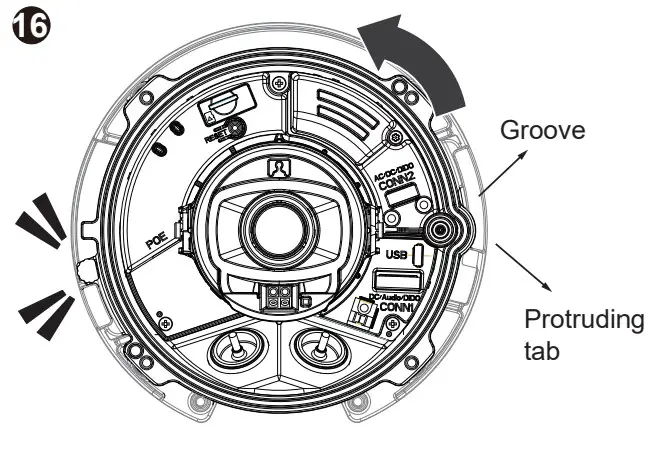

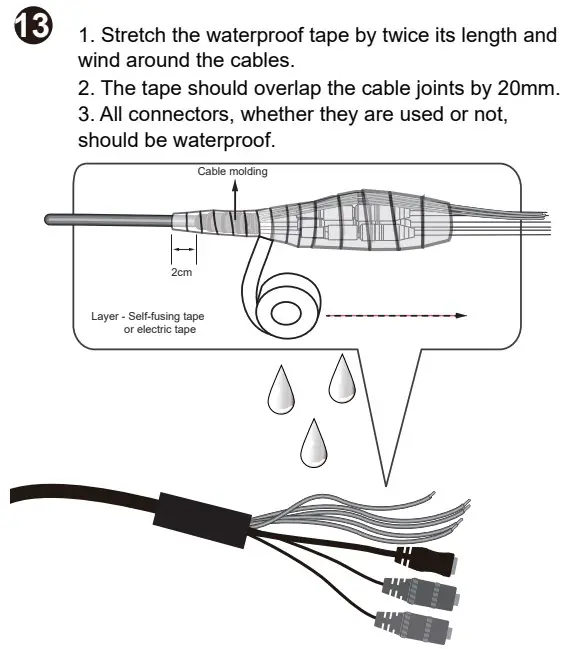

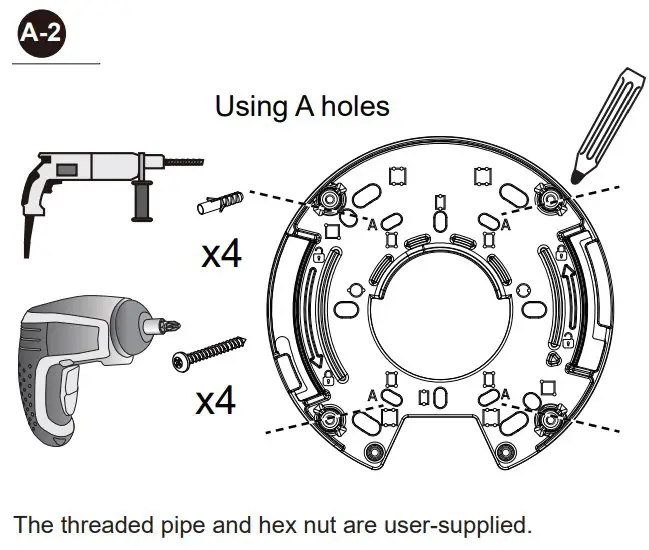

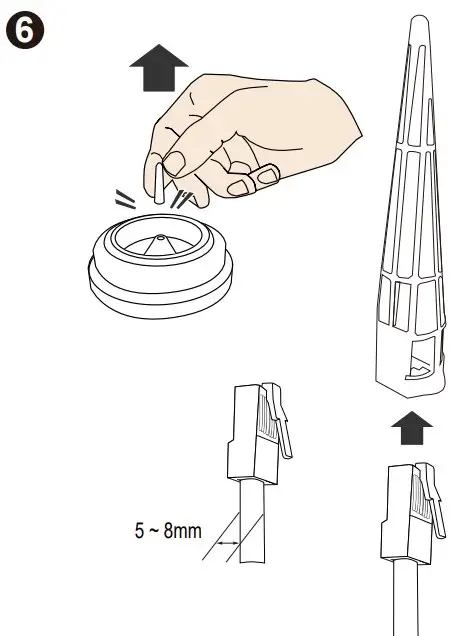

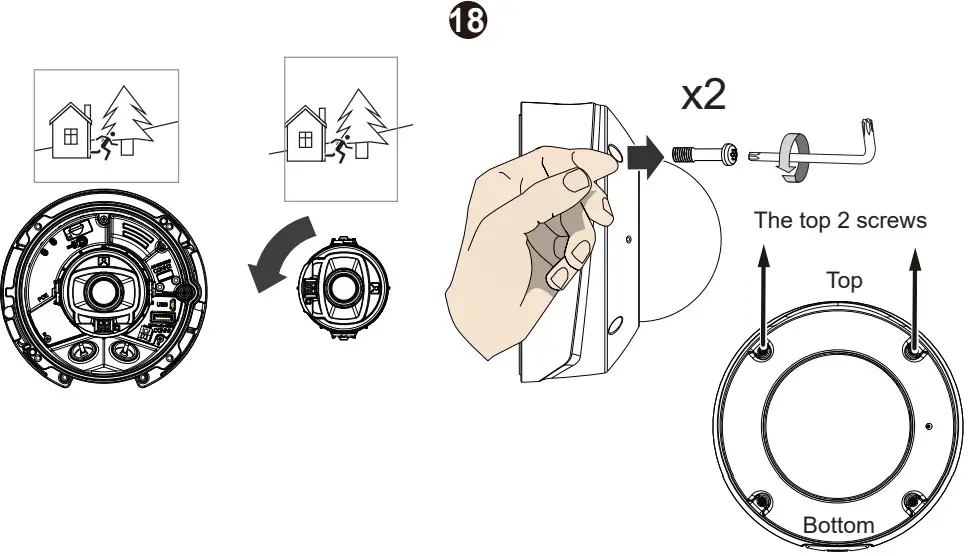

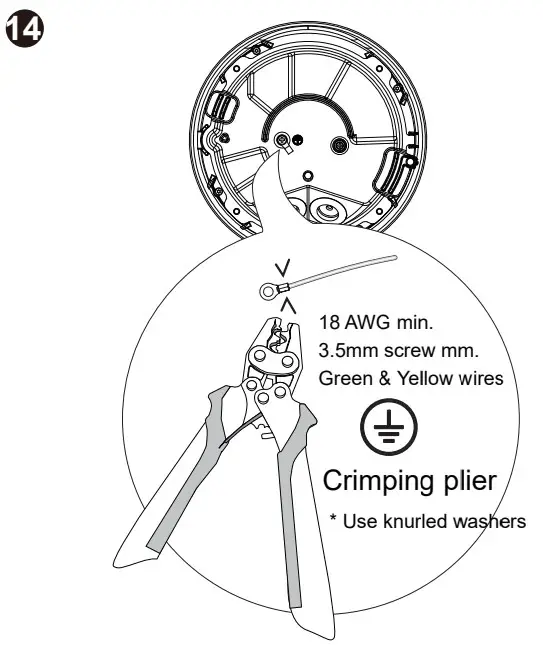

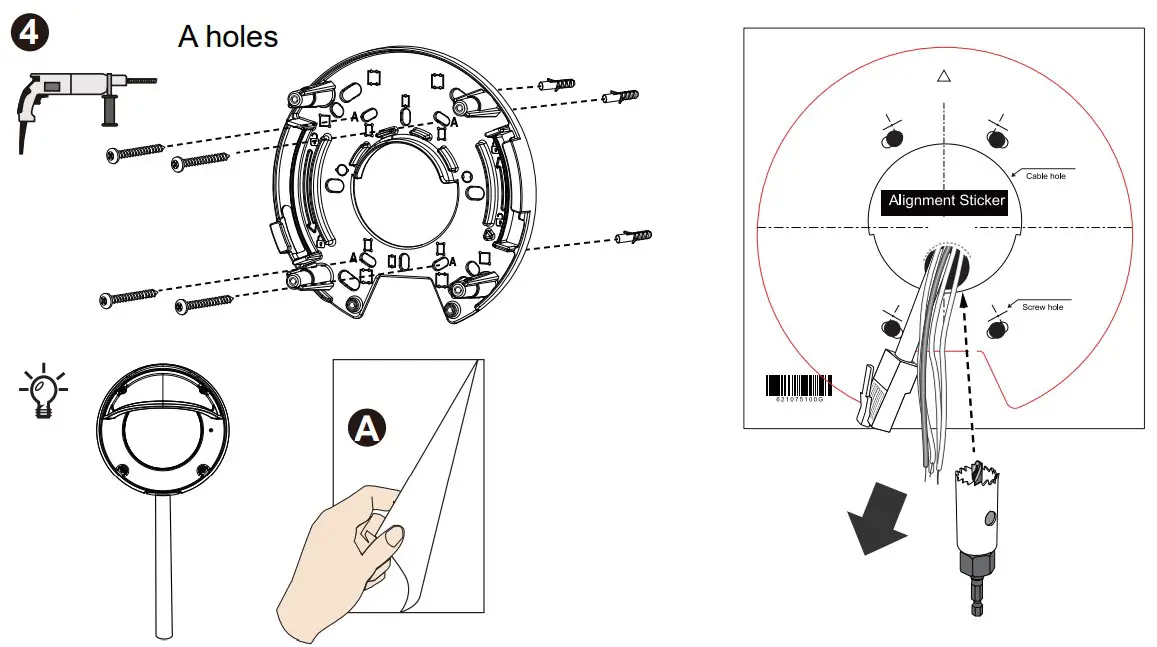

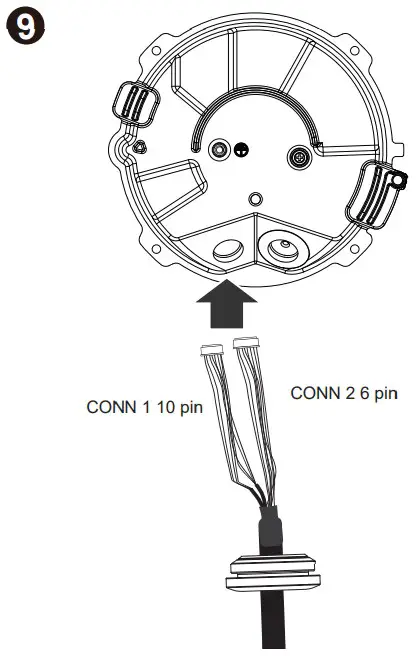

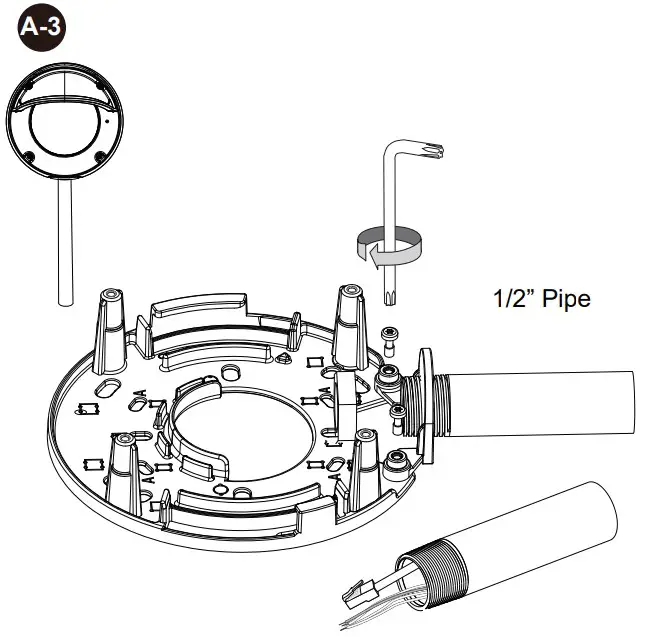

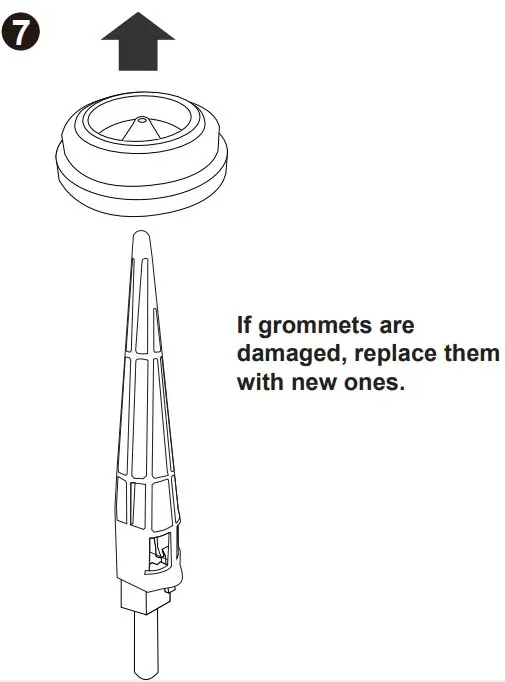

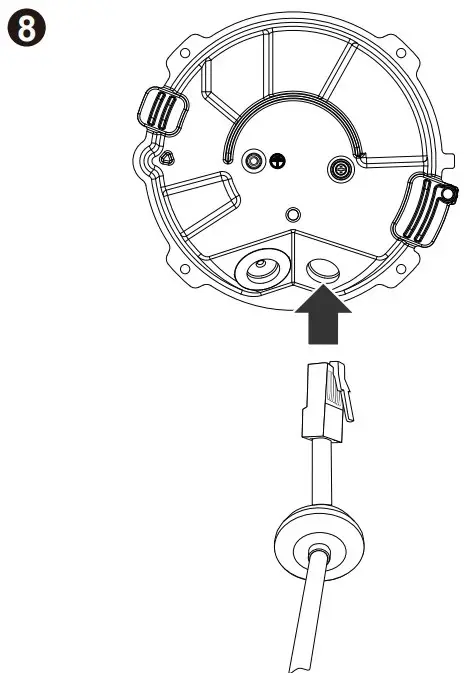

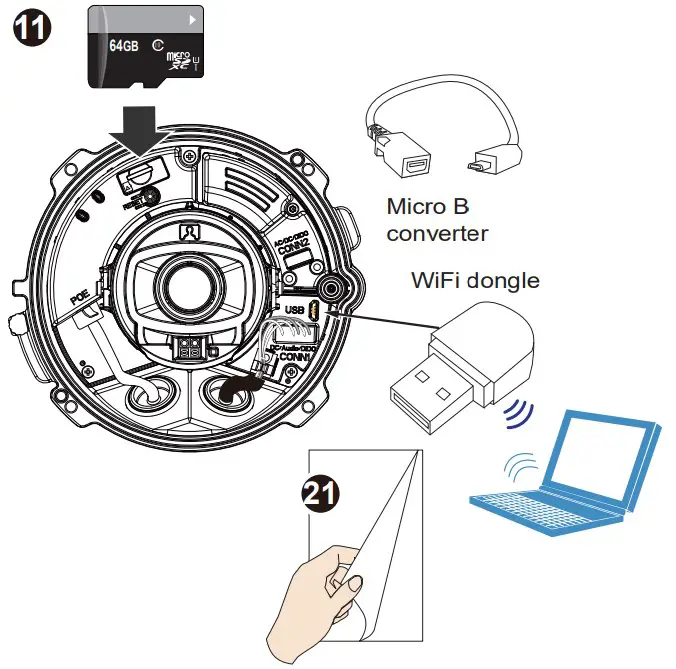

Hardware Installation
Costumer Support
Please contact authorized distributors for warranty and RMA service.
Visit https://www.vivotek.com/support/warranty-rma
All specifications are subject to change without noice. Copyright © 2022 VIVOTEK INC. All rights reserv
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T: +886-2-82455282| F: +886-2-82455532| E: [email protected]
VIVOTEK USA, INC.
2050 Ringwood Avenue, San Jose, CA 95131
|T: 408-773-8686| F: 408-773-8298| E: [email protected]
VIVOTEK Europe
Zandsteen 15, 2132 MZ Hoofddorp Delta Electronics
T: +31 (0)20 800 3817 E: [email protected]
