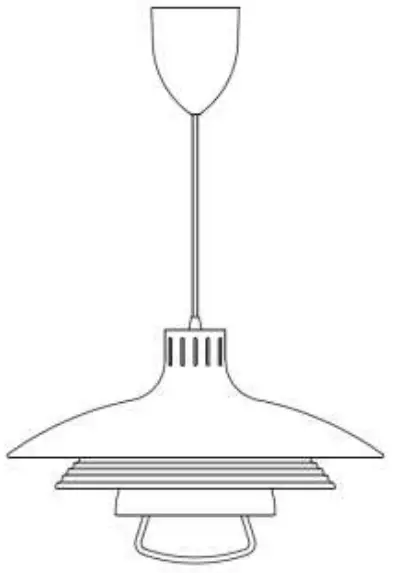

User manual
House Stockholm
Rise & Fall
Ceiling pendant
IL4277
Thank you for purchasing this House Stockholm rise & fall ceiling pendant. Please read the instructions carefully before use to ensure safe and satisfactory operations of this product.
Warnings!
For your safety, this product must be installed in accordance with local Building Regulations.
If in any doubt, or where required by the law, consult a competent person who is registered with an electrical self-certification scheme. Further information is available online or by phone at your Local Authority.
To prevent electric shock, switch off the mains supply before installing or maintaining this product. Ensure other persons cannot restore the electricity supply without your knowledge.
Always use the correct bulb type with the correct wattage as indicated in the specification table. This product is Class =
and should be fitted to a lighting Supply (with earth) protected by a 5 amp fuse or equivalent circuit breaker.
When changing the bulb, always switch off at the mains and allow the old bulb to cool down before handling. Dispose of used bulbs carefully.
Caution! The bulb and surrounding parts can become hot during use.
For indoor use only.
Care instructions
We recommend cleaning with a soft dry cloth. Do not use abrasive materials as these will damage the finish.
Replace bulbs from John Lewis or established brands of the same type and compatibility.

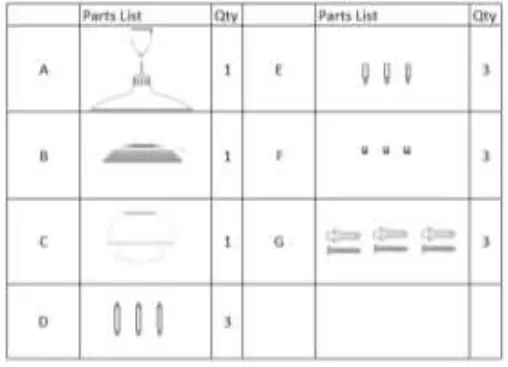

Parts list
Assembly
Never install your appliance on a wet, freshly painted, or plastered surface. Ensure the house electricity supply is switched off at the fuse box. If removing an existing fitting, note down all wiring connections. Check the fixings will not touch any existing wiring before drilling and attaching the light to the ceiling.
Step 1

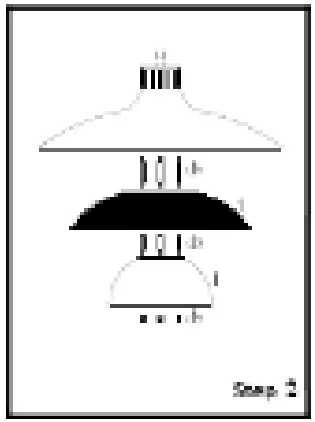

Fit the 3 longest spacing studs (D) to the inside of the upper shade (A) and screw them into place until tight. Pass the holes in the center
shade (B) over the spacing studs and attach the 3 x spacing studs (E) to secure in place. Next, pass the holes in the lower shade (C)
over the spacing studs and fit the 3 x finial nuts (F) to secure in place.
Ensure all assembled parts are tight.
Step 2

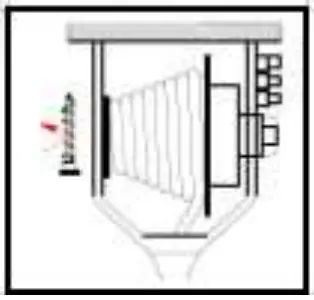

Expose the inner assembly by unscrewing the ceiling cup. Using the top plate as a template, mark and then drill the fixing holes in the
ceiling (ensure the screws are firmly fixed into a solid or other suitable mounting and not just the plasterboard.). Take care not to damage wiring. Attach the assembly to the mounting surface using suitable fixings. Make sure no wires are trapped in the process.
Step 3
Ensuring that the power has been isolated, connect the electrical supply wires to the connector blocks corresponding terminals.
Make the electrical connections as follows:
- Connect the supply live (normally brown or red) to fitting life (embossed “L”) on the terminal block housing.
- Connect the supply neutral (normally blue or black) to fitting neutral (embossed “N”) on the terminal block housing.
- Connect the supply earth (normally green/yellow or unsheathed) to earth (embossed “
”) on terminal block housing.
NOTE: Ensure electrical connections are tight and no loose strands of wire are left out of the connector block.
Step 4

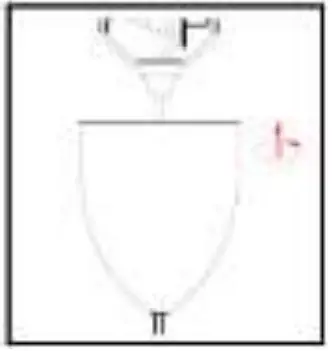

Push the ceiling cup over the rise and fall assembly and rotate to screw onto the top plate until secure. Take care not to overtighten as this may cause damage to the fitting. Ensure all components are straight and aligned during the assembly process.
Fit the bulb, type, and wattage as indicated on the fitting (bulb not supplied). The wattage indicated must not be exceeded. Once the nstallation is complete, the house electricity may be restored at the fuse box.
Height Adjustment: This fitting can be adjusted once installed, simply pull down gently and release when the fitting is at desired height. To raise, simply lift the pendant gently and the cable will retract. If the fitting does not stay in place or retract correctly, the tension can be adjusted by rotating the black knob on the side of the assembly inside the ceiling cup.
Recommended bulb
1 x 9-11 Watt ES energy-efficient LED
or
1 x 28 Watt ES eco halogen Bulb not included
Specification
Max power: 28W
Voltage: 220~240V, 50/60Hz
IP20
Weight 2.7Kg
Please retain these instructions for future reference.
This symbol
indicates that this product should not be treated as normal household waste and it should be recycled. John Lewis does not operate in-store take back, but members of the Distributor Take-Back scheme have funded the development and upgrade of recycling facilities across the UK. Please take it to your nearest collection facility or for further details contact your local council or visit
www.recycle-more.co.uk.
We have taken great care to ensure that this product reaches you in perfect condition. However, should any parts be damaged or missing please e-mail [email protected]
Troubleshooting:
Why is the light not working when switched on?
Check your power supply is switched on Turn off the light and check that the bulb is inserted correctly Check the bulb is still in working order.
