CTSMZ002.2
Mazda Steering Wheel Control Interface
| 2 | 2003> | CX-7 | 2007> |
| 3 | 2004> | Demio | 1998 – 2003 |
| 5 | 2005> | MPV | 1999 – 2004 |
| 6 | 2002> | MX-5 (NB/NC) | 1999> |
| CX-5 | 2012> | Premacy | 1999 – 2004 |
| B-Series | 1999 – 2006 | RX-8 | 2003 – 2010 |
| BT-50 | 2006 – 2009 | Tribute | 2001 – 2004 |
| 626 | 1999 – 2002 | ||
| www.connects2.com |  |

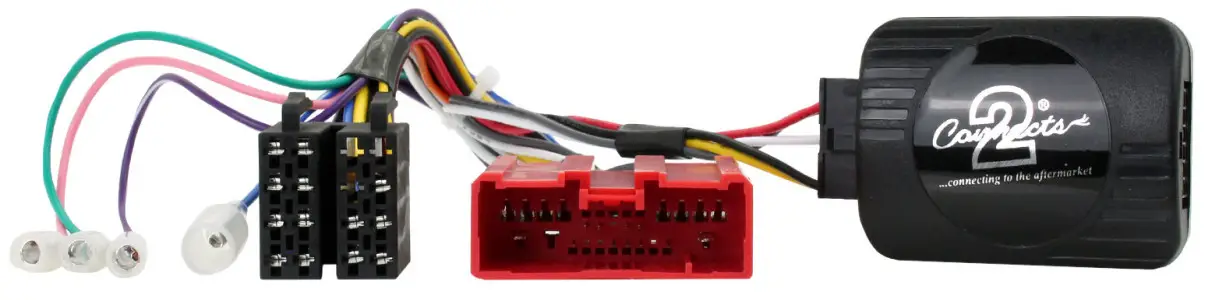

ABOUT THIS PRODUCT…
CTSMZ002.2
Analogue Mazda Steering Wheel Control Interface. Does Not Support Time/Date Change or Temperature Display
Product Contents
- Interface
- Harness
- Instruction
Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Wire Colour | Function |
| Yellow | Permanent 12V |
| Black | Ground |
| Red | 12V Ignition |
| Orange | Illumination |
| Blue /White | Amp Remote |
| Pink | Speed Pulse |
| Green | Park Brake |
| Purple/White | _ Reverse |
| Purple | Right Rear Speaker + |
| Purple/Black | Right, Rear Speaker – |
| Green | Left Rear Speaker + |
| Green/Black | Left Rear Speaker – |
| Grey | Right Front Speaker + |
| Grey/Black | Right, Front Speaker – |
| White | Left Front Speaker + |
| White/Black | Left Front Speaker – |
Technical Support
Connects2 wants to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support center: support.connects2.com
 | Subscribe to our YouTube Channel for installation guides and tips… www.youtube.com/connects2 |
FITTING GUIDE
- Remove and disconnect the original head unit.

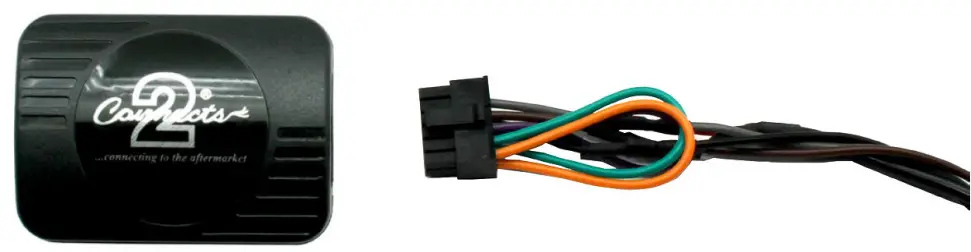

- Connect the 12-way Molex connector of the head unit patch lead (supplied separately) to the interface.

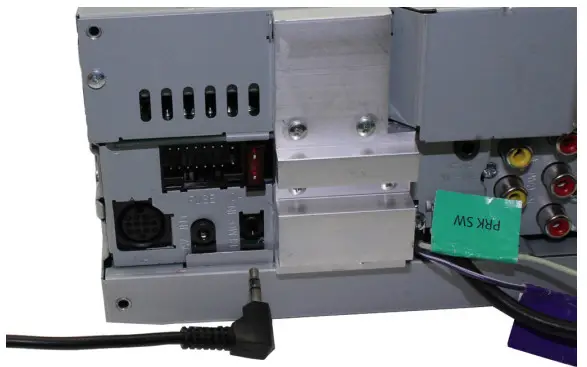

- Connecting the opposite end of the head unit patch leads to the head unit steering wheel control input on the back of the aftermarket head unit. This may be a 3.5mm jack plug or a wired input depending upon the head unit brand being fitted.
Please see the head unit installation manual for further information on where to connect.
Important Note: This step must be completed before connecting power to the interface. Failure to so may result in no steering wheel control function.

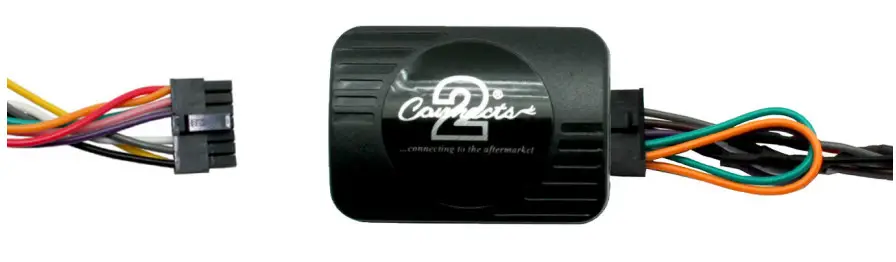

- Connect the 14 way Molex connector to the interface

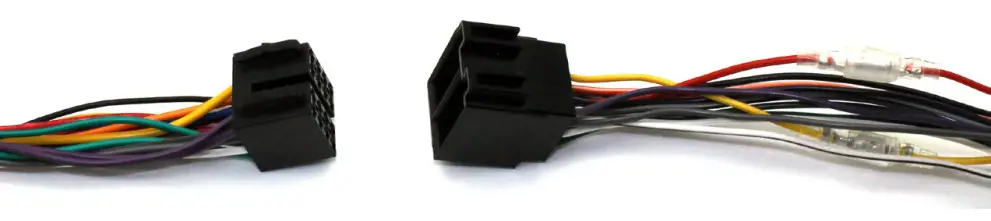

FITTING GUIDE - Connect the male power/speaker ISO harness to the female power/speaker ISO harness from the aftermarket head unit. For aftermarket head units without an ISO connector, please refer to the wiring colors on Pg. 2.
- Connect the female vehicle-specific connector to the male vehicle connector. Test head unit for correct operation.
FITTING GUIDE

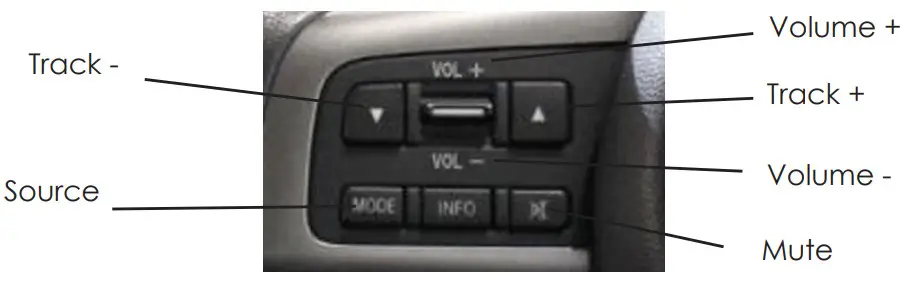

STEERING WHEEL CONTROL FUNCTIONS
