ATS99
Hypercardioid Dynamic Microphone
User Manual
Safety precautions
Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure safety, observe all warnings and cautions while using the product.
Cautions for the product
- Do not subject the product to strong impact to avoid malfunction.
- Do not disassemble, modify or attempt to repair the product.
- Do not handle the product with wet hands to avoid electric shock or injury.
- Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place.
- Do not place the product on an unstable surface to avoid injury or malfunction due to falling or the like.
Notes on use
- Be sure to read the connected device’s user manual before use.
- When the product is used for a long time, the product may become discolored due to ultraviolet light (especially direct sunlight) and wear.
- Make sure to hold the plug when connecting and disconnecting the cable. The cable may become severed or an accident may occur if you pull on the cable itself.
- When using the cable, be careful not to twist it to prevent damage to the cable.
- Do not wind the cable at the base of the plug to prevent a disconnection.
- When plugging the cable into the microphone and the connected device, check that the connector is facing in the correct direction before inserting it straight. Inserting the connector or plug diagonally may cause a malfunction.
- For important recordings, perform a trial recording beforehand to make sure that the sound is recorded correctly.
- Audio-Technica will not be liable in any way for any loss or damage to software or data connected to the product.

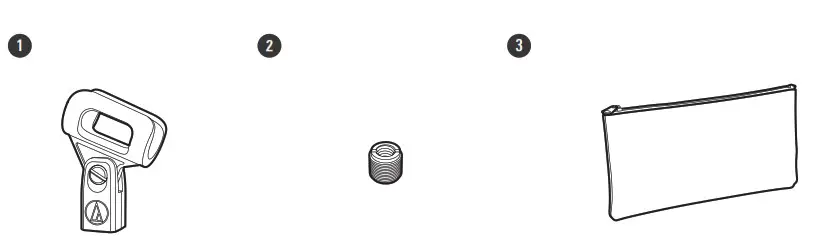

Included accessories
- AT8470 stand clamp for 5/8″-27 threaded stands
- 5/8″-27 to 3/8″-16 threaded adapter
- Pouch

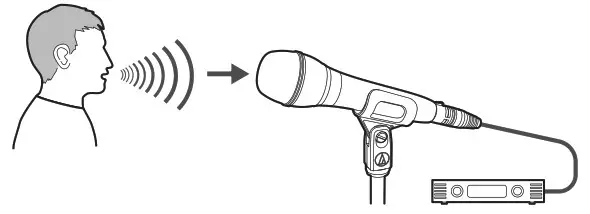

Using the product
- Connect the product to a device with a microphone input (balanced input) for use.
- Use the product with the front part facing the sound source.
Connection procedure

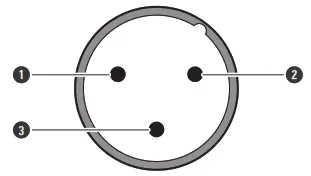

The output connector is an XLR-M type with polarity as shown in the figure below.
- PIN1 (ground)
- PIN2 (hot)
- PIN3 (cold)
Cleaning
Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use alcohol, paint thinners, or other solvents for cleaning purposes.
- Wipe dirt off the product with a dry cloth.
- If the cables become dirty because of sweat, etc., wipe them with a dry cloth immediately after use. Failure to clean the cables may cause them to deteriorate and harden over time, resulting in a malfunction.
If the product will not be used for an extended period of time, store it in a well-ventilated place free from high temperatures and humidity.

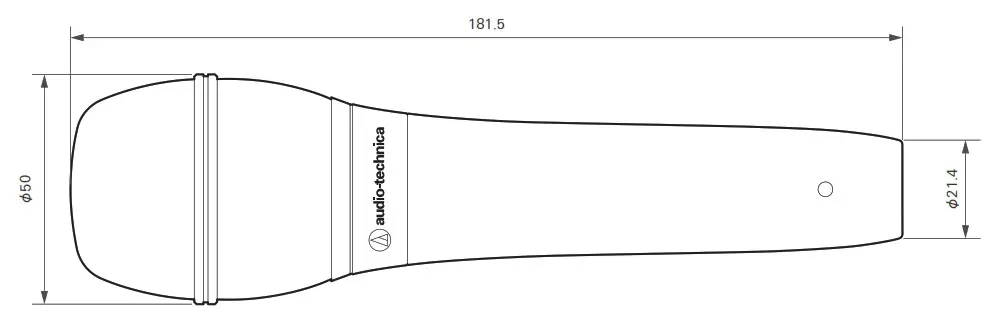

If the product will not be used for an extended period of time, store it in a well-ventilated place free from high temperatures and humidity.Dimensions
Specifications
| Element | Dynamic |
| Polar pattern | Hypercardioid |
| Frequency response | 60 to 16,000 Hz |
| Open circuit sensitivity | -52 dB (0 dB = 1 V/Pa, 1 kHz) |
| Impedance | 600 ohms |
| Weight | 262 g (9.2 oz) |
| Dimensions Output connector | 181.5 mm (7.1”) long, 50 mm (2.0”) maximum body diameter Integral 3-pin XLR-M type |
| Included accessories | AT8470 stand clamp for 5/8”-27 threaded stands, 5/8”-27 to 3/8”-16 threaded adapter, Pouch |
- 1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
- For product improvement, the product is subject to modification without notice.
Polar pattern/Frequency response

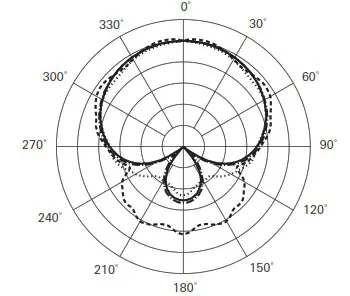

Polar pattern
LEGEND
 200 Hz1 kHz 5 kHz 8 kHz | SCALE IS 5 DECIBELS PER DIVISION |

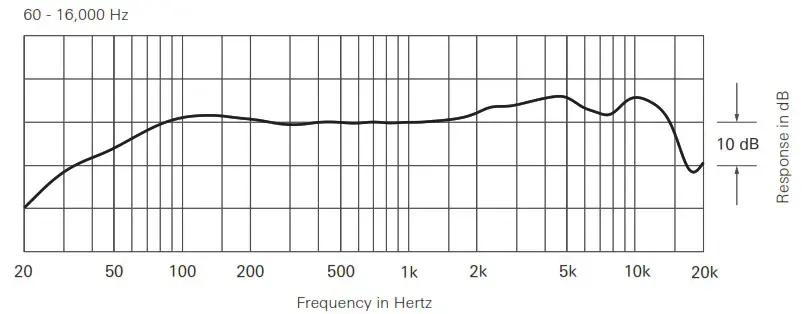

Frequency response
LEGEND
 | 0°, 50 cm |
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
www.audio-technica.com
©2022 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
142420770-02-01 ver.1 2022.11.01
