Polk Audio Db461 4-by-6-inch Coaxial Speakers User Guide

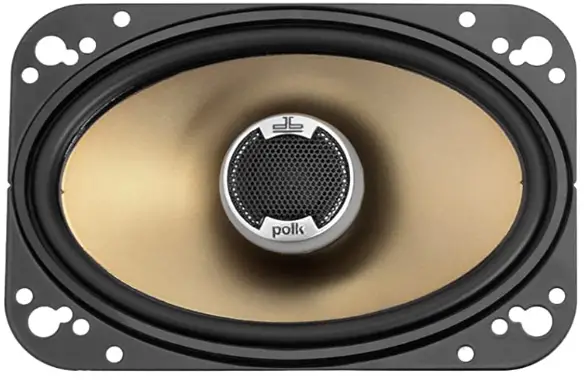

Polk Audio DB461 4-by-6-Inch Coaxial Speakers

Getting Started

Please inspect your loudspeakers carefully. Notify your Polk Audio dealer if you notice any damage or missing items.
Keep the carton and packing material; this will do the best job of protecting your loudspeakers if they must be transported.

Safe Limits of Operation

Damage to loudspeakers can occur when an amplifier, regardless of its wattage, is made to play at higher listening levels than it can produce at low distortion levels. This is usually beyond the “noon or 1 o’clock” position on the volume control. Operation at this level can result in very high levels of audible distortion originating in the amplifier, which can add a harsh,  gritty sound to your listening material. Contrary to popular belief, a loudspeaker is more likely to be damaged by trying to gettoo much volume from a low-powered amplifier or receiver than from a high-powered one.

Technical Assistance or Service

If, after following the hookup directions, you experience difficulty, please double-check all wire connections. Should you isolate the problem to the loudspeaker, contact the authorized Polk Audio dealer where you made your purchase, or contact Polk Audio Customer Service at 800-377-7655 (M-F, 9-6 EST, US only) or via email at [email protected]. Outside the US,call 410-358-3600.
More detailed information—including audio how-to articles, FAQs, and online manuals—is available on our award-winning website www.polkaudio.com/car.

INSTALLATION

1. Coaxial speaker

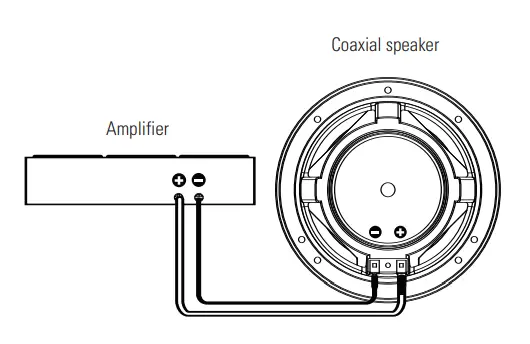

   BASIC COAXIAL CONNECTION

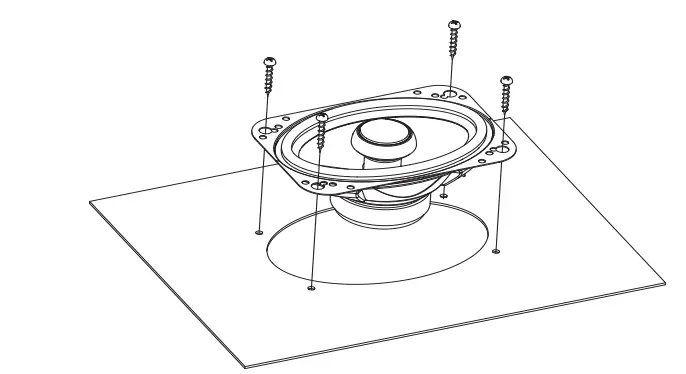

2. INSTALLING db461, db461p, db571, OVAL MODELS

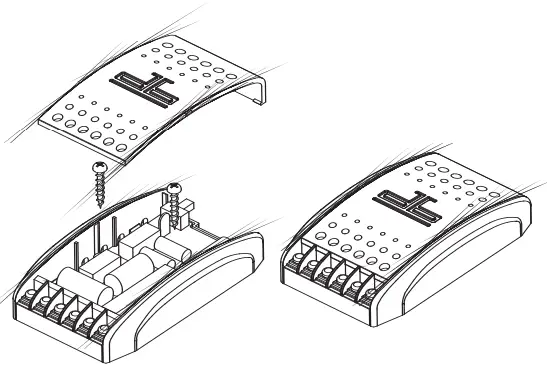

3. CROSSOVER MOUNTING Allows for ventilation clearance

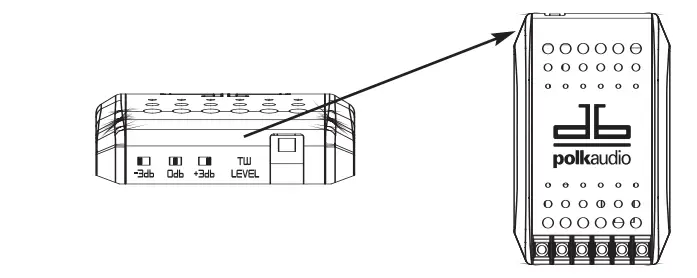

4. TWEETER ATTENUATION SWITCH
   A 3-position switch (-3dB, 0dB, +3dB ) allows you to adjust tweeter level for the tonal balance that’s right for your car and system.
5. TWEETER ATTENUATION WIRE LOOP Cut this wire to reduce tweeter level 3dB.

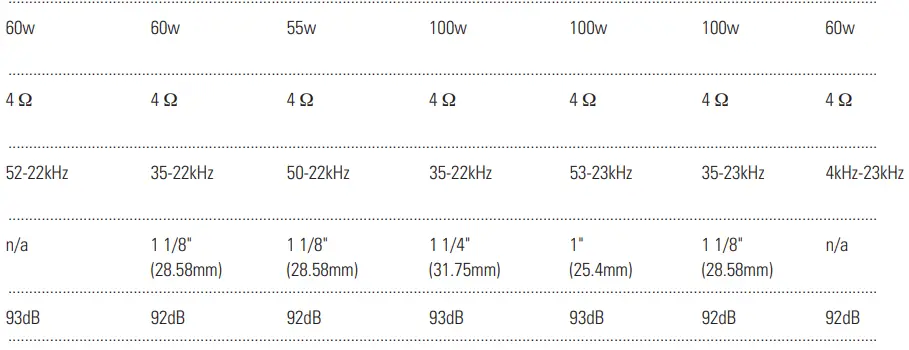

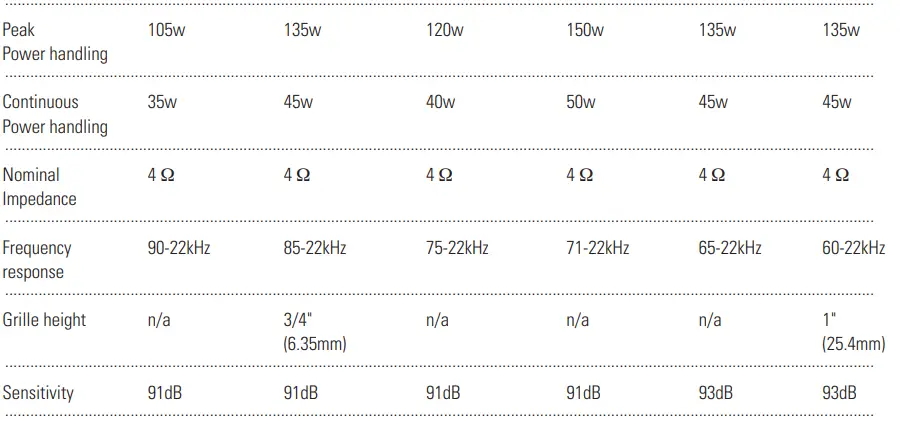

db Series Full Range/Component Systems Specifications

1 YEAR WARRANTY

Polk Audio, Inc. warrants to the original purchaser only that this Polk Audio db Product (the Product) will be free from defects in materials and workmanship for a period of (1) one year from the date of original retail purchase from a Polk Audio Authorized Dealer. However, this warranty will automatically terminate prior to the expiration of the (1) one year period if the original retail purchaser sells or otherwise transfers the Product to any other
party. The original retail purchaser shall herein after be referred to as “you.” To allow Polk Audio to offer the best possible warranty service, please fill out the Product Registration Card(s) and send them to the Factory at the address provided in the Registration Card within (10) ten days of the date of purchase. Defective Products must be shipped, together with a proof of purchase, prepaid insured to the Authorized Polk Audio Dealer from whom you purchased the Product, or to 2550 Brittania Blvd., Suite A, San Diego, CA 92154.

Products must be shipped in the original shipping container or its equivalent; in any case the risk of loss or damage in transit is to be borne by you. If, upon examination at the Factory or Polk Audio Authorized Dealer it  is determined that the unit was defective in materials or workmanship at any time during the Warranty period, Polk Audio or the Polk Audio Dealer will, at its option, repair or replace this Product at no additional charge, except as set forth below. All replaced parts and Products become property of Polk Audio. Products replaced or repaired under this Warranty will be returned to you, within a reasonable time, freight prepaid.
This Warranty does not include service or parts to repair damage caused by accident, disaster, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage inputs in excess of the rated maximum of the unit, cosmetic appearance of the cabinetry not directly attributable to defects in materials or workmanship, or service, repair, or modifications of the Product which has not been authorized or approved by Polk Audio.

This Warranty is in lieu of all other expressed Warranties. If this Product is defective in materials and workmanship as warranted above, your sole remedy shall be repair or replacement as provided above. In no event will Polk Audio, Inc. be liable to you for any incidental or consequential damages arising out of the use or inability to use the Product, even if Polk Audio, Inc. or a Polk Audio Dealer has been advised of the possibility of such damages, or any other claim by any other party. Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you. This Warranty gives you specific legal rights which may vary from state to state.
This warranty applies only to Products purchased in the United States of America, its possessions, and U.S. and NATO armed forces exchanges and audio clubs. The Warranty terms and conditions applicable to Products purchased in other countries are available from the Polk Audio Authorized Distributors in such countries.

More Info @www.polkaudio.com/car

FAQS

Do i need a wire harness or do these come with adapters
