DANCOVER ST18130 Storage Shelter PRO

Safety Advice

Attention

• In some countries approval is needed to set up a tent larger than 75 m2. It is your responsibility to comply with local rules and regulations and to ensure that the tent is assembled correctly.
• In case of bad weather conditions, it is your responsibility to ensure the tent is safely secured and that the tent does not cause damage to others.
• Do not use open fire, welding equipment or other sources which can ignite, inside or close to the tent.
• The tent must be safely secured. We recommend you secure your tent with straps and pegs as soon as it is assembled.
• Make sure to check if the tent is covered by your home contents insurance.
• Tents must be evacuated under extreme weather conditions.
• In the event of snow, always remove snow from the roof of the tent regularly to prevent snow from building on the roof, as heavy snow can cause the tent to collapse.
• In the event of rain, there is a risk of rain puddles building up on top of the roof of the tent. Heavy rain puddles can cause the roof to collapse. It is your responsibility to ensure rain puddles do not build up. As a precaution, make sure the roof of the tent is stretched out properly and adequately over the side frames of the tent and remove rain water regularly.
• Do not unpack or repack your tent in freezing temperatures. In case of temperatures below zero, always unpack and repack your tent indoors to avoid the risk of cracking parts.
• The tent must be totally dry before you repack and store it to avoid mildew.
• Note: Dancover warranty applies only to the normal use of the Product, normal wear and tear excepted, in accordance with written use instructions or manual. The warranty does not apply to damage caused by accident, abuse, misuse, or modification of the Product.

Warranty Information

Please visit dancovershop.com for information on warranty.
Please always check our website for the latest safety advice and manual.

Warning

1. In order to avoid being rusted by air, oil is covered on the surface of the pipes. Before setting up the tent, please remove the oil carefully first to keep the cover clean.
2. Take note that the tent needs to be handled carefully to avoid damage.
3. Do not force the frames as they may be damage in the process.
4.  Tents are meant as temporary shelter, and must be evacuated under extreme weather conditions.
   Please, select a suitable site for the tent to avoid the damage of underground sprinkler systems, water, gas or electrical lines.

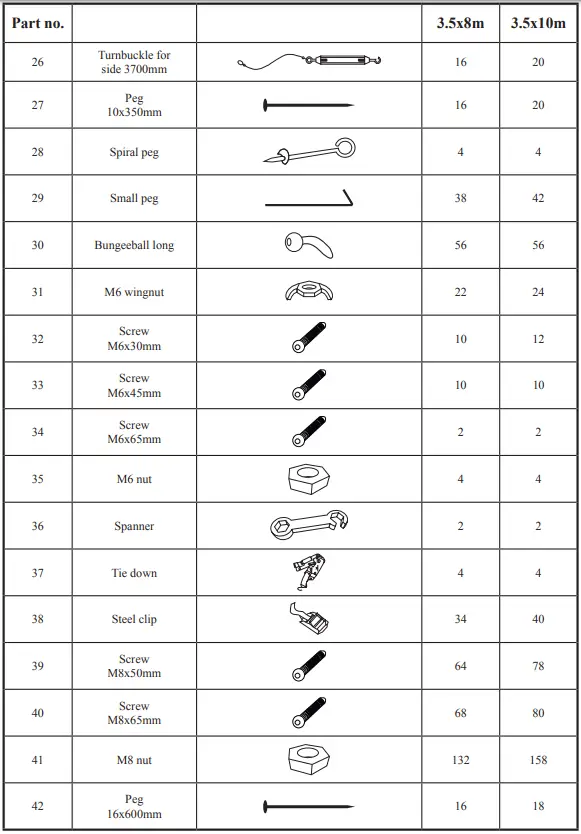

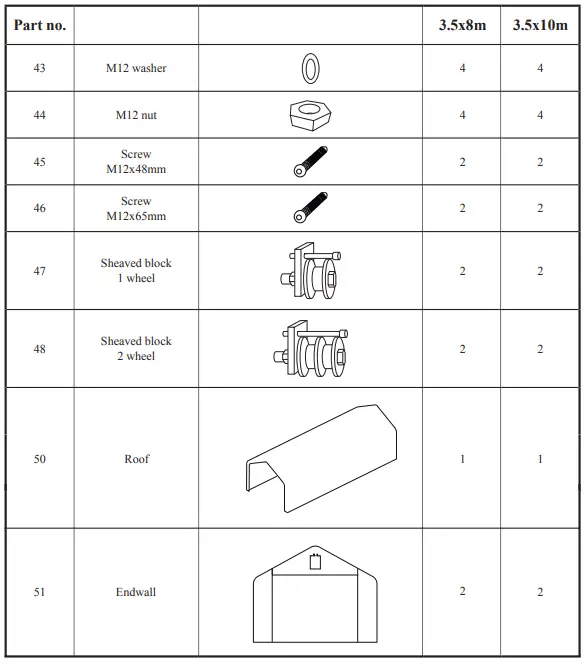

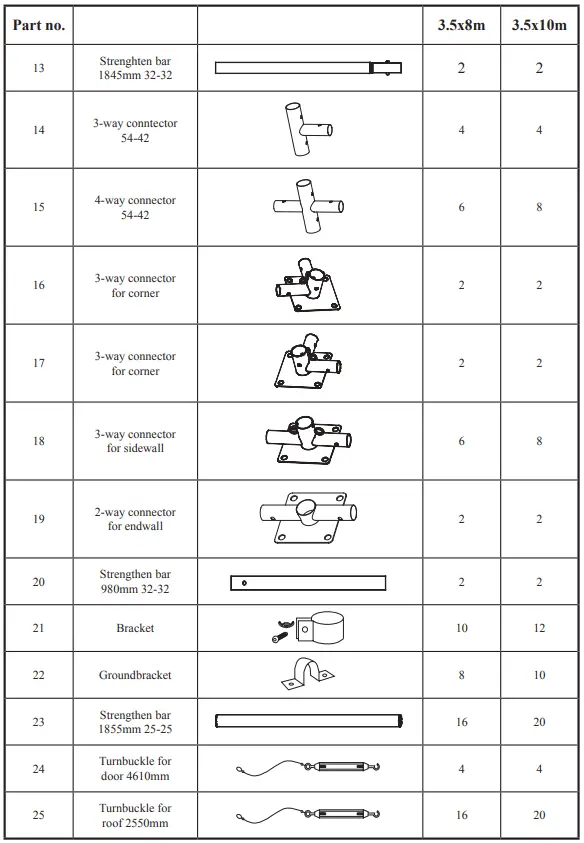

1. Select a flat surtace at ground for the tent, unpack the carton and check all the parts including tubes, tent and accessories.. etc. are present and the same as the list.

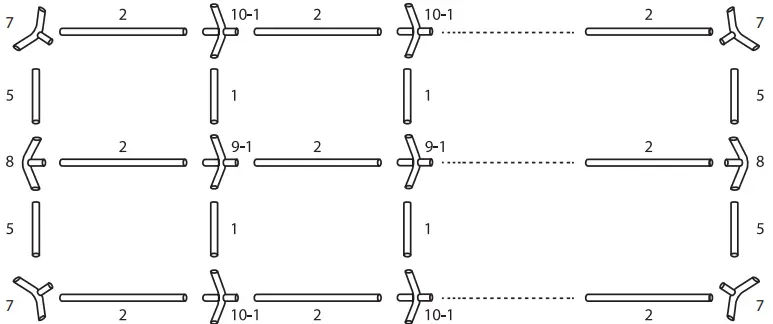

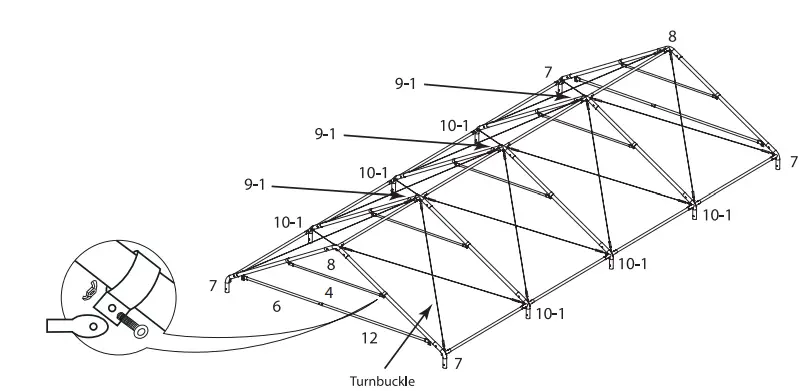

   Assemble the framework of rooftop by joining the portion (7, 8, 9-1, 10-1) together with poles (1, 2,4.5.6. 12) NO. 11 is on four corners for diaconal pipe.



2. To ensure the screw fixed to every pole tightly. And then use the turnbuckle set which is diagonally across through each section as below.

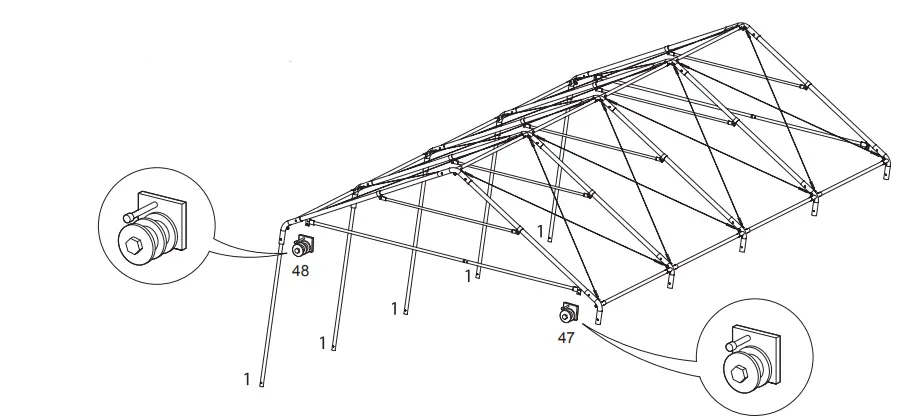

3. Attach one end of supported pole (1) to the joints.

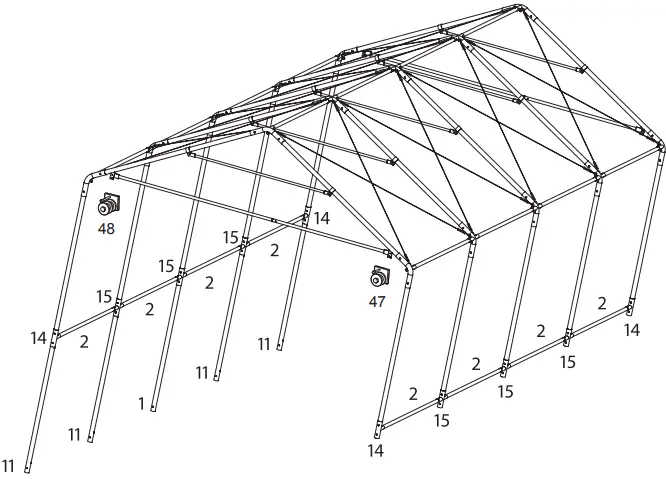

   If you want the rope pull at the opposite side than shown in the drawing then switch sheaved block (47) and (48)

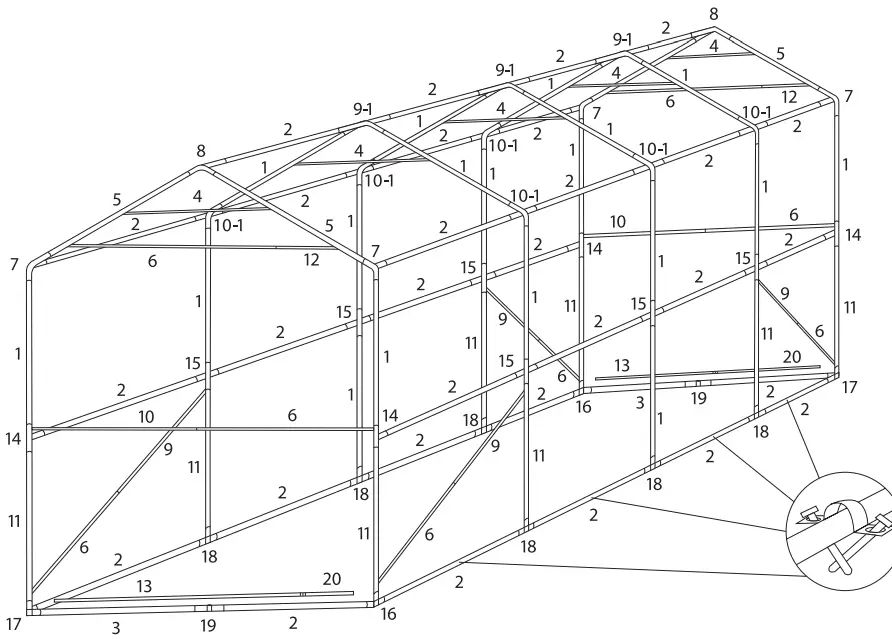

4. Attach the other supported poles (1, 2, 11) to the joints, built-up the framework. NO. 11 is on four corners for diagonal pipe.



5. You facilitate the assembly and dismantling by pulling the roof with ropes on tent frame. Use the steel clips to fasten the cover to the frame. Each section we offer bracket and nail to fasten the frame to ground.



6. Spread the wall panel and door panel attach to framework by using the bangee cords clasping the frame to grommets that is construct over the wall panel and door panel to ensure stability. Also use the short pegs to fix the doors to the ground.
