CRYSTORAMA ORS-733-MG Orson Three Light Ceiling Mount

ASSEMBLY INSTRUCTION

MODEL #ORS-733-MG

WARNING:

All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.

You will need 3 – Candelabra Bulb 40 Watts Recommended 60 Watts Max USE LED BULBS FOR EXTENDED USE This fixture is Dry Rated.

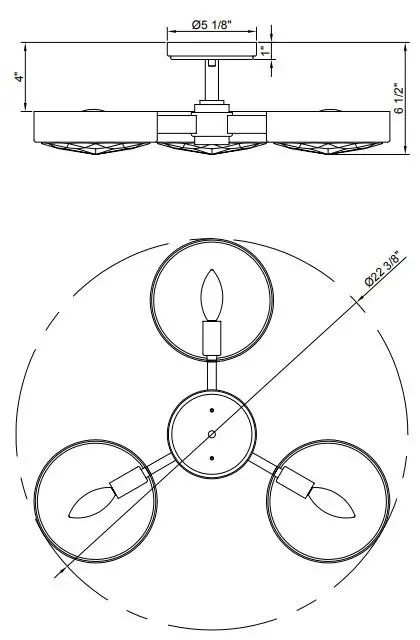

DIMENSION

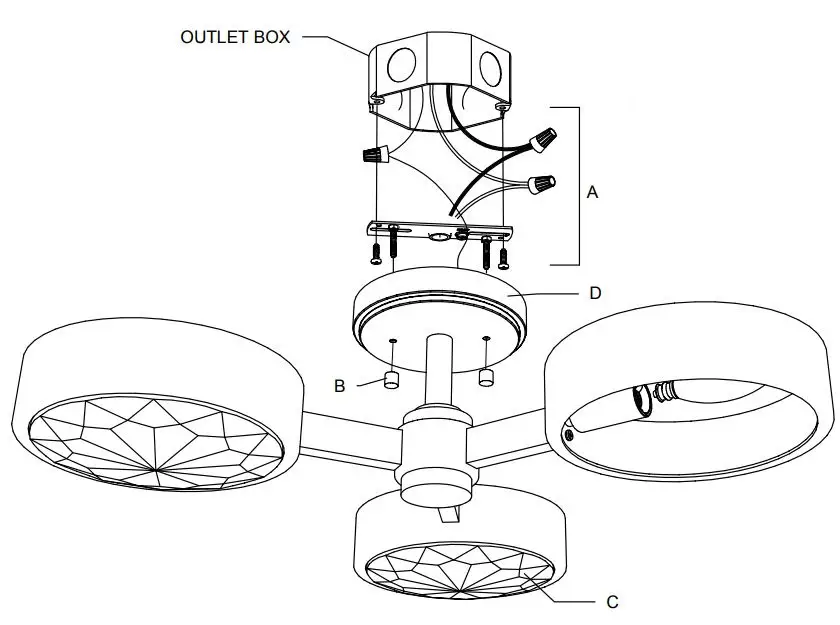

How to Install

1. Attach mounting plate to the outlet box using box screws.
2. Connect the fixture wires to the supply wires.
3. Mount the fixture to the outlet box with ball nuts.
4. Place crystal into the frame.
5. Install the bulb (Not included) in accordance with the fixture’s specifications. (DO NOT EXCEED THE MAXIMUM WATTAGE RATING

WARNING: This product can expose you to Lead which is known to the State of California to cause can and/or birth defects or reproductive harm. For more  information go to www.P65Warnings.ca.gov

Part Numbers

• Mounting Hardware
  • Wire connector
  • Mounting Plate
  • Box Screws
  • Grounding Screw
• (2) – Ball Nut; XVE733MGBANUT
• (3) – Crystal; Ø6-3/4″ x H1″
• (1) – Canopy; Ø5-1/8″ x H1″; XVE733MGCAN5.125IN
