Gewiss Gwj3102a Joinon Wallbox I-con Instruction Manual

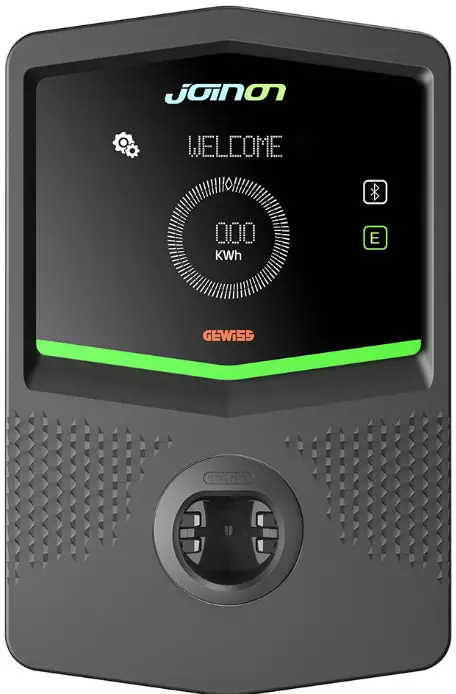

GEWiSS GWJ3102A Joinon Wallbox I-Con

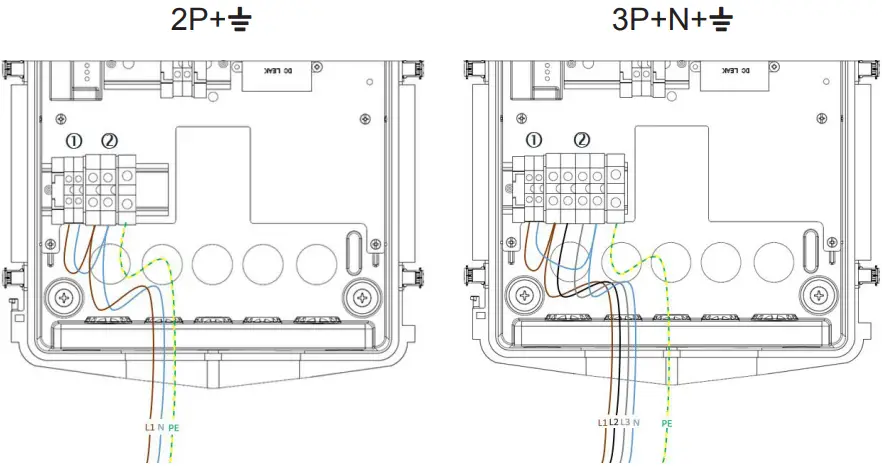

Connecting the power supply cable

The Wallbox has 2 terminal blocks:

• a Electronic board power supply
• b Main power supply

The electronic board can be powered in two different ways:

• a) Via an allocated line allowing a possible power supply from the UPS
• b) Taking L1 and N from the main power supply
