FEATURES

Enhances all available wireless network signals and speeds in a passenger vehicle—car, truck, van, or SUV.
Works on ALL cellular devices with ALL carriers simultaneously.
Enhances cellular talk, text, and high-speed internet.
Requires professional installation.

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

BOOSTS SIGNAL ON ALL AVAILABLE NETWORK SPEEDS
FAST NETWORK SPEEDS
UP TO +50 dB GAIN
MULTI-USER WIRELESS BOOSTER

Kit Includes

Drive Reach Booster
OTR Antenna (311229)

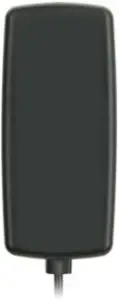

Slim Low-Profile Antenna (314419)
Power Supply (950079)
Mounting Bracket (901104)
Mast Extensions (x2)
Coax Cable Side-Exit Adapter
Antenna Spring
Cable Adapter
Thread Lock Packets

About

The Drive Reach OTR Fleet is weBoost’s most powerful, in-vehicle fleet truck cell phone signal booster yet. Designed to enhance signal coverage for all fleet vehicles (classes 1-8) with a 3-way antenna mount and mast extensions that go up to 40 inches, the OTR outside antenna is all-terrain, all-weather tough and meets current U.S. Military and NEMA IP66 standards.

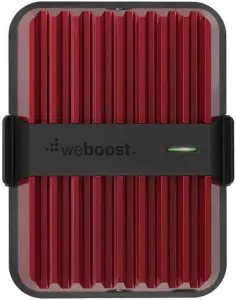

The sleek, metallic red exterior of the Drive Reach isn’t just for show. The unique fin design increases surface area — ensuring peak performance. It reaches up to 74% farther than our next most powerful vehicle booster to efficiently amplify cell signal. With its enhanced cellular coverage, enjoy fewer dropped calls, better voice quality, faster data speeds, and extended battery life.

Drive Reach simultaneously boosts cell signal for multiple users and devices. Professional installation is required for fleet vehicles to get on the road to better signal.

Drive Reach also has a 2-year manufacturer’s warranty and a 30- day money-back guarantee.

Specifications

MODEL NUMBER	471254†
FREQUENCIES	Band 12/17	700 MHz
	Band 13	700 MHz
	Band 5	850 MHz
	Band 4	1700/2100 MHz
	Band 25*/2	1900 MHz
MAX GAIN	50 dB	–
IMPEDANCE	50 Ohm	–
POWER	12V 1.8A	–
CONNECTORS	SMB	–
BOOSTER DIMENSIONS	6 x 4.5 x 1.5 in.	–
BOOSTER WEIGHT	1.80 lbs.

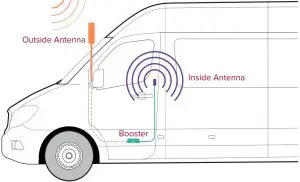

How It Works

Receives signal: The outside antenna picks up cell signal from nearby cell towers.
Boost signal: The booster receives the signal from the outside antenna and amplifies it.
Broadcasts signal: The inside antenna broadcasts the boosted signal to nearby devices.
