Rockpower 200 Portable Power Station
User Guide

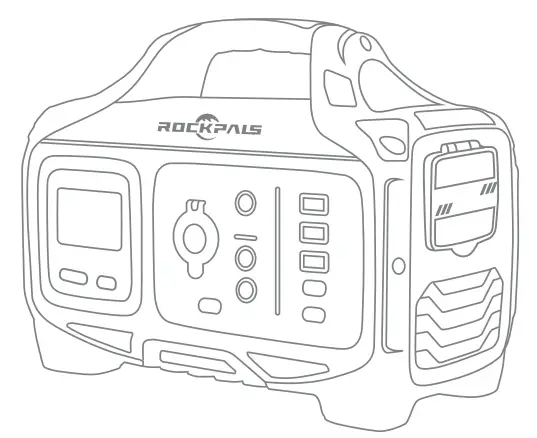

Rock power 200 Portable Power Station
Before using or storing, please read this manual carefully, and charge your Rock power 200 with the included charging adapter

Introduction

Thank you for purchasing Rock power Portable Power Station. Before using or storing, please read this manual carefully, and charge your Rock power 200 with the included charging adapter. If you have any questions or issues, please contact our customer services team for further assistance.
Email: [email protected]
Free Call: (US) (877)-756-8666
Service time: Mon.-Fri. : 9:00-17:00
PST Facebook: @RockpalsOfficials
Website: www.rockpals.com

What’s In The Box

1 x Rock power 200 Portable Power Station
1 x AC Charging Adapter
1 x Car Charger Cable
1 x Warranty Card
1 x Safety Precautions Card
1 x User Guide
1 x Quick Start Card

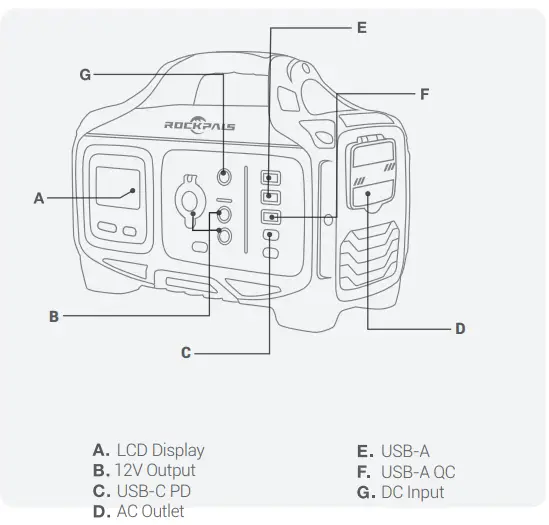

Button Definition

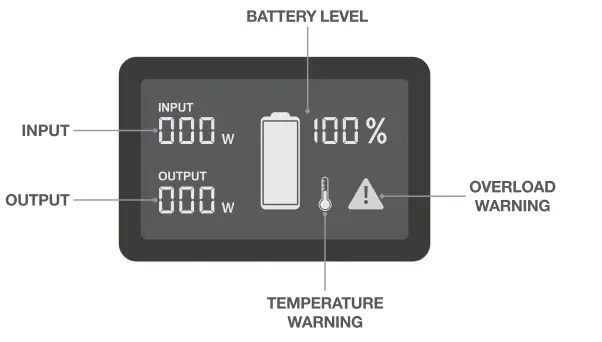

LCD Display

INPUT:	Shows the amount of power (watts) going into the Rock power 200 while charging.
OUTPUT:	Shows the amount of power(watts) your devices are using while plugged into the Rockpower 200
BATTERY LEVEL:	Shows 10 segments, approximating 10%-20%-30% -40%-50%-60%-70%-80%-90%-100% capacity. When charging your Rockpower 200 you will notice a battery segment blinking, this indicates the current charge status. Once fully charged, all battery segments will be lit and remain solid.
OVERLOAD WARNING:	Power draw exceeds port’s maximum allowance, indicated by red light on the port’s button. You need to remove the device in comesponding port first, and then press the button of the port to recover
TEMPERATURE :	The unit is over-heating. Allow it to cool, and then press the main power button to recover

Using Your Rock power 200
Press and hold the main power button for 2 seconds, the power station will be turned on.
Press and hold the 12V/USB/AC button to turn on the corresponding output port(when not using certain ports, make sure to turn them off to conserve power)
You’ll know the output port is turned on when the green LED light on the button is illuminated
Press the “DISPLAY” button to turn on/off the LCD display
Notice:

Please use this power station to power your device at temperatures ranging from -10¥~40¥
Before using, please check whether the power of your device exceeds the output range of this unit. This power station will enter protection mode if the power of your device exceeds the output range

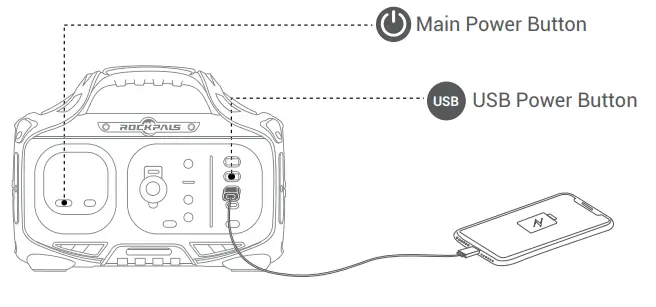

USB OUTPUT

Long press the main power button, and then press the “USB” power button, USB-A, USB-A QC, USB-C PD output will be turned on, the green LED light on the button is illuminated.
Plug your devices into corresponding ports, you will see the amount of power(watts) your devices are using marks on the LCD display

DC Output

Long press the main power button, and then press the “DC” power button, the DC output will be turned on, the green LED light on the button is illuminated.
Plug your devices into corresponding ports, you will see the amount of power(watts) your devices are using marks on the LCD display Main Power Button

AC Output

Long press the main power button, and then long press the “AC” power button, the AC output will be turned on, the green LED light on the button is illuminated.
Open the cover of AC output ports
Plug your devices into corresponding ports, you will see the amount of power(watts) your devices are using marks on the LCD display

What it Powers

As the ambient temperature and battery usage times change, the use time of the power station will change.
Please confirm the power of the device in the instruction manual or catalog of the device.
When the charging specification of the device exceeds the maximum value of this unit, this power station will enter automatic protection mode, the output will be turned off automatically. Before using, please ensure your electronic device is below 200W.

Charging Your Rock power 200

There are the following 3 charging ways

Charging from Solar

Place the solar panels in direct sunlight (we recommend Rock power solar panels)
Please connect the DC output terminal of the solar panel to the charging port of the power station and the LCD display will show the charging status. (Please charge at the temperature range of 0 °C ~ 40 °).
During the charging process, when the battery temperature rises, the cooling fan will automatically turn on to lower the battery temperature.
Remove the charging device from the solar panel and power station after fully charged.

Charging from AC Adapter

Insert the AC adapter into the socket, and then connect the other end to the DC or Type C input charging port of the power station. The LCD display will show the charging status
When it is fully charged, the overcharge protection of the power station will be turned on and the charging automatically disconnected.
During the charging process, when the battery temperature rises, the cooling fan will automatically turn on to lower the battery temperature.
Remove the charging adapter from the power station after fully charged.

Charging from Car Charger(12V/ 24V)

Connect the included car charging cable into the carport.
Connect the other end of the car charging cable to the charging port of the power station, and the LCD display will show the charging status.
When it is fully charged, the overcharge protection of the power station will be turned on and the charging automatically disconnected.
During the charging process, when the battery temperature rises, the cooling fan will automatically turn on to lower the battery temperature.
Remove the charging adapter from the power station after fully charged.

Charging Indication

The battery indicator shows the remaining battery capacity.

The power marquee will be 10%-20%-30%-40%…..100%, displayed in 10 segments. When the battery capacity is below 20%, the power marquee could not show the specific remaining amount of capacity. At this time, please charge as soon as possible; when the battery capacity is below 10%, the power marquee will flash and the AC output will be forced to close. In addition, if you do not use it for a long time, please charge the power supply every three months.

Technical Specifications

Capacity	224.64Wh/62400mAh Lithium-ion
A Size	9.84.77.9inches
Weight	6.31b
An Input	DC input : 15 —3A,45W
An Input	USB-C PD Port: 5V=3A, 9V=3A, 12V-2.5A, 15V-2A, 20V-1.5A
1 x Carport	12V-10A ,120W Max
2 x 5.5mm DC Port	12V-5A,60W Max
AC Output	100-120Vac 60Hz (200W Rated, 300W Peak )
2 x USB Output	5V-3.1A
USB-A QC Port	5V = 3A, 9V=2A
USB-C PD Port	5V-3A, 9V-3A, 12-2.5A, 15V-2A, 20V-1.5A
Cell Type	Lithium-ion Battery
Lifecycles	500
Working Temperature	Charge Temperature: 0°C-40°C Discharge Temperature: -10°C-40°C
Safety Protection	Overheating PrproottectecitoionniOvernCugreuenittProtection, Over Protection

Frequently Asked Questions

Why this power station cannot supply power to other devices (no output)?

Please check whether the power button and output ports of the power station are turned on (there’s no output if the ambient temperature is beyond -10 °C to 40 °C).
Check if the device is completely inserted into the output port of the power station; Whether there is foreign matter at the port of the device and power station.
Please refer to the marquee of the LCD display to confirm the remaining battery capacity of the power station. If it’s less than 10%, the power station needs to be recharged.
Check if the voltage and current specifications of the device exceed the range of the power station.
Please confirm whether the power station is automatically turned on over current/ overload/ over temperature function due to other reasons.

How to release the automatic protection function after it is activated?
Follow these steps
A: If the OVERLOAD mark is lit on the LCD display

Disconnect the device first.
Short press the power button to release the automatic protection mode.

B: If the LCD display is completely black

Disconnect the device first. Charge the power station for 2~3 minutes.
Short press the power button to release the automatic protection mode.

Why is the adapter hot while charging the power station?
Our accessories include an AC adapter that can be used up to 65°, in addition, the adapter is UL/PSE certified, please feel free to use it.
What is overload protection?
Overload protection is that the power station will automatically turn off when the power of the device exceeds the rated output power. The LCD display will alert when the power system detects that the device being used is shorted or overloaded. Please confirm whether the device parameter specifications meet the scope of the power station before using it.
Can I charge this power station while supplying power at the same time?
When the power station is in recharging, the USB/ TYPE-C/ DC output ports are workable; but there is no AC output during this period.
How do I know if my device will work with the Rock power 200?
You will need to check the amount of power your device requires. This may require some research on your end. An online search or examining the user guide for your devices should suffice. To be compatible with the Rock power 200 you should use devices that require less than 200W.
How to know the working times for my device?
Working time = (224.64Wh*0.85)/working power of the device. For reference, assuming your device consumes 30W (possibly a 40-inch TV), the working time is 224.64Wh*0.85/30W 6.36hr
Can I take Rock power 200 on a flight?
No, Under FAA regulations we are not allowed to take any battery exceeding 100Wh on a plane, Rock power 200 is 224.64Wh.
AC and DC output, which way is best to power my CPAP machine?
For Optimal Use with CPAP. Rock power 200 can power your CPAP by two ways: 110V AC plug and 12V DC plug. Strongly recommend that CPAP users use DC to DC converter to work with this unit and turn off or remove the heater/ humidifier, it should last longer. To buy the DC converter, please consult with your CPAP supplier or simply find us for a guide.
Is this Rock power 200 use a Modified-sine wave inverter or a Pure-sine wave inverter?
The Rock power 200 uses a pure sine wave inverter, pure sine wave inverters use more sophisticated technology to protect even the most sensitive electronics. Pure sine wave inverters produce power that equals or is better than the power in your home. Appliances that may not function properly, or which may be permanently damaged, without pure, smooth power will be safe with pure sine inverters
