Ventum Ns1 Aero Road Bike User Manual

NS1 Aero Road Bike User Manual

WELCOME

Congratulations on your purchase of the Ventum NS1, your Aero All-Road Performance Bike! Get ready to experience a bike that is totally unlike any other on the road  today. Your new Ventum NS1 combines forward thinking design with the most advanced technologies available, to shatter the notion that a road bike can be either  lightweight or aerodynamic.
This document will guide you through the process of setting up your new bike and getting out on the road. Of course, if you have any questions or if we can be of assistance  in any way, please contact the Ventum Concierge team at [email protected]. Before you hit the road, please also take a moment to register your bike purchase via our website.

FRAME DIAGRAM

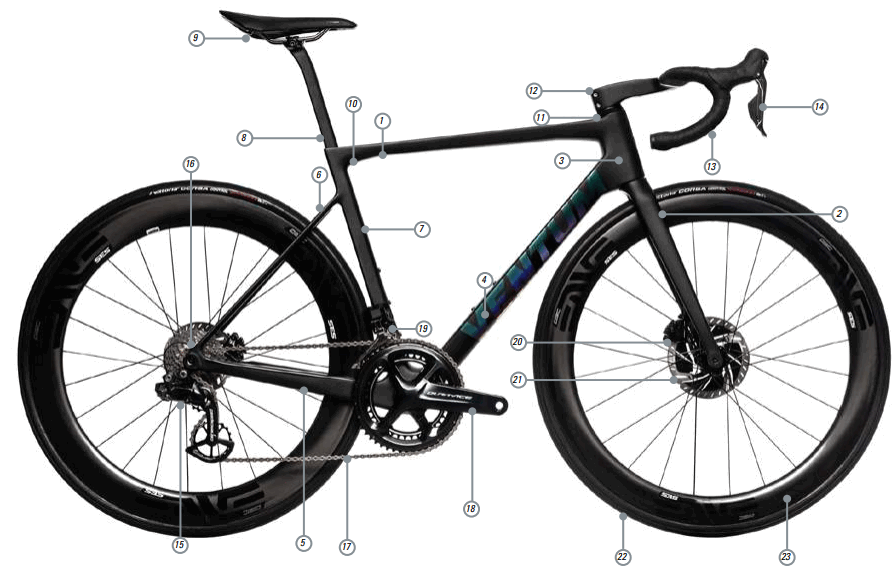

Please carefully inspect the image. It gives you a thorough break down of the names of the tubes that the frame/ fork consist of and the components that this bike uses. Please refer back to this image as needed.

UNBOXING

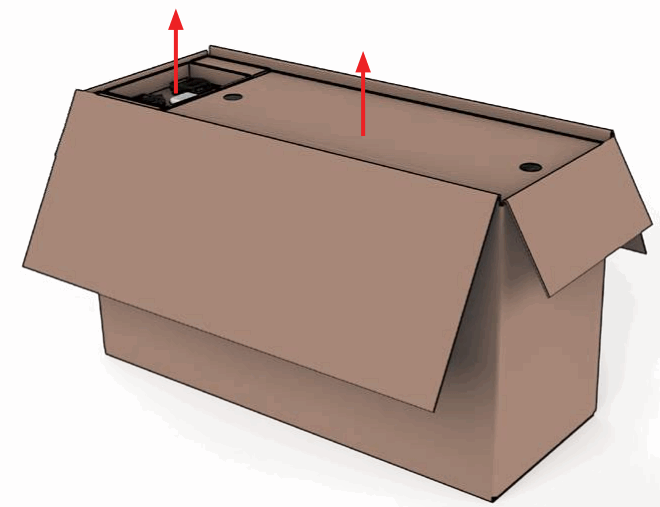

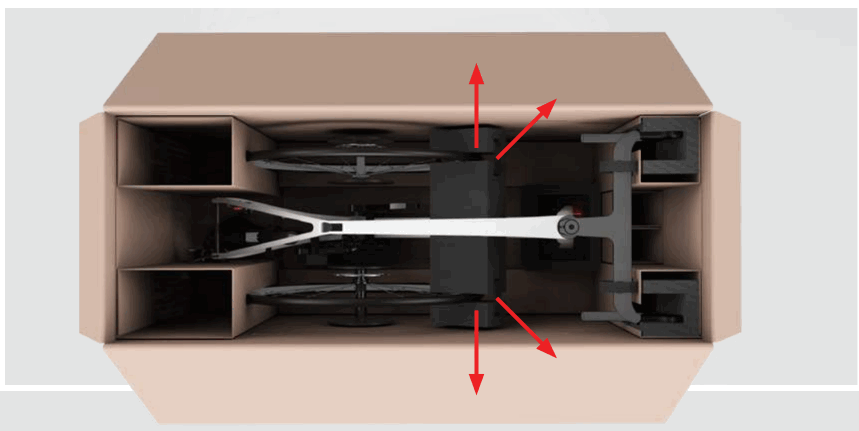

Remove the parts box and support cover

Remove the top tube foam blocks and shifter blocks

WHEEL REMOVAL

Remove the straps and foam blocks from the wheels

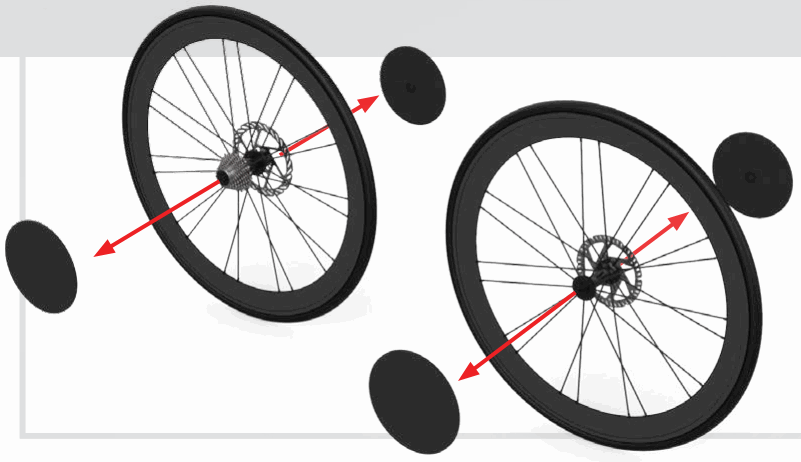

Remove the wheels from the box and remove the hub guards

SEAT POST INSTALLATION

1. Detach the seat post and remove the protective foam
2. Undo the strap around the bottom bracket

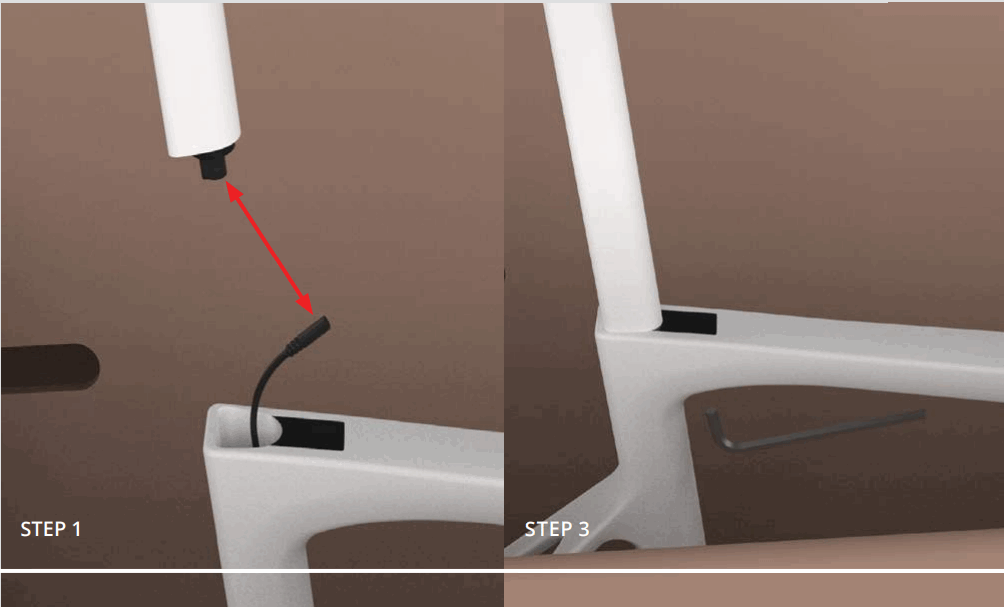

1. Plug Di2 cable into seat post battery, you should hear a click.
2. Insert the seat post into the frame. Ensure the minimum insertion depth of 10 cm is achieved.
3. Torque the seat post clamp bolt to a minimum of 6 N.m. Temperature, moisture, and contaminants can affect the seat post clamp. If necessary, it can be torqued up to 8 N.m.
   NOTE: To remove or adjust the seat post, loosen the seat post clamp bolt.
   It is not necessary to remove it from the clamp entirely. Simultaneously tap the tail and nose of the saddle with your hands to disengage the clamp’s grip on the seat post  and permit adjustment. Push or pull the seat post as required to achieve the desired saddle height.

WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD LEAD TO SERIOUS INJURY OR DEATH.

FRAME UNBOXING

Remove the straps from the handlebar

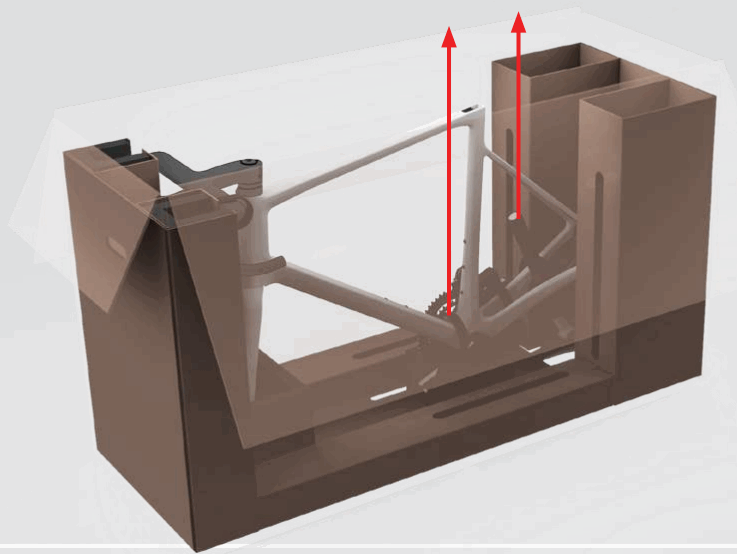

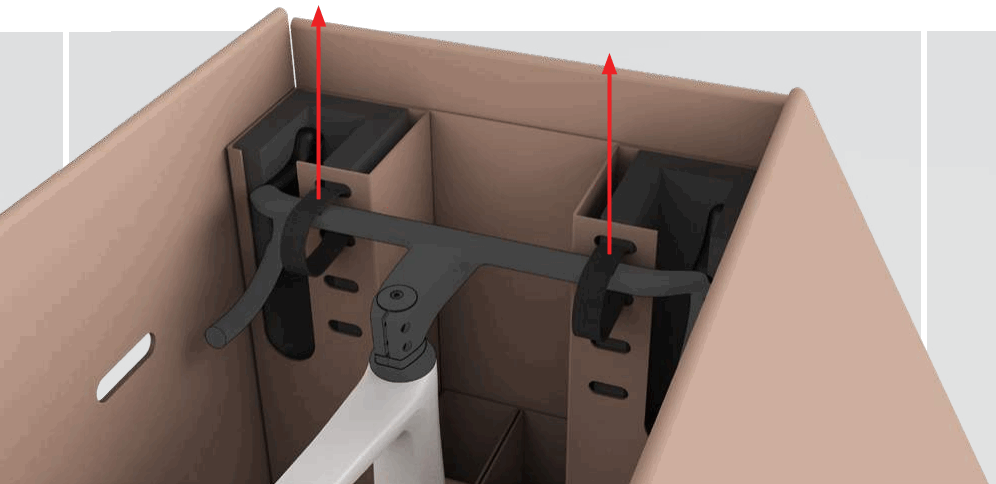

1. Lift the frame out of the box

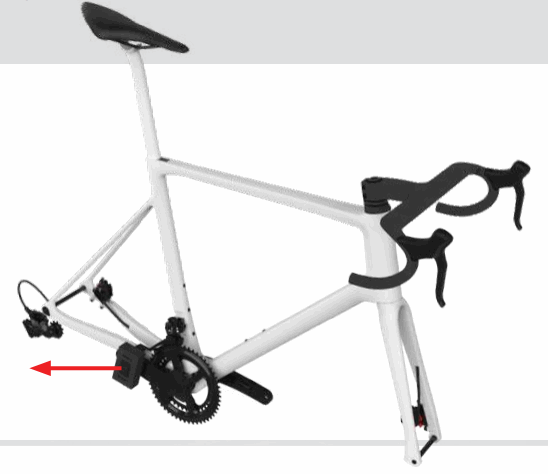

2. Detach the strap and foam block from the crank arm

WHEEL INSTALLATION

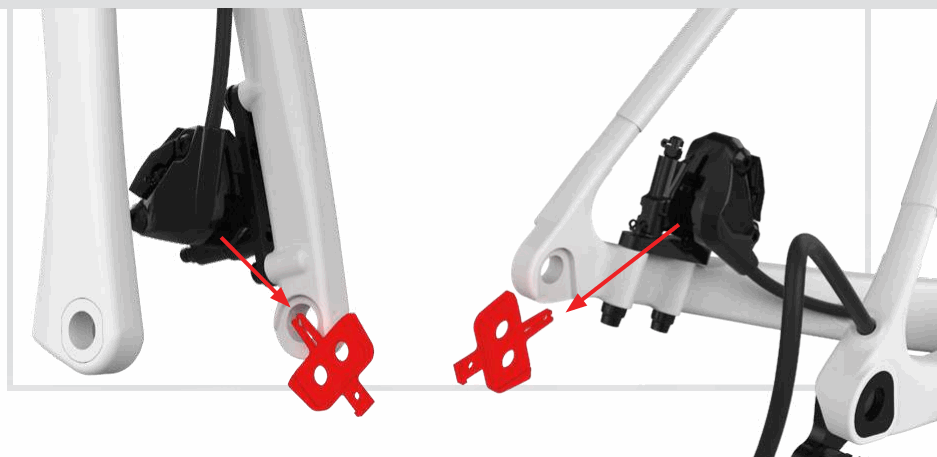

Remove the spacers from the brake calipers

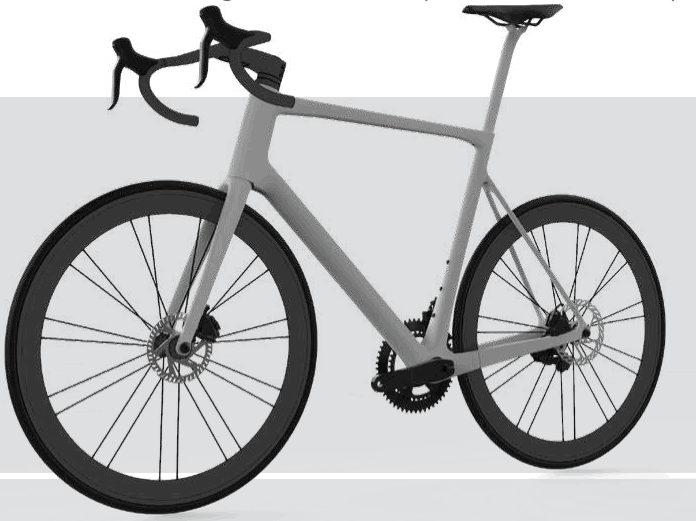

Install the wheels ensuring the rotor lines up between the brake pads

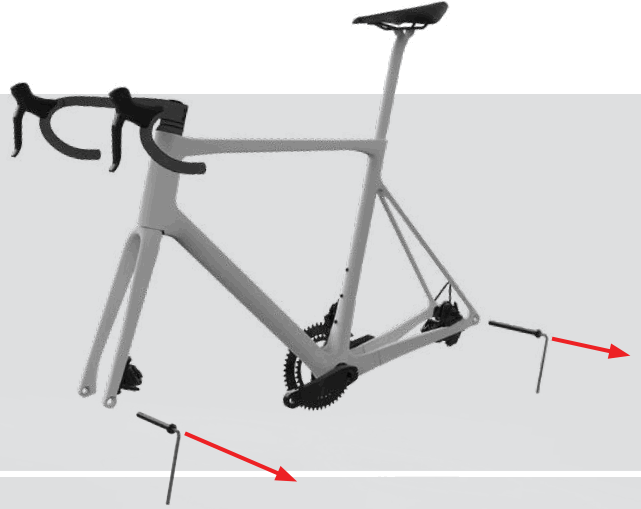

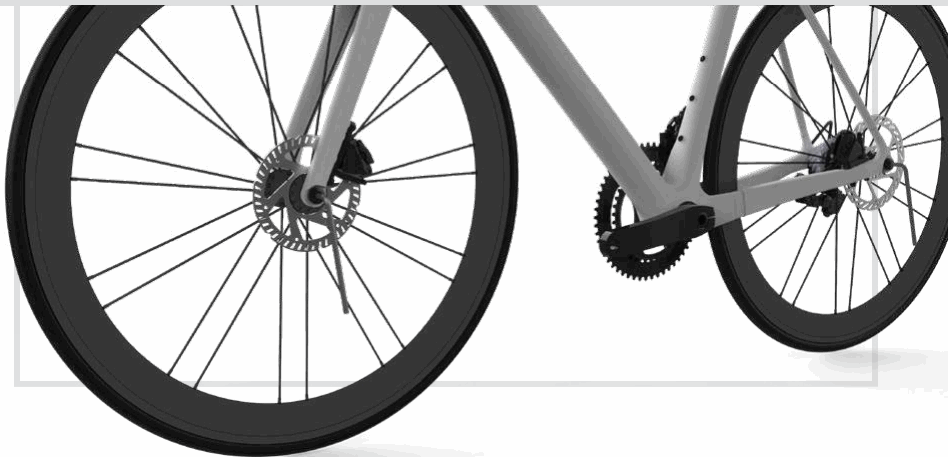

Secure the wheels by re-installing the thru axles. Torque to 12 N.m.
WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD LEAD TO SERIOUS INJURY OR DEATH.

FINAL CHECKS & ROAD TEST

1. Install your pedals as per the manufacturer’s instructions.
2. Check the tire pressure and inflate as per the manufacturer’s recommendation.
3. Adjust the saddle height as necessary. Ensure the seat post minimum insertion depth of 10 cm is achieved.
4. Put on your shoes and helmet and take your new bike out for a road test. Always wear a helmet when you ride your bicycle.
5. Check the operation of the brakes, derailleurs, and steering.

WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD LEAD TO SERIOUS INJURY OR DEATH.

ENJOY YOUR NEW RIDE!

VENTUMRACING.COM
