Dals Ledwall-a Wall Lamp Installation Guide

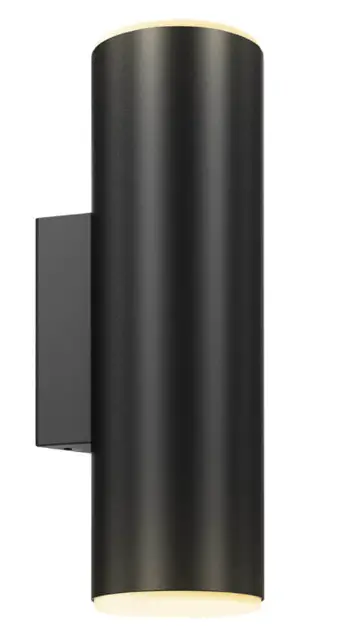

dals LEDWALL-A Wall Lamp

Installation guide for LEDWALL-A

* Works with most dimmers. Dimming range: 10%-100%. Refer to DALS website for dimmer compatibility list.

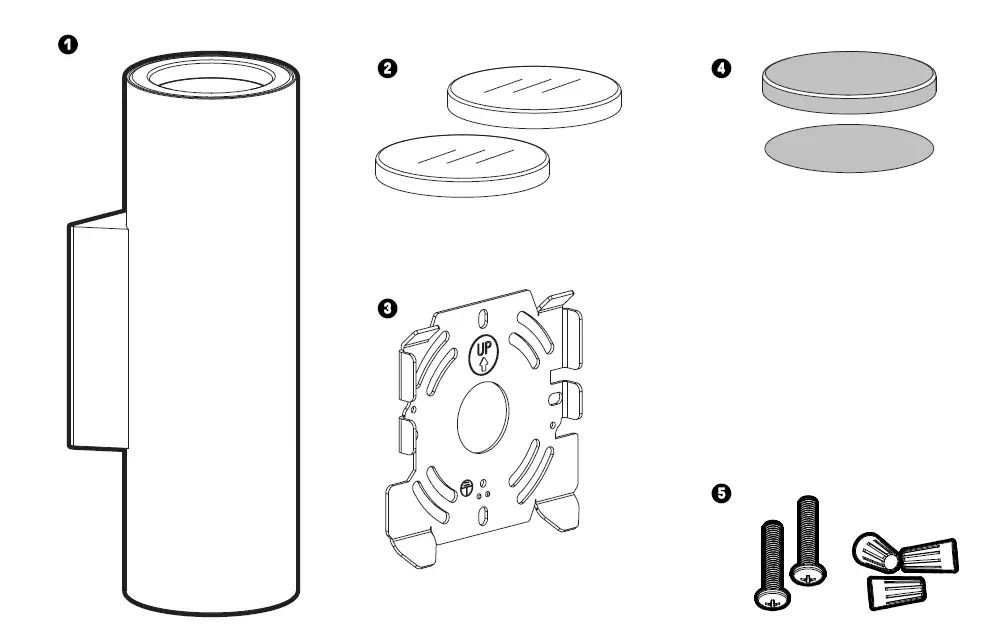

ITEMS INCLUDED IN THE BOX

1. Fixture
2. 2x glass diffuser lens
3. Mounting plate
4. Aluminum plate and cap
5. Mounting hardware

WARRANTY
DALS offers a 5 year warranty from the date of purchase which covers repairs or replacements of defective parts of the housing, optics, and electronics. To contact DALS customer service call 1 877 430 1818 or send an e-mail to [email protected].

BEFORE YOU START

BEFORE STARTING INSTALLATION, SHUT THE LINE FEED POWER OFF USING THE CIRCUIT BREAKER.
LEDWALL-A
A Instructions pertaining to a risk of fire, electric shock or injury to persons. Installation must be done according to local electrical codes. Installation should be done by a certified electrician.
This class B digital apparatus complies with Canadian ICES-005. This digital apparatus does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications

1. Make electrical connections. (see connection details)
2. Fasten the the mounting bracket to the junction box.
3. Dimensions: 3.61″ x 3.61″ x 1.59″.
4. Connect the mounting bracket to the fixture with the quick connectors.
5. Mount the fixture onto the mounting bracket and secure in place using provided screws

Install black aluminum plate + aluminum cap for a down light only

dals
Tel: 1 877 430 1818
Website: www.dals.com
INS_LEDWALL-A….REV7
