oppo CPH2483 Mobile

Product Information

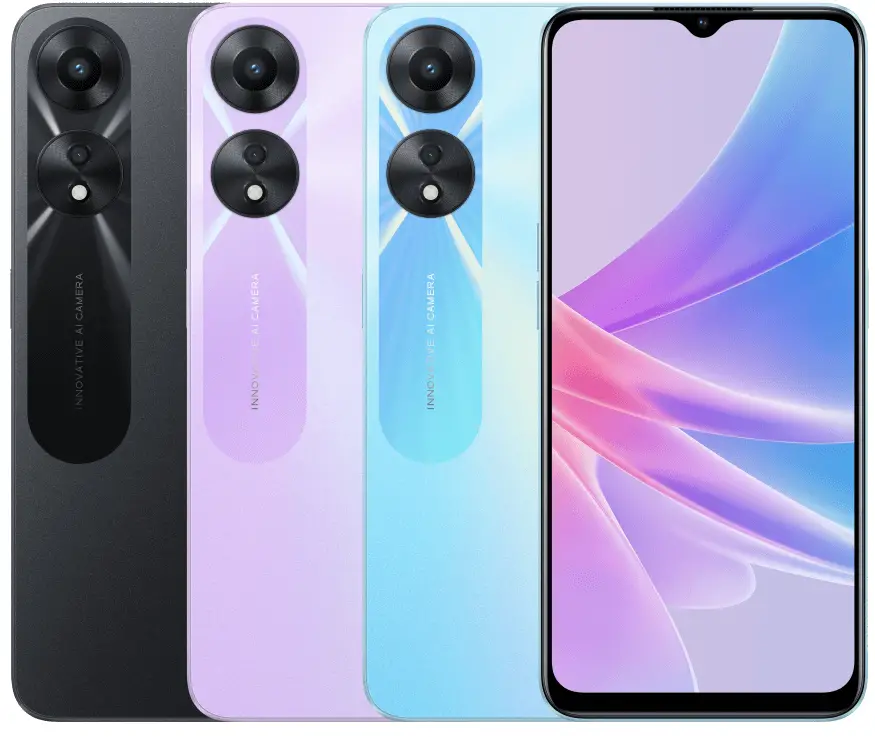

The OPPO Mobile CPH2483 is a smartphone with a 16.66 cm (6.56-inch) main screen and a battery capacity of 4880 mAh/18.88 Wh (Min) or 5000 mAh/19.35 Wh (Typ). It has a rear camera with 50 Megapixels and 2 Megapixels and an 8 Megapixels front camera. The phone supports FM Radio and NFC. The SAR values for the device are 0.xx W/kg (Head), 0.xx W/kg (Body), and 1.xx W/kg (Hotspot).

Standard Accessories

The following standard accessories are provided with the phone: 1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool, and 1 Protective Case.

Radio Waves Specifications

The phone supports the following radio waves specifications:

• Radio GSM: 850MHz, 900MHz, 1800MHz, and 1900MHz
• WCDMA Bands: 1/2/4, 5/6/8/19
• LTE FDD Bands: 1/3, 2, and 4/7/66
• LTE TDD Bands: 5/8/12/13/17/18/19/20/26/28, and 38/40/41 Band 39
• 5G NR Bands: n1/n5/n7/n8/n66/n38/n40/n41/77/78, and n3 n20/n28
• Bluetooth: 2.4G
• Wi-Fi: 2.4-2.4835GHz, 5.15-5.25GHz, 5.25-5.35GHz, 5.47-5.725GHz, and 5.725-5.85GHz
• NFC: 13.56MHz

Max Output Power

The maximum output power for the phone is as follows:

• GSM: 33.5dBm
• WCDMA: 33.5dBm
• LTE FDD: 30.5dBm
• LTE TDD: 30.5dBm
• 5G NR: 23.8dBm
• Bluetooth: 24.8dBm
• 2.4G Wi-Fi: 24.3dBm
• 5G Wi-Fi: 23.3dBm
• NFC: 23.8dBm
• Hotspot: 24.8dBm
• EIRP: 14.6dBm, 17.6dBm, 18.4dBm, and 18.2dBm
• Sound Pressure Level: 42dBA/m @10m

Product Usage Instructions

To use the OPPO Mobile CPH2483, follow the below instructions:

1. If you are migrating from an iPhone, run Clone Phone on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
2. Connect the charger to the phone and plug it into a power outlet.
3. Insert the SIM card and use the SIM ejector tool to remove the SIM card tray if needed.
4. Press and hold the power button until the OPPO logo appears on the screen.
5. Follow the onscreen instructions to set up your phone, including selecting a language, connecting to Wi-Fi, and signing in to your Google account.
6. You can then use all of the phone’s features, including making calls, sending messages, taking photos, and accessing apps.
7. To listen to FM Radio, find the option in the menu and connect your headset.

Greetings from OPPO Mobile

This guide will show you how to use the phone and its important functions. You may also visit OPPO official website to get more information about the phone.

How to reboot the phone

Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.

How to Transfer Old Mobile Content to a New Mobile

You can use OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.

1. If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan the QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
   https://i.clonephone.coloros.com/download
2. If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.

Standard accessories

You are provided with the following standard accessories:

• 1 Phone
• 1 Charger
• 1 USB data cable
• 1 Safety Guide
• 1 Quick Guide
• 1 SIM Ejector Tool,
• 1 Protective Case

Specification

Note:

1. The SAR values above are the highest values reported for this device.
2. FM Radio can be tuned in this device, just find the option in the menu and connect your headset.

Radio Waves Specifications

The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
Copyright © Guangdong OPPO Mobile Telecommunications Corp., Ltd. 2022. All rights reserved.
50xxxxxx
