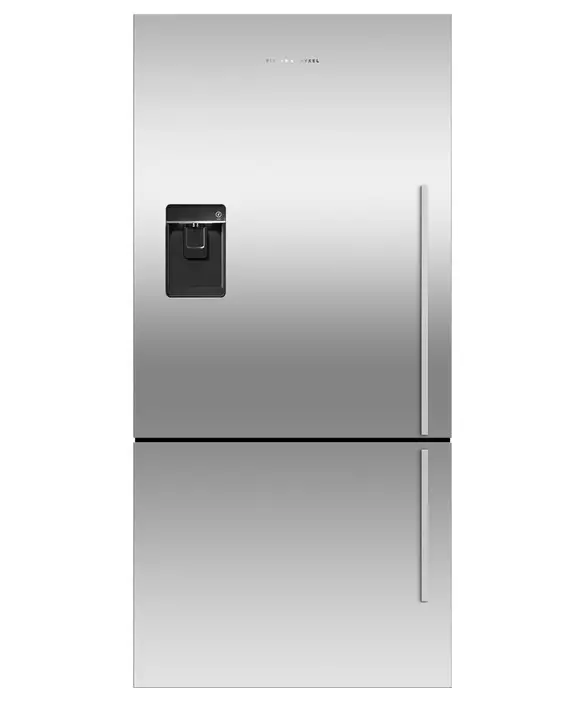

E522BLXFDU5 Freestanding Refrigerator
User Guide
With ample storage and a stylish stainless steel finish, for a timeless look.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- The spacious bottom freezer with easy-slide internal drawers to separate storage
- Door water dispenser and internal ice maker

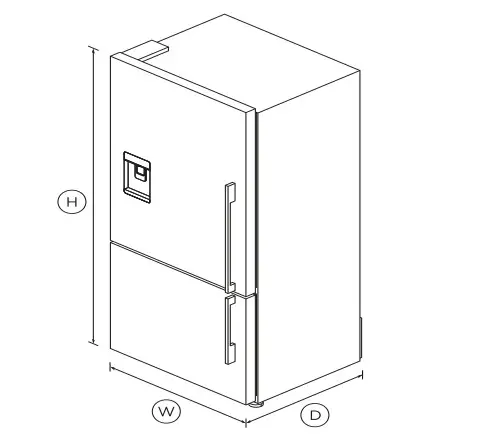

DIMENSIONS
| Height | 1715mm |
| Width | 790mm |
| Depth | 695mm |
FEATURES & BENEFITS
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your fridge.
Humidity control
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
Clever energy
Your fridge adapts to daily use by cooling and defrosting only when needed. This means your fridge uses the energy it needs without compromising on food care.
Design quality
Our refrigerators are designed and built using quality materials.
We use real stainless steel on our fridges and solid glass for shelving.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel fridges. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
SPECIFICATIONS
| Accessories | |
| Replacement water filter | FWC3 (made after 2018), |
| Capacity | |
| Volume | 494L |
| Volume freezer | 146L |
| Volume refrigerator | 348L |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 414kWh/year |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Freezer bins | 3 |
| Ice Boost | • |
| Ice bin and scoop | • |
| Large plastic bins | • |
| Slide Out Pastry Tray | • |
| Small plastic bins | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| External water dispenser | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Product dimensions | |
| Depth | 695mm |
| Height | 1715mm |
| Height to top of cabinet | 1715mm |
| Width | 790mm |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | additional 3 years |
| SKU | 26546 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
