Moya Ispa Bubble Massage Bath Appliance User Manual

MOYA iSPA Bubble Massage Bath Appliance

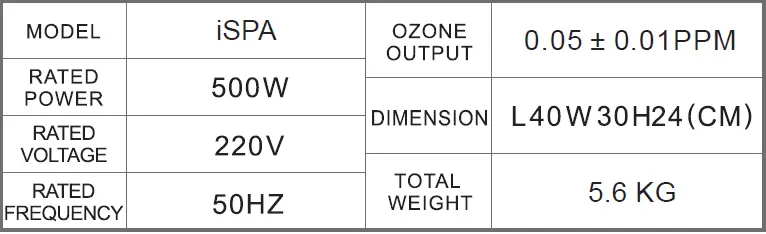

Specifications for iSPA

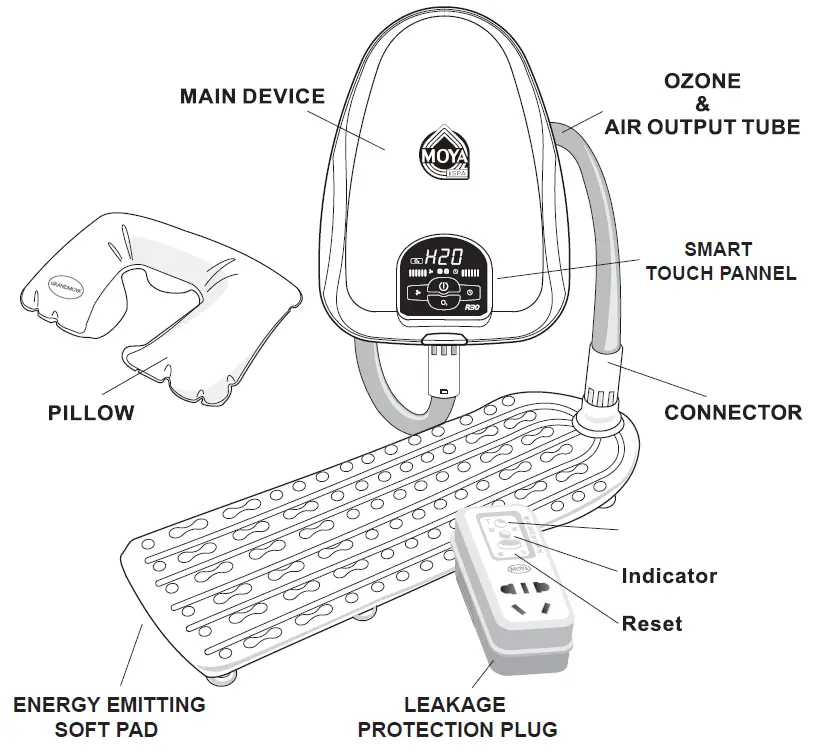

Illustration of i-SPA Components

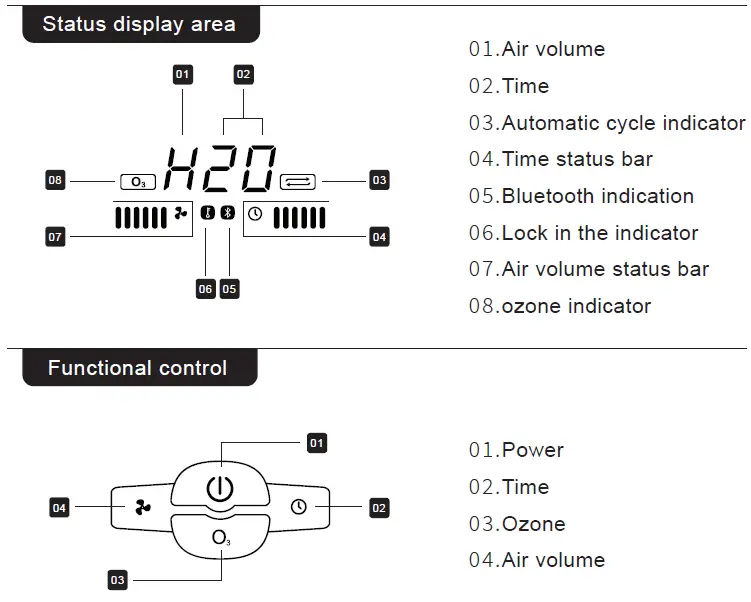

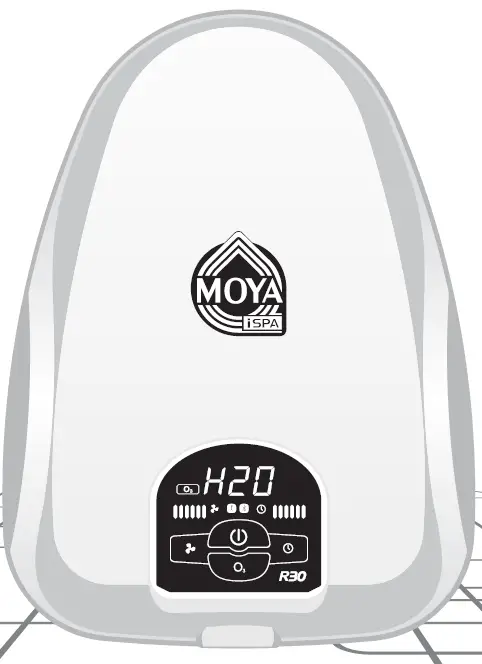

Control Panel Introduction

The control panel is divided into upper and lower areas, namely, status display area and functional control area.
Status display area: display usage time, air quantity , ozone status, lock, Bluetooth connection and other device status.
The functional control area adopts the touch control mode, and the user can touch the opening equipment, air quantity, time length and other related operations.

Equipment Operation Instructions

Before starting the machine, please confirm that the equipment power plug is installed on the leakage protector equipped with the product (see the ‘leakage protector’ on the next page), and check whether the power supply is normal, the equipment power indicator is on, indicating that the power supply is normal.

Start and close equipment
When the power supply is connected to the indicator light and turns on, press the power button to start the device.The equipment is automati-cally set to high speed mode, running for 15 minutes, the ozone is turned on; press the power button ( ) again to close the power equipment.

Time adjustment
Time adjustment Please adjust the time adjustment knob in the function-al control area , You can adjust the time.
Time setting is divided into: minutes, minutes, minutes, automatic cycle mode.

Note: When the automatic circulation indicator lamp is on, the equipment will enter the automatic continuous operation mode.

Air volume adjustment
Please adjust the air volume adjustment knob  in the functional control area.
Wind volume adjustment with wind volume and small wind volume to provide user choice in cycle mode.

Opening and closing ozone (O)
Touch the ozone button ,on the control panel to turn the ozone function on or off.

Lock panel
Keep pressing the power button on the control panel for three seconds to lock the indicator light.Open panel lock mode, pressing any control key on the equipment panel; continuously press power key for three seconds.

Mobile Bluetooth Control

The MOYA iSPA R30 has a Bluetooth wireless connection function, using the mobile client connection steps:

•  Turn on Bluetooth online in the phone.

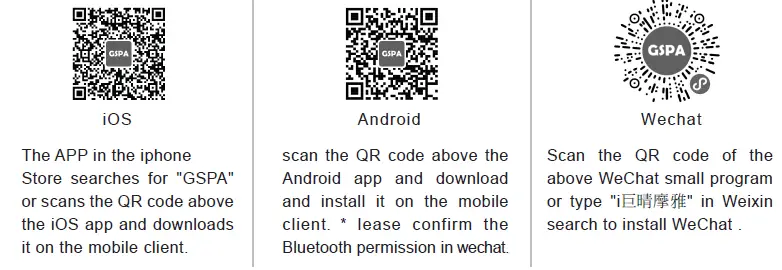

•  Download and install the following “GSPA” mobile application or wechat applet to add attention.
• After the installation or attention, open the application to add the device and make online matching, you can use the mobile phone to control the device.

Before confirming whether the mobile phone is paired with Bluetooth, the power supply is powered on normally. In case of abnormal pairing, please pull out the power supply and pair it again again.Or refer to the simple fault handling in the manual.If still disconnected, please contact our customer ser vice.

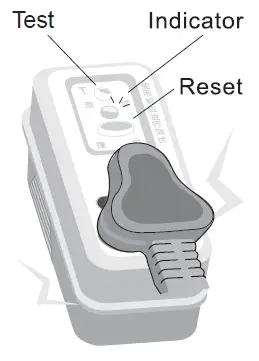

Leakage Protection Plug

This device is to ensure the equipment to operate under normal and safe conditions. The status and steps in use are as follows:

1. Leakage protection test: Click the “reset” button, the indicator lights up, indicating the power is normally on; click the “test” button to turn it off, indicating the leakage protection is effective;
2. Click the “reset button” and the indicator lights up, and the iSPA can be used normally.
3. Before every usage, please follow the above steps for testing

Installation of iSPA

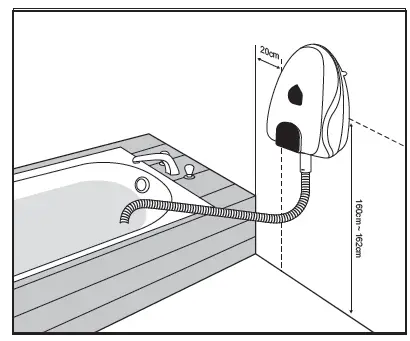

ISPA Equipment Mount on Wall:

Mount on wall above level of bathtub; correct position should be:

•  at least 20cm away from bathtub.
• 160cm height between bath -room floor and mid-point of main device.

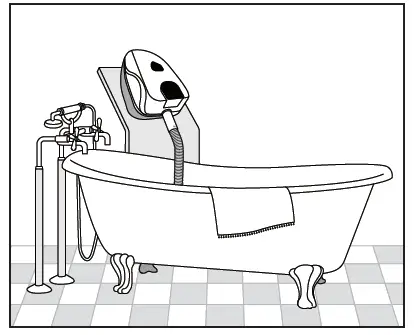

ISPA Equipment Mount on Stand-RackWarning: stable stand-rack, ensure the Lil height of the main device is higher than the bathtub water level. The stand-rack must be stacilized and prevent water splashing.

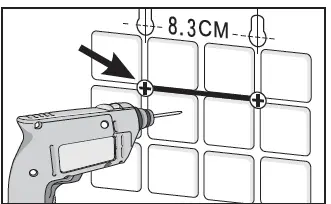

Step: 1

Find two suitable spots I between adjoining ceramic tiles on the bathroom wall. Drill a depth of 3cm by a 1 /8 drilling; nail a screw plug

Step: 2

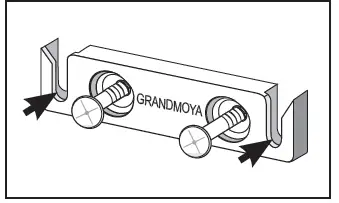

Position the mounting palte ( letter facing-out) insert one screw plug and tighten to secure the mounting plate.3

Step: 3

Hang Main Device on the mouting plate. Ensure the voltage ( 220v) nmatch the voltage of the npower source.

Proper Handling of Soft Pad

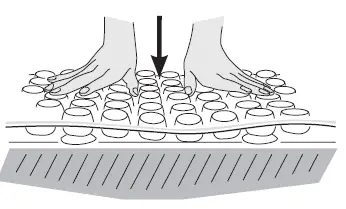

• Place the soft Pad in bathtub ensuring that it is firmly held in place by suction disc beneath. (If wooden bathtub is used, the soft Pad will not have a firm grip on surface.

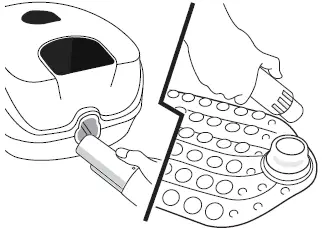

• Connect both ends of the pipe to iSPA machine and bubble pad until tight enough. Comfirm two connection is stable for each usage.
• To disconnect the pipe from the Soft Mat, please screw out the connector lightly.

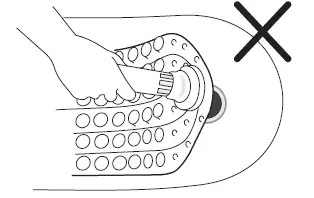

• Lift up the suction disc gently before removing the soft pad, do not pull out the soft pad directly from tub, this will damage the soft pad.

Safety Precautions for SPA Bath

Notice: Not everyone suits a SPA bath

1. Maintain cleanliness and good ventilation in the bathroom. Do not use it in a badly-ventilated bathroom (when necessary, keep the bathroom door open to allow for good ventilation).
2. Do not install gas or heater in the bathroom and/or use it.
3. During bath, do not lock the door and ask families to pay attention to safety.
4. Do not submerge in the SPA for prolonged period under high temperature or beyond one’s health capacity. Otherwise, it may cause dizziness and other dangers. Before bathing, please check that the temperature is safe and suitable.
5. Do not submerge in the SPA for a prolonged period as it may cause fatigue. Ideally, each session should not exceed 15 minutes.
6. For those who use it for the first time or non frequent users, they should not be submerged in water of too high temperature and should keep the spa session short. They should put their arms outside the tub.
7. Do not use it when one is too full, too hungry or has consumed alcohol, too tired or in an excitable state.
8. Refrain from keeping eyes opened when fully submerged.
9. Safety precaution is particularly important for young children, pregnant women and the elderly. When using the SPA, they shall be accompanied by family members or healthcare attendant.
10. Those suffering from hypertension, heart diseases, epilepsy and unhealed wounds, or other diseases are not advised to use the SPA.
11.  During bath, when one feels giddy or experiences chest distress, one should immediately stop using the SPA, use wet towels to wipe and cool down the forehead, cheek and arm, and place the hands on the bathtub for support to stand up slowly until the breathing returns to normal.+
12. When one goes in and out of bathroom or bathtub, one should take precautions against slippery floors to avoid slip or falls due to the wet floor.

WARNING

• The machine should installed at least one meter higher than the bathtub, to avoid any dangerous caused.
• When the electric wire damaged, please call the manufacturer’s maintenance dapartment or specialist.

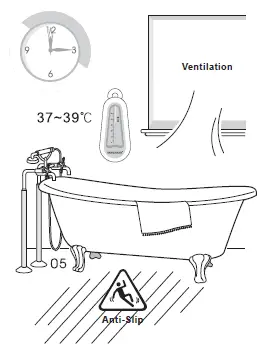

Four Principles of Bathing Safety

• The water temperature is below 40 ℃
• Sit high with your hands on the bathtub
• No more than 10 minutes
• Do not take a bath if you feel unwell

Steps for a healthy bubble bath (SPA)

1. Before the spa session, rinse the body with water from the bathtub. Wash the body with the hot water, starting from the area farthest away from the heart, so as to allow the body to get used to the heat and alleviate the burden on the heart.
2. Add in appropriate amount of Moya SPA Bath oil. Mix the Bath oil and water well with one’s hand. When in SPA, breathe deeply to take in the herbal smell.
3. Place hands on the bathtub for support and get into the bathtub carefully and gradually to prevent slipping, Get used to the water temperature slowly. Squat in the bathtub for 2 minutes to allow the bubbles to massage the bottom and anal parts etc.
4. Sit in the bathtub, bend one’s legs and bring them towards the body. Hold the position for 2 minutes to allow the bubbles to massage the inner thigh.
5. Hold on to the bathtub and gradually relax the body and lie down in the SPA. Submerge in SPA until the end of the bubble bath.
6. If one feels giddy or experiences breathing difficulty, it means that the water temperature is too high. Take remedial action immediately. Rest the elbow outside the bathtub, raise one’s body in the lying position to reduce the area that is submerged in the SPA or stop using the SPA immediately.
7. At the end of the SPA session, do not stand up immediately. One should adjust one’s breathing, hold on to the bathtub and get up gradually. If one feels giddy, one should use a wet towel to sponge the forehead, face and arm. Stand up only when the condition has stabilized.
8. Under normal circumstances, it is necessary to rinse or dry one’s body.
   Put on the bathrobe and take a rest to allow the body and the oil to continue to activate until the oil dries up naturally. After bathing, rest and relax for a while. Remember to drink water to avoid dehydration and apply some moisturizer.

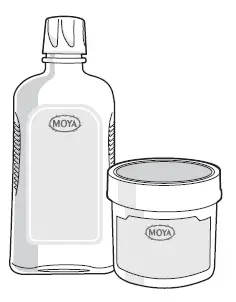

For a healthier and more comfortable bath, do select our products:MOYA SPA Bath Oil and MOYA SPA Bath Salt etc.,
Make your bathing more comfortable.

Troubleshooting

Attention

1. Do not drop, hit or submerge the main device and Voltage Protector in water.
2. The installation and placement of this main device is designed to prevent water seepage or one from falling into the bathtub.
3. Please check that the voltage of the socket is 220V before using.
4.  Do not splash water directly on to the main device and power switch so as to prevent power leakage, breakdown and ensure safe usage.
5. The soft pad is considered a consumable product. Remove it gently from the suction disc.
6. Do not exert force, otherwise any tearing, breakdown etc. of the soft pad shall be replaced with cost.
7. Maintain cleanliness of the soft pad at all times. Use a soft, long bristle brush for cleaning.
8. Do not submerge the soft pad in the bathtub for prolonged period. Hang it to drip dry after use so as to protect the proper functioning of the components.
9. The company is not liable for any unauthorized dismantling of or repairs to the main device.
