Kramer W-2uc Dual Insert Dual Usb Charger Installation Guide

Installation Instructions
MODEL:
W-2UC Dual Insert Dual USB Charger
WP-2UC Wall Plate Device Dual USB Charger

SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.

www.KramerAV.com
[email protected]

Introduction

Congratulations on purchasing your Kramer dual USB charger with two USB connectors for charging devices (such as iOS and Android devices) that are available as W-2UC, a  dual insert, and as WP-2UC, a standard, one gang US size insert.

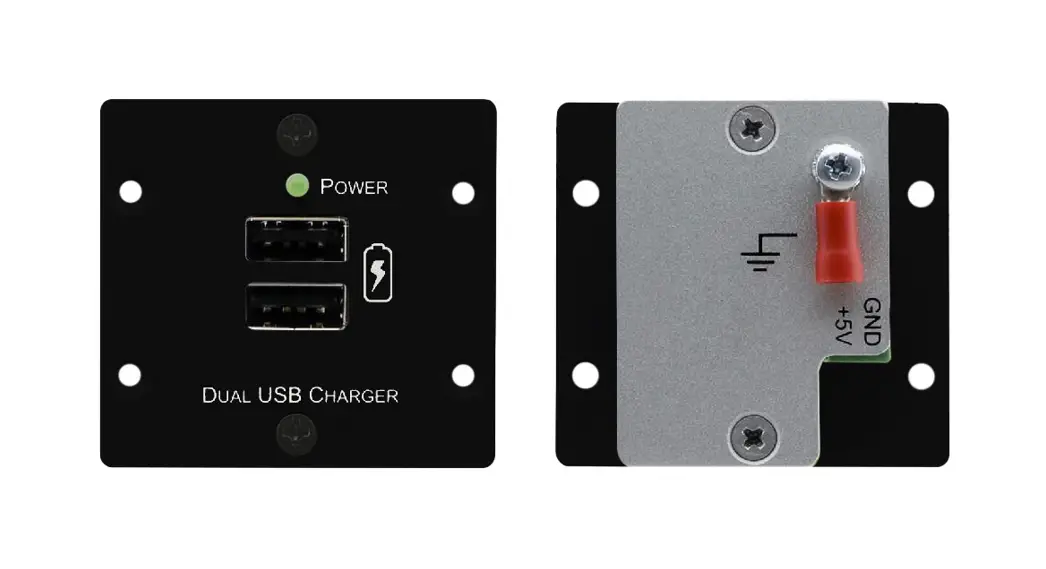

Get to know your W-2UC

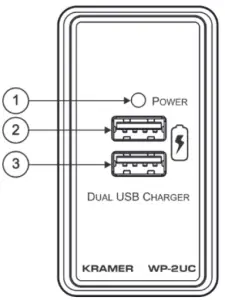

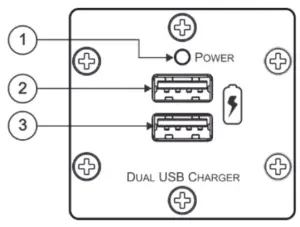

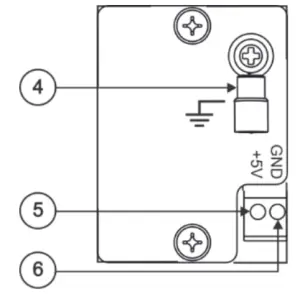

W-2UC front panel	WP-2UC front panel	W-2UC and WP-2UC rear panel

For optimal performance, use the recommended Kramer cables available
at www.kramerav.com/product/W-2UC.
Using third-party cables may cause damage!

Mounting W-2UC

To mount a Kramer insert or connector module:

1. Place the Kramer insert over the opening.
2. Insert the four screws (two on each side) to fix the Kramer insert in place and tighten them.

Mounting WP-2UC
The WP-2UC standard size, one gang US insert can be fitted into a standard US market-available design frame.

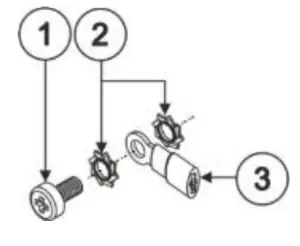

Grounding Dual Insert Dual USB Charger

The grounding screw is used to earth the chassis of the unit to the ground of the building to help prevent static electricity from impacting on the performance of the unit.

Technical Specifications

W-2UC, WP-2UC
