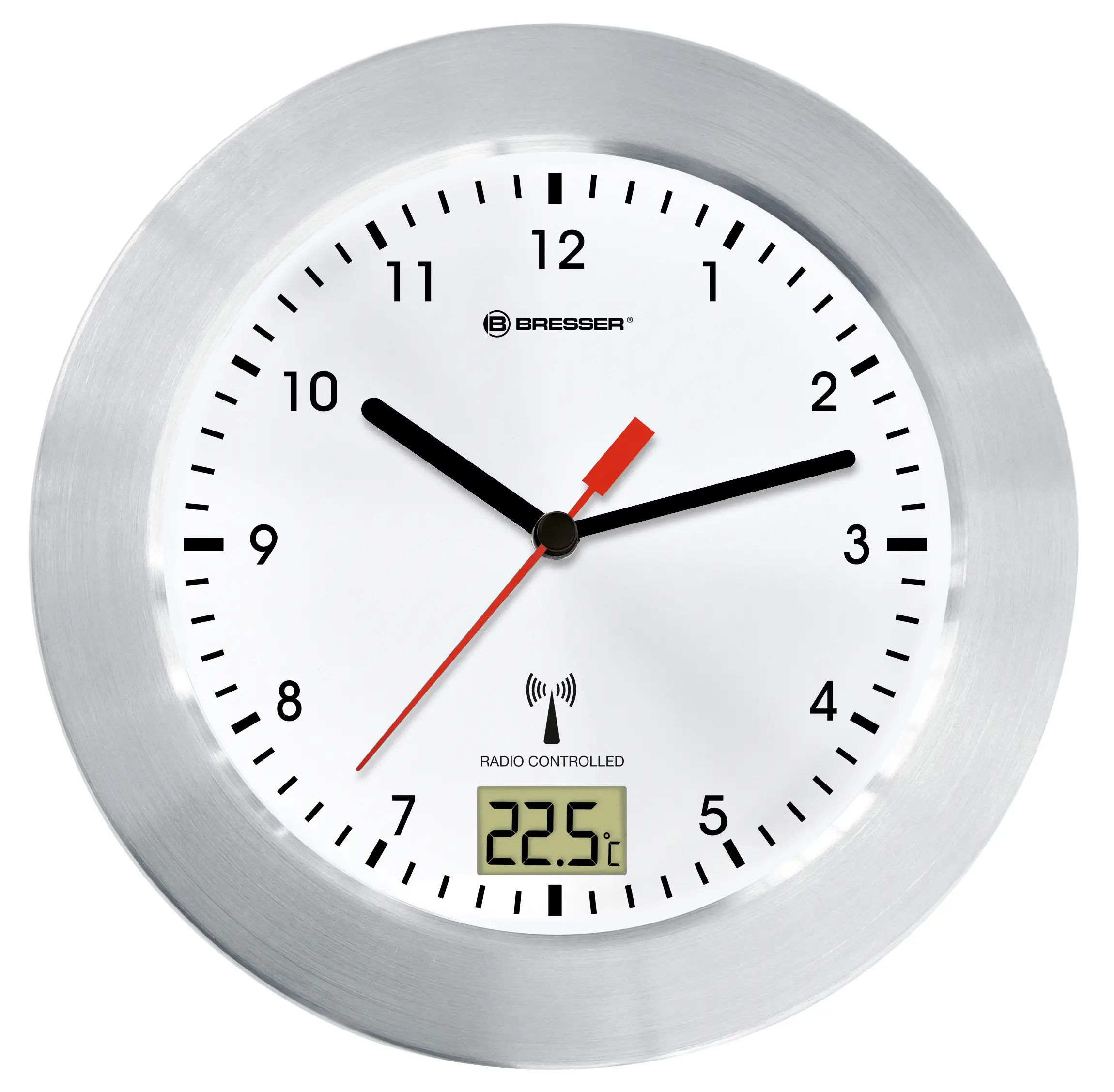

BRESSER 8020113 Radio Controlled Bathroom Clock with Thermo-Hygrometer
Installation
General Information
This item is available in the models listed below. The features and technical data are identical for both models, they differ only in design / in colour.
Model 8020113: Radio-controlled bathroom clock, black/silver
About this Instruction Manual
These operating instructions are to be considered a component of the device.
Please read the safety instructions and the operating instruc-tions carefully before use.
Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product. The de-vice is intended only for indoor use.
General Warnings
RISK OF CHOKING!
This product contains small parts that could be swallowed by children. There is a RISK OF CHOKING.
RISK OF CHEMICAL BURN!
Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately with a plenty of water and seek medical attention.
RISK OF FIRE/EXPLOSION!
Do not expose the device to high temperatures. Use only the rec-ommended batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire or an explosion.
NOTE!
Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary. Protect the device from severe shocks! The manufacturer is not liable for damage related to improperly installed batteries.
CONTENT
Wall Clock (A), base (B), operating instructions A 1.5V AA/LR battery is required for operation (not included).
PARTS LIST
- Clock face
- Hanging hole
- Stand (inside)
- Suction cups
- Protective rubber ring
- Battery compartment
- Stand receptacle
- Temperature and humidity display
- Cover
FEATURES
• Water resistant
• LCD display with indication of indoor temperature (° C)
• Easy to install with four strong suction cups
• Modern design with an elegant aluminum frame
START-UP/POWER SUPPLY

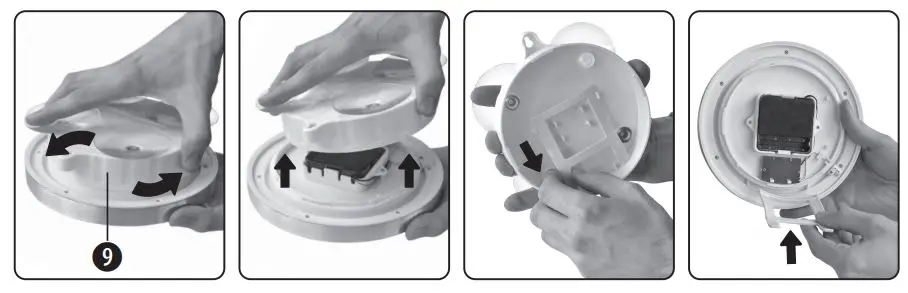

1. Turn the housing cover (9) with a little force, counter-clock-wise and detach it.
2. Remove the locking pin from the clockwork. The clock can be operated only after the pin has been removed.

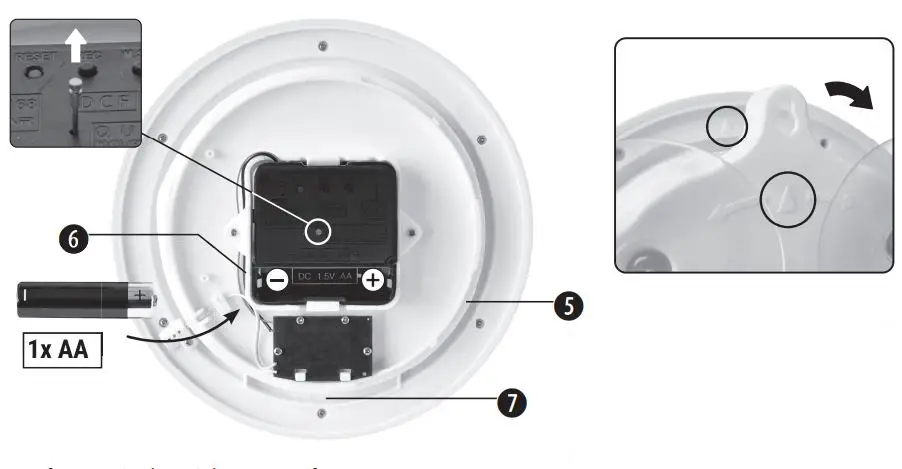

3. Insert a 1.5V battery into the battery compartment (6) AA/LR6. Pay attention to the correct polar direction (+ / – ) of the battery as indicated inside the battery compartment.
RADIO CONTROLLED TIME
The radio controlled signal for time (DCF) is transmitted from the central atomic clock in Frankfurt/Main in short intervals. It has a reception range of approx. 1500 km.
- During night-time hours, atmospheric disturbances are typically less severe and radio signal reception may improve. A single daily reception is sufficient enough to keep the clock accuracy within 1 second.
- Make sure the unit is positioned at 8 feet (2 meters) distance from any interference source such as a TV, computer monitor, microwave, etc.
- Within concrete wall rooms such as basements or office build-ings, the received signal may be weakened.
TEMPERATURE/HUMIDITY DISPLAY
After inserting the battery, the indoor temperature and humidity are shown on the LCD display (8). The measuring range is be-tween 0°C ~ +50°C (temperature) and 20% ~ 95% (humidity).
MOUNTING/POSITIONING OF THE CLOCK
There are 3 ways to mount this clock on the wall or on a flat surface:
- Open the housing cover (9) and remove the pedestal stand (3). Insert it into the receptacle for the stand (7) and position the clock on a flat surface (e.g. bathroom cabinet).
- Hang the clock using a screw or nail (not included) onto the desired and suitable wall (2).
- Slightly moisten the suction cups (4) and press the clock with the suction cups against a flat wall surface.
CAUTION:
Always make sure to mount or stand the clock securely. Dropping the unit may cause serious damage, for which the manufacturer takes no responsibility! The suction cups must be placed on a perfectly flat, clean and dry surface. Moisture favours slipping!
NOTES ON CLEANING
Before cleaning the device, disconnect it from the power supply (remove batteries).
Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid.
DISPOSAL
Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.
Do not dispose of electronic devices in the household garbage!
As per Directive 2002/96/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.
In accordance with the regulations concerning batteries and rechargeable batteries, disposing of them in the normal household waste is explicitly forbidden. Please make sure to dispose of your used batteries as required by law — at a local collection point or in the retail market. Disposal in domestic waste violates the Battery Directive.
Batteries that contain toxins are marked with a sign and a chemical symbol. “Cd” = cadmium, “Hg” = mercury, “Pb” = lead.
EC DECLARATION OF CONFORMITY
Bresser GmbH has issued a “Declaration of Conformity” in accordance with applicable guidelines and corresponding standards. This can be viewed under www.bresser.de/download/8020113/CE/8020113CE.pdf
WARRANTY
The regular guarantee period is 2 years and begins on the day of purchase. To benefit from an extended voluntary guarantee period as stated on the gift box, registration on our website is required.
You can consult the full guarantee terms as well as information on extending the guarantee period and details of our services at www.bresser.de/warranty_terms.
