Airflo Afc1603 2 In 1 Cordless Stick Vacuum Cleaner Instruction Manual

Instruction Manual

2 In 1 Cordless Stick Vac
Model no.AFV1603

IMPORTANT SAFETY REMINDERS

Read all the instructions carefully before using the vacuum cleaners

• Do not vacuum water, wet objects, liquids, ashes, hot coals, cigarette butts, matches or any hot, smoking, or burning objects, etc.
• Do not pick up flammable or combustible materials (like lighter fluid, petrol, kerosene, etc) or use them in the presence of explosive liquids or vapor.
• Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc)
• Do not vacuum toner (for laser printers, copy machines, etc) as this may present the risk of fire or explosion.
• Do not vacuum plaster, cement, or the like as the filter can become blocked.
• Do not use the vacuum without all the filters fitted.
• Do not store or use the appliance near high-temperature areas.
• Do not run over the power cord with the vacuum cleaner.
• Do not use the vacuum cleaner if it’s blocked. Turn off and clear all blockages before continuing.
• Do not use the vacuum cleaner if the appliance malfunctions; has an abnormal noise or smell; is emitting smoke, or if you dropped or damaged it in any manner or any breakage is found during the operation.
• Do not misuse the cord. Never pull the appliance by the cord or pull to disconnect It from the outlet. Instead, grasp the plug and pull to disconnect.
• Do not use the vacuum cleaner to pick up large objects, hard or sharp objects such as glass, nails, screws, coins, etc that are likely to cause damage.
• Do not leave unattended when plugged in and/or switched on.
• Do not use a vacuum cleaner if it has been dropped, damaged, left outdoors, or dropped into liquid (water, etc).
• Do not close door on the cord or pull the cord around sharp edges or corners.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any objects Into openings.
• Do not use with any openings blocked and do not restrict airflow.
• Do not operate the appliance with a damaged cord or plug.
• Do not use without filters in place.
• Do not attempt to modify the product in any way.
• Empty the dust canister regularly for optimal operation of the vacuum.
• Keep hair, loose clothing, fingers, feet, and body parts away from openings or moving parts.
• Turn off controls before you connect or disconnect the appliance to or from the main supply.
• Disconnect the appliance from the power supply when not in use, before charging the dust filter, cleaning the filters or connecting/disconnecting the accessories.
• Use only on dry, indoor surfaces.
• Use only as described in this manual. Use only the manufacturer’s recommended attachments.
• Keep cord away from heated surfaces.
• Use extra care when vacuuming on stairs. Keep your work area well lit.
• Store your appliance indoors in a cool, dry area.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• Operate the appliance from a power source of the same voltage frequency and rating as indicated in the product identification plate.
• Only for domestic use. Industrial or commercial use invalidates the warranty.

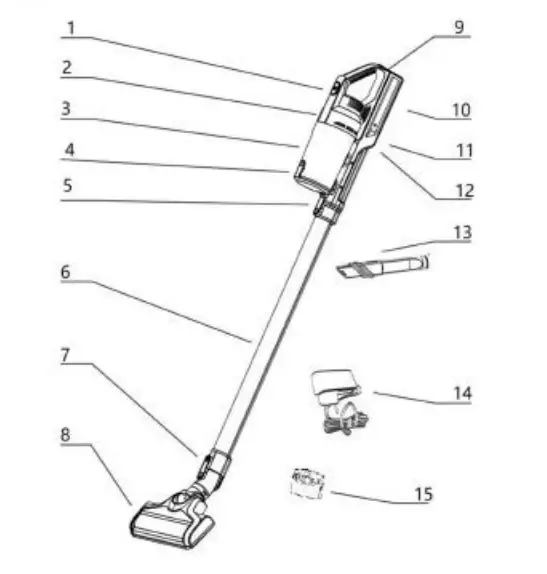

PARTS LIST

1. .OFF button
2. Motor unit
3. Dust cup
4. Dust cup release button
5. Main unit release button
6. Rod
7. Brush release button
8. Motor brush head
9. Battery unit release button
10. Battery unit
11. Charging socket
12. Charge light indicator
13. 2in1 nozzle
14. Adaptor
15. Hanging bracket

packing list

ASSEMBLY

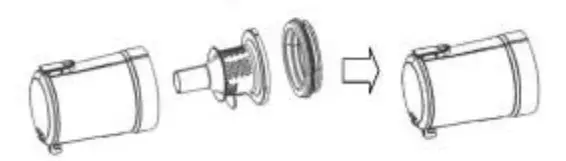

• Dust cup unit
  Assemble the dust cup with filters as shown below:

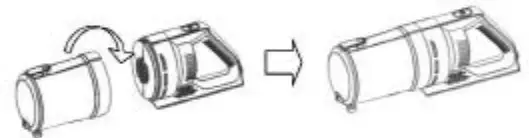

• Dust cup unit and motor unit
  Assemble the dust cup unit with the motor unit as shown in the following picture:

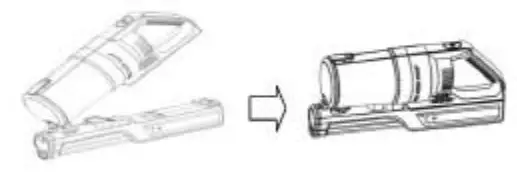

• Main unit to battery unit
  Assemble them as shown in the picture below:

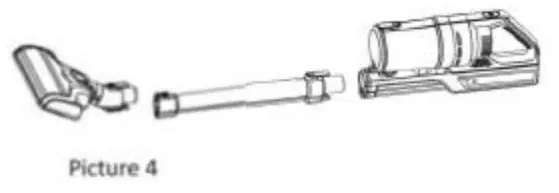

• Brush, rod, and main unit
  Assemble and connect them as shown here:
• Accessories to the main unit

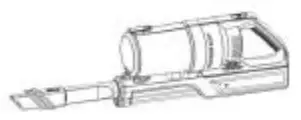

  Connect the nozzle to the main unit as shown below:

Connect the nozzle to the rod as shown below:

USAGE

• ON/OFF * Attach the preferred accessory before you switch on the vacuum. (i.e. main motorized brush or the 2 in 1 nozzle)
  * Press the ON / OFF button to switch on the vacuum cleaner
  * Press the button once more to make the vacuum cleaner work at high speed.
• Charging Before charging, make sure the adaptor is the right one.
  Insert the charging plug into the socket on the battery unit. When charging. the charging lamp is in red. Once fully charged. it should turn green.
  <> You can charge the battery unit separately or charge it with the assembled main unit. Warning: Do not leave the battery charging unattended.

MAINTENANCE

After every use, press the dust cup release button to empty the dust from the cup.

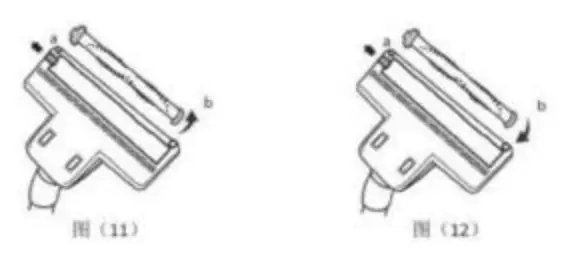

• Clean the main brush
