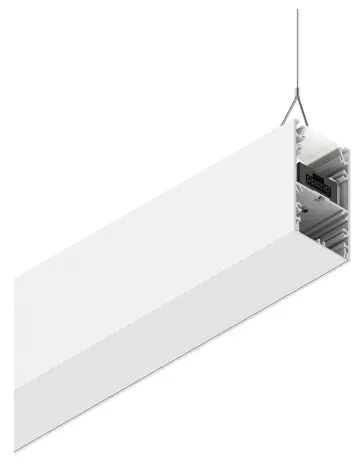

NLX1002C001 LUCKY EVO B Dual Light Emission LED System
User Manual
LUCKY EVO B
1002C0.01 + 1002E3.99
Features
Use: Indoor
Type of installation: SUSPENDED
Emission: DIRECT/INDIRECT
Optics: MICRO-STRUCTURED
Colour: WHITE
Dimming: DALI
Emergency: NO
L: 1968mm
A: 52mm
H: 91mm
Made in: ITALY
Warranty: 5 years
Weight: 6.8kg
Tech data
Luminaire input power: 88.8W
Luminaire luminouse flux: 7869lm
Indirect luminous flux: 4452lm
IP: 40
Insulation class: I
Supply voltage: 220-240V 50/60Hz
UGR: <19
SELV: Sì
Source
Light source: LED
Source power: 82W
Source luminous flux: 12617lm
Colour temperature: 4000K
CRI: >80
Colour tolerance: 3 Step MacAdam
LED lifespan: 50000h L80 B20
Compliance
CEI EN 60598-1:2015 + A11:2009. IEC 60598-2:2015 2-1
Standards
Photobiological risk: RISK GROUP 0Certified fixture in EXEMPT GROUP, in accordance with CEI EN 62471:2010-01, IEC TR 62778:2014.
View more product info
COMPLETION ACCESSORIES
 | LUCKY EVO B: MODULO CIECO L=1125 BIANCO | 100261.01 |
| LUCKY EVO B: MODULO CIECO L=1406 BIANCO | 100262.01 |
| LUCKY EVO B: MODULO CIECO L=1687 BIANCO | 100263.01 |

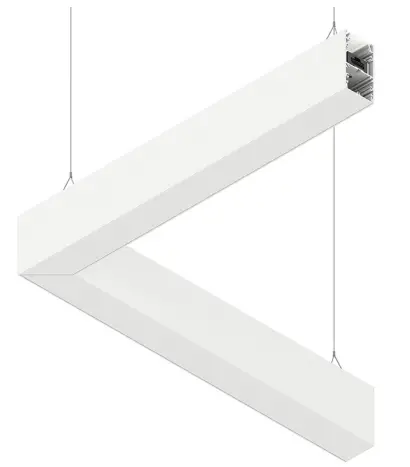

 | LUCKY EVO B: MODULO CIECO ANG. L=592 BI | 100264.01 |

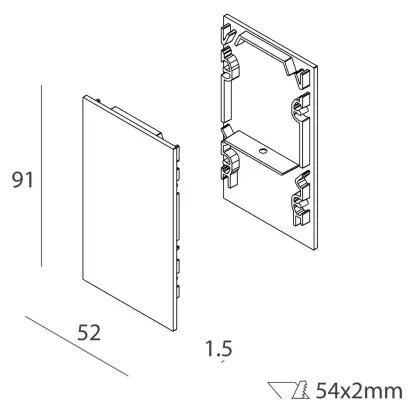

 | LUCKY EVO B: COPPIA TESTATE CHIUSURA BIA | 100247.01 |
 | LUCKY EVO B: KIT GIUNZIONE MODULI | 100248.01 |
MOUNTING ACCESSORIES
 | KIT ALIMENTAZIONE L1200 3P BIA | 108919.01 |
| KIT ALIMENTAZIONE L3000 3P BIA | 108920.01 |
| KIT ALIMENTAZIONE L1200 5P BIA | 108921.01 |
| KIT ALIMENTAZIONE L3000 5P BIA | 108922.01 |

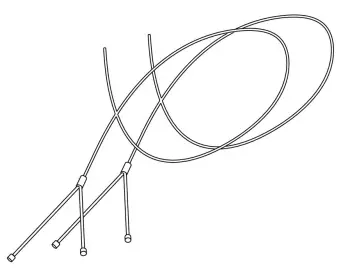

 | LUCKY EVO B: KIT COPPIA CAVI SOSP. 5 M | 1002B5.99 |
