Hepco Becker 506002-5 Tank Bag Ring Magnetic User Manual

506002-5 Tank Bag Ring Magnetic
User Manual

506002-5 Tank Bag Ring Magnetic

Suitable for: For all KAWASAKI and BMW models that have a 5-hole fastening of the tank lid
Item-no.: 506002-5

CONTENT
– 1x Mounting set with tank ring
– 2x Cover magnetic dome
– 2x Filister head screw M5x25
– 1x Countersunk screw M5x25

TOOLS REQUIRED

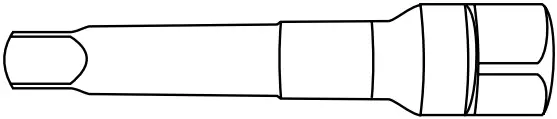

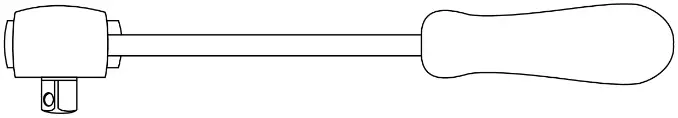

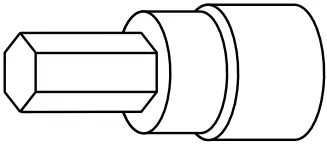

Set	Extension	Ratchet

IMPORTANT

If you are not sure how to execute a determined action, you should ask your local distributor to do it. First, tighten all screws only loosely. After mounting all parts, the screws should be tightened to the torque specified. This guarantees, that the product is mounted without tension. Observe the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!

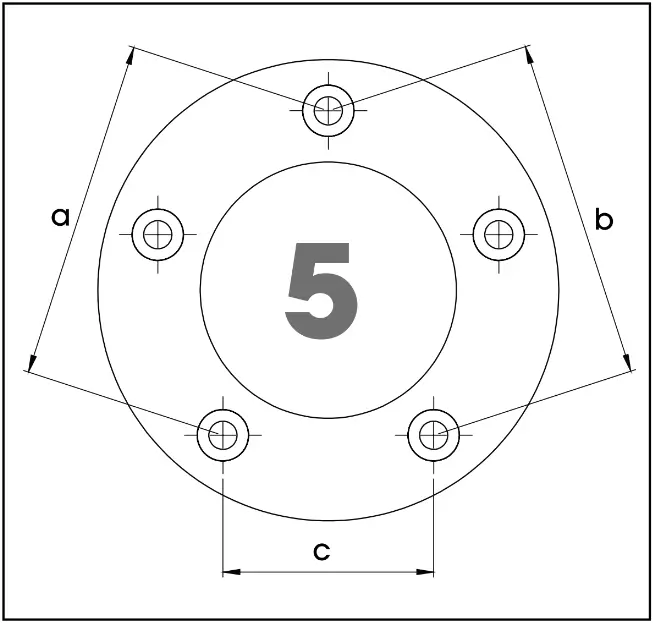

MAßE / DIMENSIONS

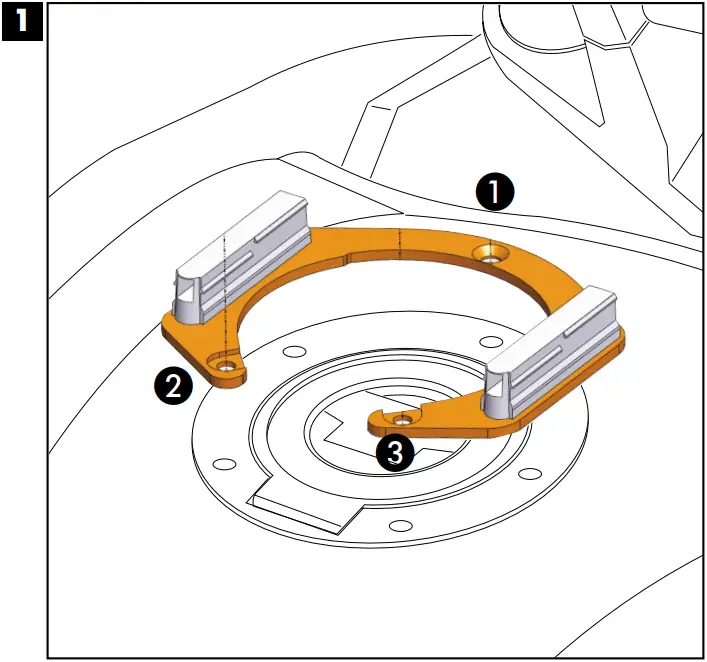

MOUNTING INSTRUCTIONS

1. Countersunk screw M5x25
2. Filister head screw M5x25
3. Filister head screw M5x25

More accessories: see our homepage.
