TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier User Manual

Taotronics

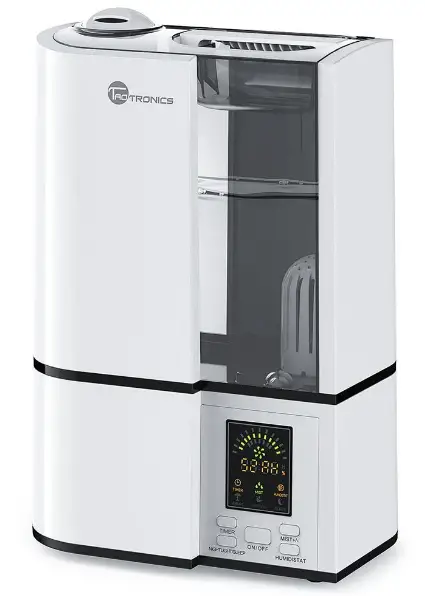

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier

STATEMENT

Thank you for purchasing a TaoTronics product that has been tested to meet our stringent quality standards. This product is covered with TaoTronics product and labor warranty for 12 months from the date of its original purchase.
Please email us with your Order ID and problem or issue via [email protected], we will respond within 24 hours. Please read the User Manual thoroughly. Clean and maintain the product as instructed. If any abnormalities occur, please refer to the Troubleshooting Guide first. This warranty is void if the defect is caused by accidental damage, misuse, abuse, neglect, improper repair or alteration by unauthorized persons, or a failure to follow operating instructions provided with the product including adding essential oils directly into the tank and base. This warranty does not apply to normal wear and tear or commercial use. In no event shall liability exceed the purchase price paid by the purchaser of the product. Under no circumstances shall there be liability for any loss – direct, indirect, or incidental – or consequential damage arising out of, or in connection with the use of the product.

SAFETY INSTRUCTIONS

The humidifier was made with safe and environmental protection materials, it has been certified and complied with the requirement of sale regions’ related regulations or laws.
IMPORTANT: Please read and save these SAFETY INSTRUCTIONS before using the device. Basic precautions should always be followed to reduce the risk of fire, electrical shock, injury to persons or damage to the product.

BEFORE USING THE HUMIDIFIER

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 1

1. Please extend the cord and check any signs of damage. Do not use the humidifier if the cord has been damaged.
2. DO NOT place this humidifier in wet environments.

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 2Please always keep the humidifier out of reach of patients & children & pet.

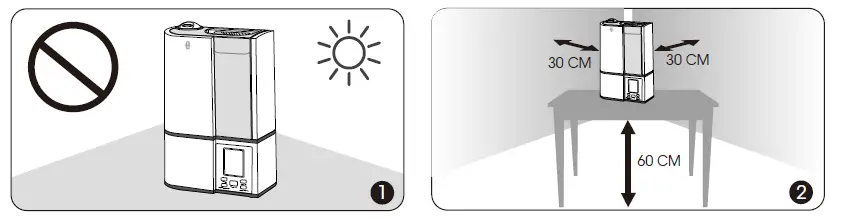

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 3

1. Please always place the unit on a smooth, flat, lint-free, non-metallic, waterproof and level surface and keep it away from direct sunlight.
2. Always place the unit 2 feet (60 cm) above the floor, 12 inches (30 cm) away from the wall, other appliances or wooden furniture.

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 41. DO NOT place the unit on carpet, towel or wood surface, which will block the vent and may damage the unit.
2. DO NOT place the humidifier near naked flames and heat sources, such as stove tops, ovens, radiators or computers.

WHEN USING THE HUMIDIFIER

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 51. DO NOT plug the unit with wet hands.
2. DO NOT direct the mist nozzle against the wall.

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 61. DO NOT use your hand or any other object to cover the nozzle while the unit is on to avoid damaging the product or causing injury.
2. DO NOT clean the unit while it is connected to a power source or while it is on.

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 71. DO NOT move or tilt the humidifier while it is in operation.
2. The most comfortable environmental humidity is between 40%-60%. Please adjust the mist as needed.

AFTER USING THE HUMIDIFIER

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 81. Always disconnect from a power source by pulling the plug when not in use.
2. Humidifier requires regular cleaning. Please refer to, and follow the Cleaning and Maintenance instructions.

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 91. DO NOT clean the humidifier right after turning it off if the humidifier has been working for a long time. Allow the humidifier to completely cool down before cleaning.
2. DO NOT attempt to repair or adjust any electrical or mechanical functions on this humidifier. Doing so will void your warranty.

PACKAGE CONTENTS


·  1 x TaoTronics Humidifier (Model: TT-AH001)

·  1 x Cleaning Brush

·  1 x Dustproof Sponge

·  1 x Thank You Card

·  1 x User Manual

SPECIFICATIONS

ModelTT-AH001
Operating VoltageUS/CA: AC 100-120V 50 / 60Hz


Rated Power

Min: 18W

Max: 30W

Water Tank Capacity4.0L / 1.06Gal


Mist Output

Min: 100±15ml/h Medium: 200±23ml/h

Max: 300±30ml/h

Working Time on a Full Tank12-30h
Recommended Room Size10-30 m² / 107-322 ft²
Noise≤38dB
Dimensions205 x 135 x 300mm / 8.1 x 5.3 x 11.8in
Net Weight1600g / 56.4oz

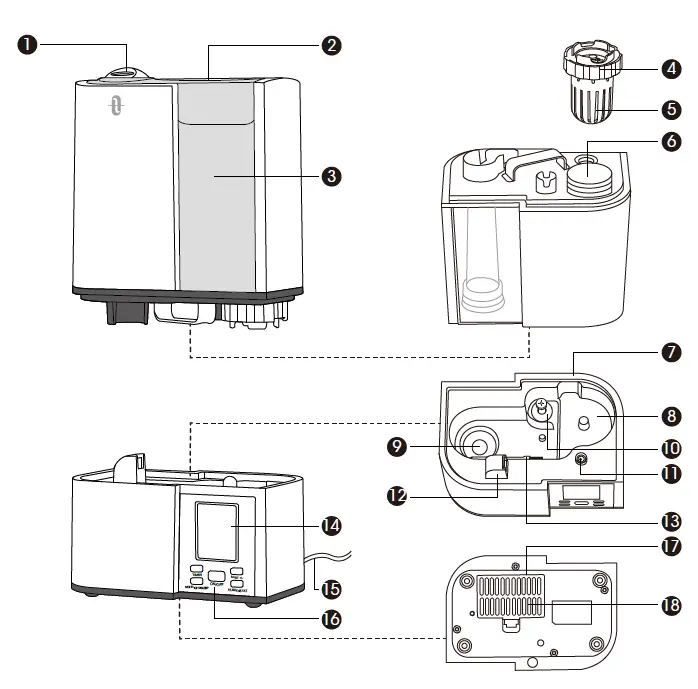

PRODUCT DIAGRAM

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 10

  1.  Nozzle
  2. Handle
  3. Water Tank
  4. Tank Cap
  5. Filter
  6. Water Inlet
  7. Base
  8. Water Reservoir
  9. Atomizer
  10. Floater
  11. Nightlight
  12. Air Outlet
  13. Cleaning Brush
  14. LED Display
  15. Power Cord
  16. Control Buttons
  17. Air Inlet
  18. Dustproof Sponge

OPERATIONS AND FUNCTIONS

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 11

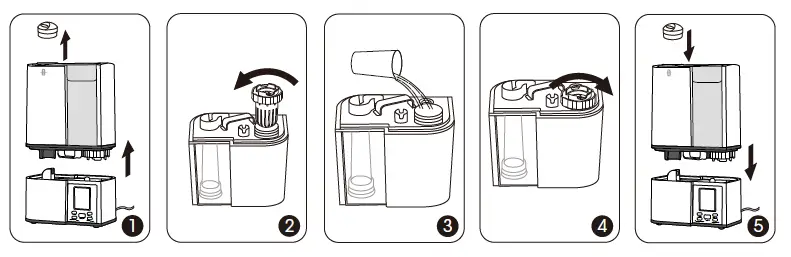

Add water
  1. Remove the nozzle and turn the water tank upside down.
  2. Remove the tank cap and fill the tank with clean and cool water only.
  3. Attach the tank cap and place the tank back onto the base. Make sure it fits together securely so that water can go from the tank to the reservoir. Put the nozzle back on.
    TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 12

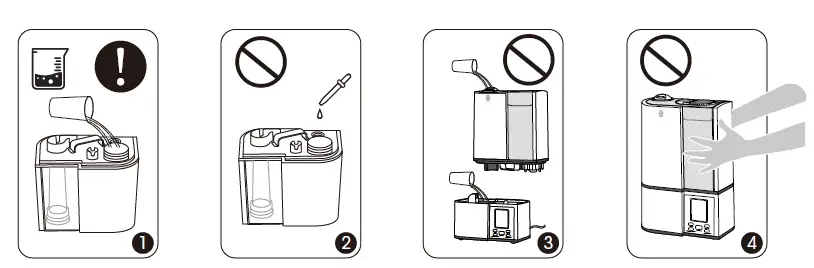

  1. If tap water is too hard, it is recommended to use filtered or distilled water to avoid white dust. DO NOT use hot water.
  2. DO NOT add any essential oils or medicinal tablets into the water tank.
  3. DO NOT add water into the base or through nozzle.
  4. DO NOT move the humidifier while the water tank is full of water to avoid leakage or base overfilling.

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 13

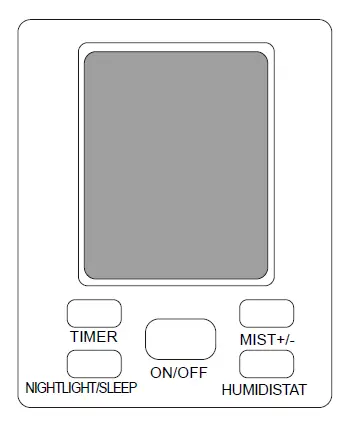

Connect to a power source, all the indicators on the LED display will flash once. The unit is in standby mode now with the LED display showing the environment humidity level.

Power On / Off
  1. Press the Power Button once to enter medium level misting by default. The LED display will show the mist level and environment humidity level.
  2. Press again to stop misting, the fan will continue working for 5 minutes to dry the mist tube.
Mist Adjustment

When the unit is on, press the Mist Button to adjust the mist between low / medium / high levels.

Timer Setting

Press the Timer Button to set the timer from 1 hour to 24 hours, the timer will flash three times to confirm your setting. Once set, the LED display will show the countdown timer and the environment humidity level alternately. When time is up, the unit will automatically turn off.

Nightlight / Sleep Mode
  1. Press the Nightlight Button / Sleep Button once to turn on the nightlight.
  2. Press it again to enter sleep mode with the mist level switching to low level. All the indicators on the LED display will turn off except the sleep indicator.
  3. In sleep mode, all the other buttons remain functional.
  4. Press one more time to exit sleep mode.
Humidity Setting
  1. Press the Humidity Button to set the humidity level from 30% to 95% with an increase /decrease of 5% in each tap.
  2. The humidity level set will flash three times to confirm your setting.
  3. The unit will stop misting once the environment humidity reaches the preset humidity level and resume misting once the environment humidity level is below the preset level.
  4. To exit the humidity setting, press the Humidity Button one more time when humidity is set to 95% or restart the unit.
    The most comfortable environmental humidity is between 40%-60%. Please adjust the mist as needed.

Low Water Protection: Auto Shut-off the Humidifier
When there is not enough water inside the water reservoir, the humidifier will stop misting and a waterless icon will light up on the display. It is designed for safety to prevent the humidifier from possibly overheating and damaging the atomizer.

CLEANING AND MAINTENANCE

Caution

  1. DO NOT submerge the base in water.
  2. Make sure water does not enter the base through the air outlet, air inlet, or the control buttons and LED display.
  3. DO NOT wash any part of this humidifier in the dishwasher which will damage the humidifier and void the warranty.

Daily Maintenance
Turn off the humidifier, unplug it from the power source. Drain water from the tank, reservoir and base.

Weekly Maintenance

  1. To properly clean your humidifier, we recommend you to remove scale and disinfect the humidifier separately.
  2. DO NOT mix vinegar and bleach solutions together. Do not use more than 1 tsp. of bleach per gallon of water to avoid damaging your humidifier.
  3. Please make sure the rubber ring & rubber cap & spring on the tank cap is installed properly after cleaning to avoid water leakage. Please refer to the diagram on page 14.

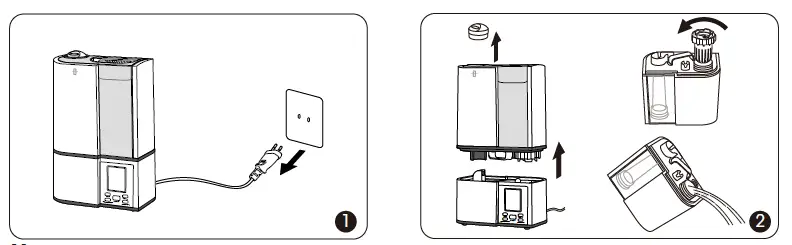

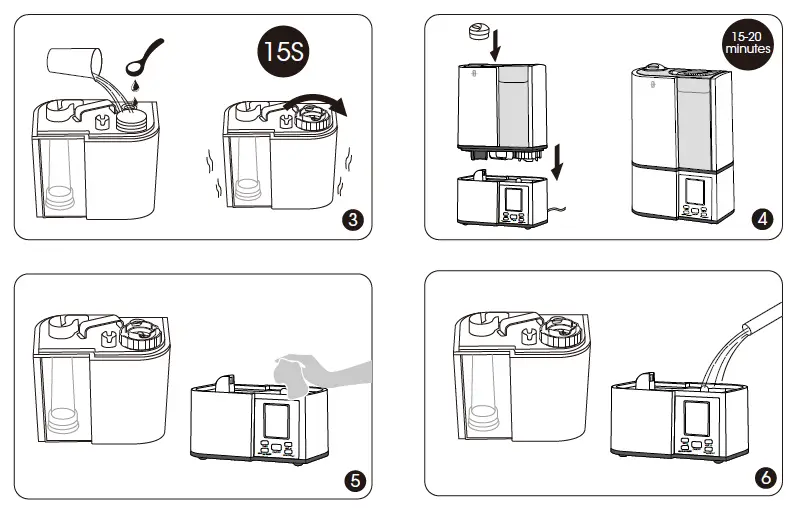

Scale Removal Instructions

TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 15TAOTRONICS TT-AH001 Ultrasonic Cool Mist Humidifier 16

  1. Turn off and unplug the humidifier. Remove the nozzle.
  2. Remove the water tank from the base. Remove the tank cap. Make sure that the white sealing ring does not come off. Drain water from the water tank and base. Remove any accessories and set aside.
  3. Fill the water tank half full. Add in 1 teaspoon of undiluted distilled white vinegar. Attach the tank cap and shake for 15 seconds.
  4. Place the tank onto the base. The vinegar solution will enter the water reservoir to loosen mineral buildup (scale) on the atomizer, water floater and the bottom of the water tank. Set still for 15-20 minutes.
  5. Uncap the tank cap and drain the solution. Wipe the atomizer and floater with a soft cloth to remove loosened mineral deposits.
  6. Rinse both the water reservoir and water tank until the smell of vinegar (for scale removal) or bleach solution (for disinfecting, see below) is gone.

Disinfecting Instructions

  1. Follow steps 1-2 of the previous section on scale removal.
  2. Fill the water tank half full. Add in ½ tsp of bleach. Place the tank cap back on. Swish the solution around in tank. Place the tank on the base. The bleach solution will enter and disinfect the water reservoir as well as the other components. Set still for 15-20 minutes.
  3. Follow steps 4-6 of the previous section on scale removal to complete disinfecting the humidifier.

Clean the Dustproof Sponge

Clean the dustproof sponge (at the bottom of base) with water or detergent once a month. Put it back in place after cleaning.

End-Of-Season Care and Storage

  1. Follow the cleaning instructions when the humidifier will not be used for at least one week, or at the end of the season. Remove any accessories used with the humidifier and allow the humidifier and accessories to dry completely before storing.
  2. DO NOT store with water inside the base, water reservoir, or tank.
  3. Pack the unit safely and store in a cool, dry location.

TROUBLESHOOTING GUIDE

  1. If the information listed in the troubleshooting guide can’t solve your problem, please email us for help.
  2. Failure to keep this unit clean from mineral deposits may affect the operation of this unit.
  3. Customer failure to follow these instructions may void the warranty.












    LED display is on, no mist or little mist is produced

    Not enough water inside the

    tank

    Refill and reinstall the water

    tank

    Mist level is set too lowAdjust to maximum mist


    Preset humidity is set too low

    Check if current humidity is higher than preset humidity, reset humidity to a higher

    level



    The base might be overfilled

    Remove the tank, empty

    the base & replace the filled tank on the empty base



    Mineral buildup on atomizer

    Feel if air comes out from

    the the nozzle, if yes, then clean water scale on the atomizer as instructed













    Tank leakage



    Tank may be damaged

    Check for possible cracks in the tank, replace if

    necessary

    Tank cap is not tightened securelyTighten the tank cap
    2 Rubber ring was not installed on the tank capCheck the tank cap for rubber ring, rubber cap and spring, contact us if

    any is missing



    1 Spring stuck

    Ensure the 1 spring is secured properly to the tank allowing water to pass through to the base








    Mist height is low, damping surrounding desk or floor. Condensation forms around humidifiers or on windows and walls





    Mist level is set too high for the room size

    1.  Check if the room is too humid, adjust to lower mist, 40%-60% works best

    2.  Open door and windows, or change to a larger

    room





    Air inlet is blocked

    The humidifier should be placed on a hard flat surface, 2 feet above the floor, 12 inches away from the wall. Point Mist Outlet

    away from wall or window

    Low indoor temperature leads to liquefactionRaise the room temperature to 25°C/77°F

  4.











    Poor humidification



    Mist level is set too low for the room size

    1-1. Adjust to maximum mist 1-2. Close door or windows to

    reduce air ventilation, or

    change to a smaller room





    Air inlet is blocked

    Humidifier should be

    placed on a hard flat surface, 2 feet above the floor, 12 inches away from the wall

    Low indoor temperature leads to liquefactionRaise the room temperature to 25°C/77°F


    White Dust Appears / Black coating in the base flakes off



    Tap water may contain too many minerals

    Replace with filtered or distilled water or use with a TaoTronics Demineralization Cartridge




    Strange Odor





    Unit needs to be cleaned

    Clean the humidifier as instructed
    Leave the empty water tank open in a cool place for 12 hours without the water tank cap attached
    Strange water noiseWater is going down to the water reservoirThis is normal while it is working


    A humidifier is getting too hot



    The unit works for too long

    Power off and place in a well-ventilated place for 10 minutes


WARRANTY

This product is covered with TaoTronics product and labor warranty for 12 months from the date of its original purchase. You will be given a warranty extension of 18 months if the product is registered on our website (www.taotronics.com). Any defective part will be, at the discretion of SUNVALLEYTEK INTERNATIONAL INC. , repaired or replaced at no charge if the appliance has not been tampered with and has been used according to these printed directions. If any problems occur, please contact TaoTronics support ([email protected]) immediately to launch a warranty claim. Specify the model number and your Amazon order number. Our Consumer Service Representative will respond within 1 business day, advise you how to correct the problem yourself, or instruct you on how to return the defective unit back to us for repair or replacement. We can only provide after-sales service for products that are sold by TaoTronics or TaoTronics authorized retailers and distributors. If you have purchased your unit from a different place, please contact your seller for return and warranty issues.

CONTACT / TAOTRONICS CUSTOMER CARE

PLEASE CONTACT US BEFORE RETURNING THIS PRODUCT TO THE STORE. EMAIL TAOTRONICS CUSTOMER CARE FOR PROBLEMS AND QUESTIONS. WE WILL RESPOND WITHIN 1 BUSINESS DAY.

Sunvalleytek USA, Inc. Address: 46724 Lakeview Blvd, Fremont, CA 94538 E-mail: [email protected](US) [email protected](CA) s[email protected](UK)
Tel: 1-888-456-8468 (Monday-Friday: 9:00 – 17:00 PST)
Website: www.taotronics.com
