CORGI 72401 22mm Inline Magnetic Central Heating Filter
USE OF FILTER
- Removing iron, nickel and cobalt particles in the water
- Saving energy by 6% per annum
- Providing consistent protection for the boiling system
- Reducing carbon emission
- Saving maintenance cost
- Extending longevity of the system
- No extra operating cost
- Easy to install and clean.
New Design 9200 Gauss Boiler Magnetic Water Filter (C-INLINE)
- Material of main body: PA66+30% glass fibre
- Working pressure: 3 bar
- Maximum pressure: 12 bar
- Maximum temperature: 120°C
- Magnetic field of rod: 9200 gauss
- Connection 2 x ball valves – Ø 22 compression
- FiIter volume: 530ml
INSTALLATION POSITION

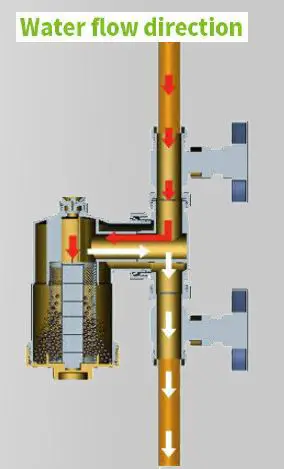

WATER FLOW DIRECTION
