Wall Mounted Lamp
User Manual
P300409-31M-30
Dimensions:
Width: 32 in
Extends: 2-1/4 in
Height: 4-11/16 in (glass facing up)
Description:

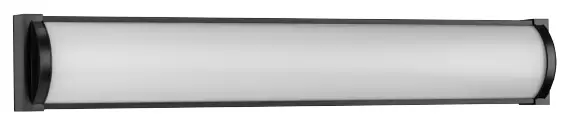

Barril Collection 32 in. Matte Black Large Modern Integrated LED Linear Vanity Light
Specifications:
- Diffused Plastic Curved Panel
- Dimmable to 10% brightness (See Dimming Notes)
- Backplate covers a standard 4” recessed outlet box: 13.78 in W., 4.37 in ht., 0.78 in depth
- Mounting backplate for outlet box included
- 15 in of wire supplied
- Americans With Disabilities Act (ADA) compliant
Performance:
| Input Power | 30 W |
| Input Voltage | 120 V |
| Input Frequency | 60 Hz |
| Lumens/LPW (Delivered) | 2,593/86 (LM-79) |
| CRI | 90 CRI |
| Life (hours) | 50000 (L70/TM-21) |
| EMI/RFI | FCC Title 47, Part 15, Class B |
| Warranty | 5-year Limited Warranty |
| Labels | cCSAus Damp Location Listed |
| Meets California Title 24 JA8-2016 |
Photometrics:
| ELECTRICAL DATA | P300409-31M-30 |
| Input Voltage | 120 V |
| Input Frequency | 60 Hz |
| THD | <20% |
| EMI/RFI | FCC Title 47, Part 15, Class B |
| Operating Temperature | -30 °C to 30 °C |
| Dimming | Yes* |
Over-voltage, over-current, short-circuit protected *See Dimming Notes for more information
Dimming Notes:
P300409-31M-30 is designed to be compatible with many ELV/Reverse Phase Triac/Forward Phase controls.
The following is a partial list of known compatible dimmer controls.
Dimming Controls:
Eaton AAL06
Eaton SAL06P
Leviton 6681
Leviton IPI06-1LZ
Leviton 6674
Lutron NTEVL-300
Lutron DVELV-300P
Lutron DVCL-253P
Lutron Caseta Wireless
Lutron AYCL-153P
Lutron SCL-153P
Lutron TGCL-153-PH-WH
Lutron MACL-153M
Dimming capabilities will vary depending on the dimmer control, load, and circuit installation.
Always refer to dimmer manufacturer instructions or a controls specialist for specific requirements.
Dimmer control brand names where identified above are trade names or registered trademarks of each respective company.
Project:
Fixture Type:
Location:
Contact:
701 Millennium Blvd. Greenville, South Carolina 29607
www.progresslighting.com
Rev. 12/22
