  coolado T·PUMP X Cordless High-Pressure Air Pump User Manual

Thank you for purchasing the Coolado tPump X!
Discover the endless usages of this little smart device and share your experience on our website: www.coolado.com

Please read this instruction manual carefully before using this product for the first time. It will guide you to use it correctly and remind you of the relevant precautions. This pump is a professional tool and not a toy.
This product is a portable smart air pump, suitable for the inflation of car tires, motorcycle tires, bicycle tires, balls and other high-pressure inflatables. When using this pump to inflate, please choose the correct air pressure value required by the product (see list of preset values for indication only).
The product and tube will get hot after long use (>10 min) After long use please allow the pump to cool down for at least 15 minutes before proceeding. Keep away from children.

The tPump X is a portable smart air compressor, suitable for the inflation of car tires, motorcycle tires, bicycle tires, balls, and other high-pressure inflatables.

BOX CONTENTS

• tPump X
• Tube with Schrader valve adaptor
• 3 accessory adaptors
  • Presta valve adaptor
  • Plastic nozzle adaptor
  • Ball needle adaptor
• USB-C recharge cable
• Protective case

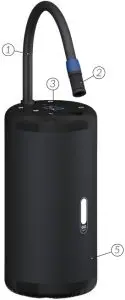

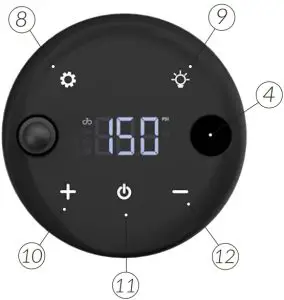

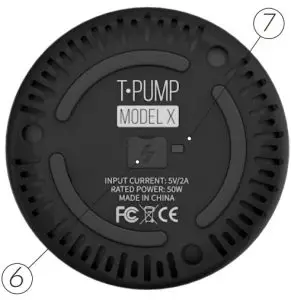

PRODUCT DESCRIPTION

1. Tube
2. Schrader Valve
3. Touchscreen display
4. Tube socket
5. Signal flashlight
6. Charging port (USB-C)
7. Battery indicator light
8. Unit switch button
9. Light on/off button
10. “ + ” button
11. Start-Stop button
12. ” – ” button

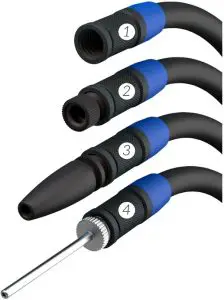

INCLUDED ADAPTORS

1. Tube with Schrader Valve
2. Presta valve adaptor
3. Plastic nozzle adaptor
4. Ball needle adaptor


OPERATING INSTRUCTIONS

Turning on the pump and display

1. Pull the hose out of the pump and it will automatically turn on and the display will light up.
2. ln the power-on state after 180 seconds without any operation, the display will automatically turn off.
3. When the hose is pulled out, you can press and hold the “Start -Stop button” to turn on again after automatic turn off.

Battery indicator

The battery indicator light is always on by showing different colors to indicate the remaining power:

1. Steady blue light: battery power >30%
2. Steady red light: battery power 20% -30%
3. Flashing Red light: battery power <20% needs to be charged

Charging

• Please charge the battery before using the product for the first time.
• Use the charging cable to connect to a 5V 2A charger (not included).
• The battery indicator will light when charging:
  # Blue light flashing: charging
  # Green light steady: fully charged

USE OF THE DIFFERENT ADAPTORS

SCHRADER Valve

The tube is standard equipped with a Schrader valve suitable for:

1. Mountain bikes
2. Electric bikes
3. Motorcycles
4. Cars
   just connect it directly.

PRESTA Valve adaptor

Connect the Presta adapter to the tube of the pump, then connect the tube to the Presta valve suitable for:

1. Road bikes
2. Mountain bike

Ball needle adaptor
Connect the ball needle adapter to the tube of the pump, moisture the needle a little and plug it into the valve of the ball. Suitable for:

1. Basketball,
2. Football
3. Other kinds of balls.

Plastic nozzle adaptor
Connect the plastic nozzle adapter to the tube of the pump, use this nozzle on soft rubber valves. Suitable for:

1. Pool floats
2. Blow up toys

DETECTION OF AIR PRESSURE

In the power-on state, when the air tube is connected to the product to inflate the display will show the actual air pressure value.

CHOOSE THE RIGHT AIR PRESSURE

In order to ensure safety, before using the product to inflate, please inquire about the air pressure value required by the inflated item by reading the instructions or other ways to avoid accidents caused by low-pressure or over-pressure.
Suitable air pressure value for common products

PRODUCT PARAMETERS

Common unit conversion: 1 bar= 14.5psi, 1 bar= 100kPa.

PRESET PRESSURE VALUES

MODE SWITCH

Short press “Mode button” to switch between the following five inflation scenarios. Select the correct inflation scene before inflation, and long-press the “mode button” to switch between bar and psi.
The factory default preset pressure value is 35psi,the preset pressure can be adjusted freely before operation (values and units can be memorized). Adjustable range: 3-150psi

Bicycle mode light: the default 45psi
Adjustable range: 30-65psi

Motorcycle mode light: the default 2.4bar
Adjustable range: 1.8-3.0bar

Car mode light: the default 2.5bar
Adjustable range: 1.8-3.5bar

Ball mode light: default 8psi
Adjustable range: 4-16psi

FINE-TUNING PRESETS

After selecting the scene mode, short press “+” or “-” to accurately adjust the preset pressure value; Long press “+” or “-” to quickly adjust the pressure value

When adjusting the preset pressure value, the number flashes to indicate the target pressure adjustment status, and the long light digital indicates the current pressure value.

MULTIFUNCTIONAL LIGHTING

Press the “light button” to turn on the light. Press repeatedly to switch the light mode to white light, red warning light, and red SOS light.
START INFLATING
Press the “start/stop button” to start inflation. The screen will display the current pressure value. The pump will generate normally between 75-80 dB noise during inflation. Working for a long time, the hose and the pump itself will get hot, avoid long-term usage of the pump (>10 minutes) and avoid contact with the hot air hose and the pump. Let it cool before you touch it.
STOP INFLATING
When the air pressure reaches the preset pressure value, the air pump will automatically stop working.
During the inflation process, you can also stop the pump by short pressing the “start/stop button”

SHUTDOWN

In the power-on state, the pump will power off automatically after inserting the air hose after 10 seconds without any operation. In the power-on state, press the Start/stop button for several seconds to shut down manually

BATTERY AND BATTERY LIFE

• Fully charged at 25°C ambient temperature, the continuous working time is about 30 minutes.
• Higher pressures or lower ambient temperatures will reduce the battery working time.

SPECIAL NOTES

• The inflation pressure of items such as balloons, toy balls, swimming rings and other products is lower than the range of this air pump, and the inflation cannot be automatically stopped by the preset pressure. The Coolado ePump is a better choice for these items.
• Before inflating, please confirm the air pressure value required to avoid injury caused by over-inflation bursting.
• Please avoid putting it in a high-temperature environment such as a car that can be exposed to direct sunlight;
• Do not bend or step on the inflation tube during inflation to keep the airflow smooth.
• Stay near the pump when the air pump is working and make sure the air pump is not over-pressurizing.
• Protect the pump against moisture, heavy falls, water immersion, and mud or sand intrusion;
• There is a DC motor in the air pump, which may generate electric sparks during operation. So do not put it near flammable liquids or gases when in use.
• This product is a professional tool and not a toy, keep away from children; keep a safe distance from children when inflating objects;
• Before setting the inflation pressure value, please make sure that you have selected the correct measurement unit, it may lead to high air pressure danger.3

TROUBLESHOOTING

On our website, you can find this manual in multiple languages.
Scan this QR Code or go to our website: https://www.coolado.com/manuals

CLEANING & MAINTENANCE

• The Coolado t-Pump needs only to be cleaned on the outside surface with a dry, soft cloth.
• The product has a built-in non-removable lithium battery. Please do not throw the product into fire or discard il carelessly. The lithium battery may cause fire, spontaneous combustion or explosion due to overheating, impact and water ingress.
• The storage temperature of the product should not be lower than -10 ° C or higher than 45 ° C. Excessive heat or cold will shorten the product’s lifetime and damage the built-in battery.
• The battery may be damaged if not used for a long time. It is recommended to charge the pump at least once every three months.

WARRANTY

• The Coolado warranty is in accordance with the EU law and regulations
• 15 days money-back guarantee from purchasing date.
  The pump must be returned to its original undamaged package. (See return policy on our website)
• Coolado provides a 1-year warranty for failures caused by normal operation according to the manual.
• Improper use of the product and man-made damage is not covered by the warranty.
• Replace the product; it needs to be packaged completely.
• The warranty is limited to the value of the pump.
• Damages to the Coolado tPump caused by, but not limited to abuse, abnormal operation, water damage, non-advised power supply, high temperatures, motor burn caused by the high-voltage power supply, All man-made damage. Self-disassembly and accidental damage, damages caused by force majeure are not covered by the warranty.
• The liability of Coolado will ALWAYS be limited to the value of the pump.
• Coolado will not be liable for damages to persons and/or property
