AMPED SERIES – Large
User manual
Instructions
| 1 |  | Volume up – Short press |
 | Next song – Long press for 2 seconds | |
| 2 |  | Previous song – Long press for 2 seconds |
 | Volume down – Short press | |
| 3 |  | Disconnect the Bluetooth Pairing – Long press for 2 seconds |
 | Connect to the last paired device – Long press for 2 seconds | |
 | Switch EQ modes – Double press to switch between Standard / Bass / 3D | |
| 4 |  | Play / Pause – Short press |
 | Answer call – Short press | |
 | End call – Short press | |
 | Enter TWS pairing mode with another Amped Speaker – Long press for 2 seconds | |
 | Refuse call – Long press | |
 | Reset – Long press for 10 seconds | |
 | Redial the last number – Double press | |
| 5 |  | Turn on – Long press for 2 seconds |
 | Lights on/off – Short press power button | |
 | Turn off – Long press 2 seconds to turn off the speaker | |
 | Forget pairing – Press and hold for 8 seconds |
LED Light Indicator Pattern
 | Bluetooth not connected – Bluetooth indicator light flashes quickly |
 | Bluetooth connected – Bluetooth indicator light is active |
 | Charging – The battery status lights indicate your charge level |
 | Charged – All battery status lights are active |
Technical Specifications
Bluetooth pairing name: Amped Series Large 3S-2450
Battery & Charging
Capacity: 7.2V / 2500mAh
Battery life: 9 hrs
Auto-turn of: within 10 mins of inactivity
Standby time: 180 days
Charge time: 3 – 4 hrs
Charge current: 5V / 1A
Charge method: USB-C input
Durability
IPX rating: IPX7 (floats)
Operating temp: 10°C – 55°C
Input & Control

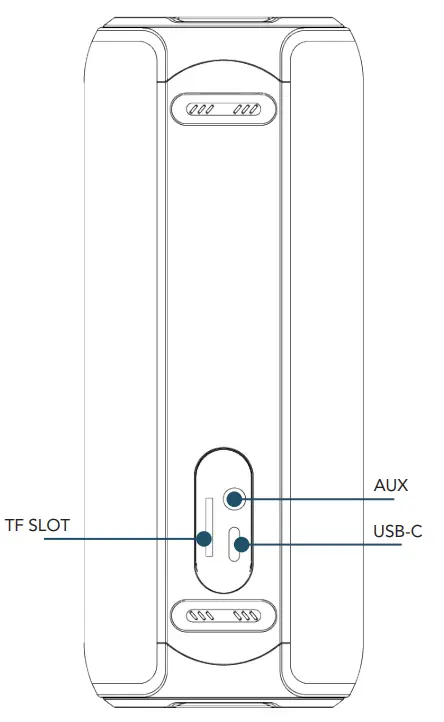

Input: USB-C (charging), AUX, TF Slot
Cables included: 1x USB-C
Speaker
Driver/s: 1x 50*90mm / 30W
S/N: 82db
Frequency response: 70-20k Hz
EQ Settings: Normal / Bass / 3D
Bluetooth (BT)
Version: 5.0
Chipset: Action 2819+DSP
BT range: <10m/33ft
TWS range: <10m/33ft
BT frequency: 2.4GHz
Mic
Sensitivity: -53.3 (±3) db
Frequency range: 60 Hz – 13 KHz
Range: <50cm/1.6ft
Thank you for your support!
We are Australia’s newest audio brand, created in Melbourne and we’d love to hear about your experience with our product
https://waveaudio.com.au/pages/reviews/QR
Scan the QR code and share your experience to receive 10% off your next purchase.
waveaudio.com.au
©2023 3sixT. All rights reserved.
This product may be covered by one or more patents.
Tenancy: E1/5 Grevillea Pl Brisbane Airport QLD 4008.
EU Importer: Wentronic GmbH, Pillmannstraße 38112,12 Braunschweig Germany.
Dimensions: 90 x 94.5 x 224 mm
Weight: 880g
Material: ABS + TPU + Fabric
Only charge with devices rated and marked with 5V to avoid damage to the speaker. Do not open up the speaker, it voids the warranty and may damage the product. Rechargeable batteries have a limited number of charge cycles.
Battery life and number of charge cycles varies by use and settings. Never place the speaker close to high temperature heat sources. To keep the warranty valid, never try to repair the product yourself.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
For information on compliance, warranty, terms & conditions please visit our website at waveaudio.com.au
