Fengma Single 1:14 Twelve Channel Stunt Twisting Remote Control Car Instructions

INSTRUCTIONS

Thank you for using our company’s toy products. In order to have a better understanding of this product, please read the following instructions before use, which will bring you a different operating experience.

NOTE

This product is suitable for Children 8 years old and above. After assembled / charged by adults, play with children again.

Please Use This Product Under The Supervision Of An Adult.

Warning: please do not disassemble or modify the product without authorization, any changes may cause the product to not work properly.

SPECIAL WARNING:

The output voltage used by the charging plug should be 5V. Please do not use the quick-charging plug and quick-charging cable, so as to avoid the condition that the too quick current output during charging causes overheated battery charging and results in dangerous matters such as product burnout.

Product Configuration

R/C Car


Handle Remote Control

Rechargeable battery pack

USB Charging Cable

Gravity induction watch R/C (either-or)

3V CR2032 button battery Figure

USB Charging Cable


Built in 3.7N/ lithium battery

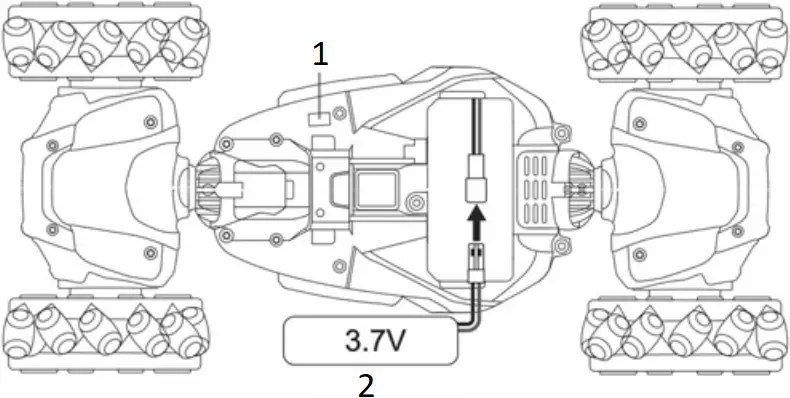

Car Batter Installation

1. ON/OFF
2. Rechargeable battery pack

Battery installation
Open the body battery cover, Connect the rechargeable battery pack to the power socket Close the battery rover

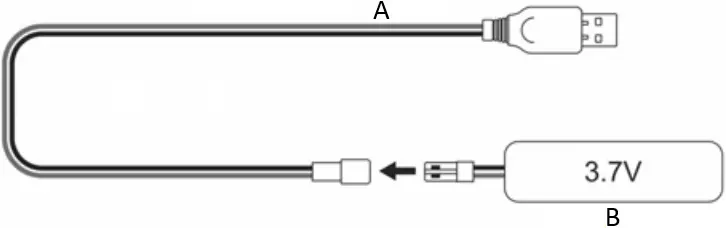

Battery Charging Mode

A USB Charging Cable
B Rechargeable battery pack

1. Connect the Rechargeable battery pack to the USB charging cable
2. Plug the other end of the USB charging cable into the USB port for charging

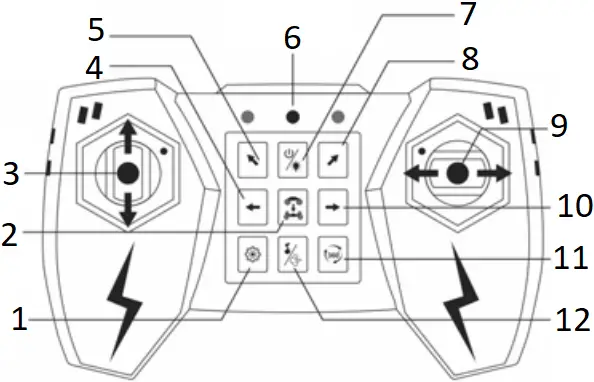

R/C Function introduction and battery installation

1. Demo
2. Deformation
3. Forward
   Backward
4. Left Transverse
5. Left 45°
6. Indicator Light
7. ON/OFF/Lights
8. Right 45°
9. Turn Left
   Turn Right
10. Right Transverse
11. 360° Rotate
12. Music/ Atomizing

Note: The effective control distance between the remote control and the vehicle is approximately 40 meters. If the remote control is out of frequency or does not operate during frequency synchronization, it will hibernate after 1 minute. If operation is necessary, restart the remote control and the vehicle’s power switch.

Battery installation

Open the body battery cover and install 2×1.5V “AA” non-rechargeable batteries in the right polarity direction and cover the battery cover.

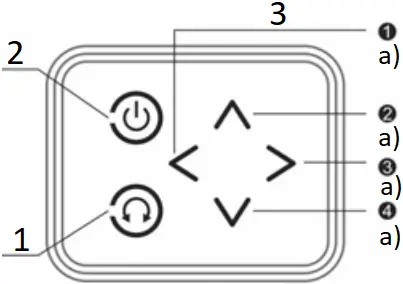

Function introduction of remote controller of gravity induction Watch

1. ON /OFF
   Long press: power switch
   Short press: Lock all function, All lights are on at the same time.
   Short press again to release, Light 2 and Light 3 are on.
2. Function Conversion
   Long press: Enter automatic presentation mode (Press any key to exit)
   Short press: Enter mode two (Press any key to exit)
3. The effective control distance of the gravity induction watch remote controller is about 35m.
   a) Light

Gravity sensing watch remote control battery description

2 Gravity Induction remote controls (Operate as shown below)

1. Built in 3.7V lithium battery
2. 3V CR2032 button battery

1. BUILT-IN BATTERY CHARGING

1. USB Charging Cable

1. Connect the Gravity Induction R/C to the USB charging cable
2. Plug the other end of the USB charging cable into the USB port for charging

2. INSTALL THE BATTERY

Open the battery cover, Install 3V CR2032 button battery, Close the battery cover.

Handle Remote Control frequency alignment

1. First, turn on the power switch of the automobile body. The light of the automobile body flashes.
   Then, turn on the power switch of the remote controller, and start frequency alignment. When the frequency alignment succeeds, the light of the automobile body goes on.
2. When the frequency alignment fails, the power light of the remote controller and the light of the automobile body flash continuously. When the connection fails, please repeat the above operations.
3. No operation after frequency alignment. After 1 minute, the remote control car and remote control enter sleep mode, and the frequency alignment connection needs to be reconnected.

Gravity induction watch R/C frequency alignment

1. Long press the power switch of the gravity remote controller to start the frequency alignment. When the frequency alignment succeeds, the light 2 and light 3 of the remote controller go on. In case of no operational, the sleep mode starts one minute later
2. When the frequency alignment fails, the light 1 and light 4 of the remote controller flash continuously. When the connection fails, please repeat the above operations.
3. No operation after frequency alignment. After 1 minute, the remote control car and remote control enter sleep mode, and the frequency alignment connection needs to be reconnected.

Gravity induction watch R/C Operating instructions

MODEL 1

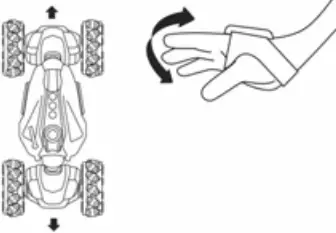

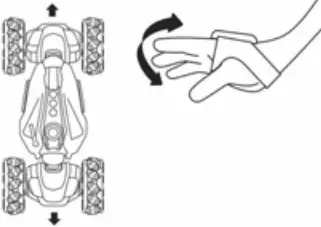

Palm downward, the forward light 2 goes on, the R/C car goes forward;
Palm upward, the backward light 4 goes on, the R/C car goes backward.

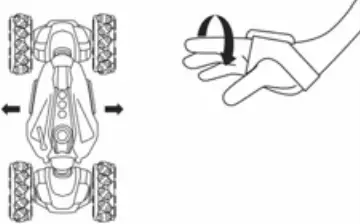

Palm towards left, light 1 goes on, the R/C car left crosswise;
Palm towards right, light 3 goes on, the R/C car right crosswise.

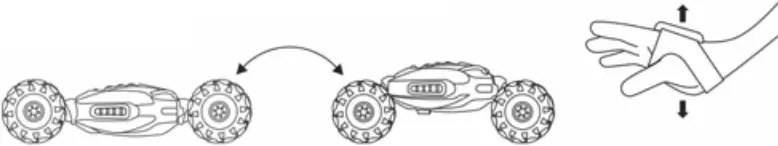

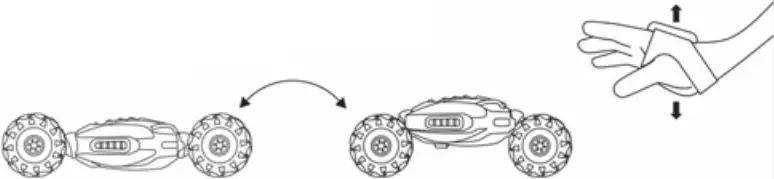

Raise the gesture, the R/C car body twigs and arches;
lower the gesture, the R/C car body twists and parallels.

MODEL 2

Press the switch key, palm down, forward light 2 lights up, and the remote control vehicle moves forward; With the palm of your hand facing up, the reverse lamp 4 lights up, and the remote control vehicle moves backward.

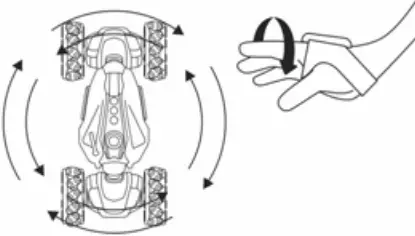

Palm towards left, the left turning lights (1, 2, 4) go on, and the R/C car turns left;
Palm towards right, the right turning lights (2, 3, 4) go on, and the R/C car turns right.

Raise the gesture, the R/C car body twists and arches;
lower the gesture, the R/C car body twists and parallels.

PRECAUTIONS FOR BATTERY USE

* Before playing please charge the new battery pack.
* The output voltage used by the charging plug should be 5V;
* The higher the actual milliampere of the rechargeable battery, the longer the charging time;
* Rechargeable batteries can only be charged under adult supervision;
* During charging, the light of the USB charging cable head is on red. When the light goes out, it indicates that the lithium battery is fully charged. The charging time is 3-4 hours.
* First plug the battery pack plug in the charger, then plug the charger plugged in the socket.
* Take out and put in the battery according to the mark on the toy battery room;
* Non-rechargeable batteries cannot be charged;
* Use only the same or identical battery as recommended;
* Do not mix-use old and new batteries or different types of batteries;
* Batteries should be placed in the correct polarity;
* Remove the exhausted battery from the toy;
* Power terminals should not be short-circuited;
* The charger must be checked regularly for damage to its wires, plugs, housings and other components. If damage is found, stop using the charger until it is repaired.

General Trouble Shooting

Instructions

Battery chargers that use this toy must be regularly checked to prevent damage to the wires and other components and, if damaged must be repaired for damage.

Maintenance Matters

1. Can not close to the fire, avoid direct sunlight, high temperature and humidity or long-term in the car, to avoid short circuit, fire.
2. Do not play when the car and remote control battery removed. And the remote control car remote control I back into the color box packaging, to avoid damage or deformation during transport or storage.
3. Remote control car with a damp cloth to gently wipe.

TIPS

When the car moves, please do not touch the wheels of the remote control car, so as to avoid injury.

Do not play on the curb or in dangerous places to prevent accidents.

Do not play remote control car in the sump.

FCC Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and c an radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help important announcement

Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
