GREEN LIGHT 57592-060-53 Interior Ceiling Light
Pre-Installation
PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting the installation of the fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.

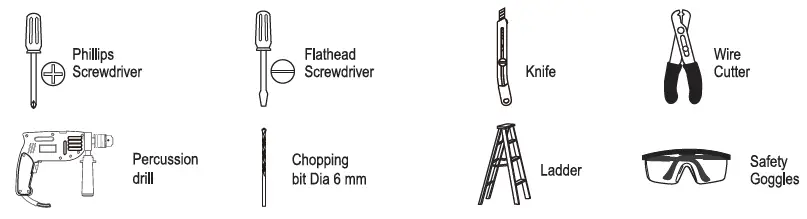

TOOLS REQUIRED

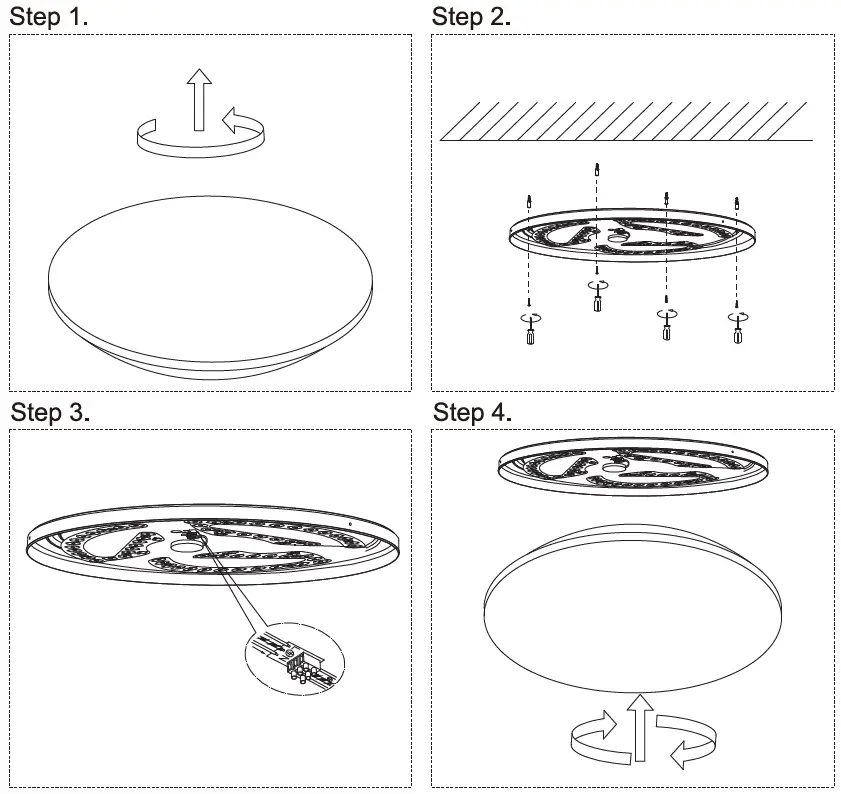

Installation
Make sure to turn off the main power

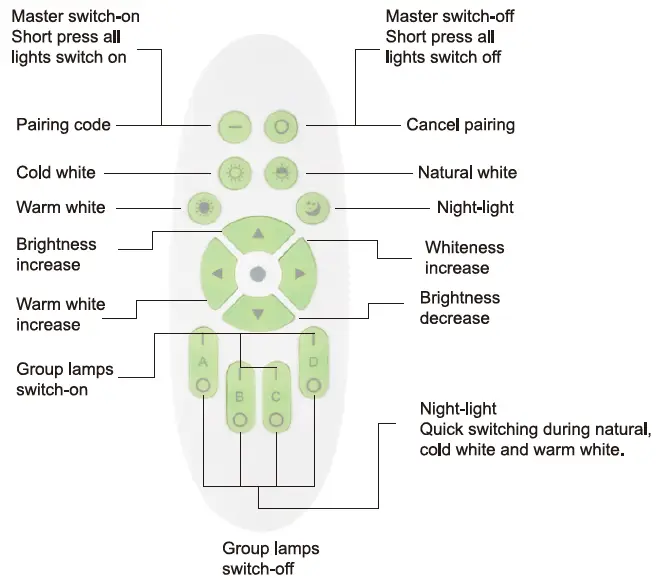

Keyboard function and direction for use
Code Pairing
Switching off the lamp required paring, after 3s, a long press of the Master switch-on, meanwhile, switch on the lamp, it succeeds when the lamp in flashing. At this time, the lamps in pairing success will be controlled by the Master switch.
Pairing Cancel
Switching off the lamp required paring cancel, after 3s, a long press of Master switch-off, meanwhile, switch on the lamp it succeeds when the lamp in flashing.
Group build-up
Turn on the group lights, long press of Group lights switch-on, the group lamps are controlled by the group switch or Master switch, and it succeeds when the lamps in flashing.
Group disband
Turn on the group lamps required disbanded, a long press of the Group lights switch-off, the lamps are controlled by the Master switch, and it succeeds when the lamps in flashing.
Save settings to memory
Turn on the light, set the favorite brightness and color temperature by this remote control, after 1 Os, turn off the light with this remote control or wall switch, then the setting is memorized. The light will turn on in this setting next time.
Warning
The lamp dimmer and CCT change only can control by Remote control, and cant be changed by a wall switcher.

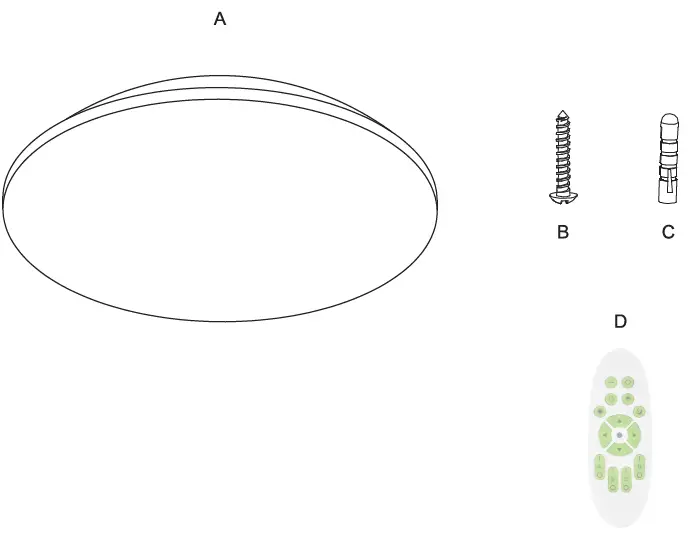

Package contents
parts are not to scale
| Part | Description | Quantity |
| A | Fixture body | 1 |
| B | SS Self-Tapping screw | 4 |
| C | Wall expansion particle | 4 |
| D | Remote control |
Parameters
| Rated Wattage | Rated Voltage | Color Temperature | Lumen (3000 – 6500K) | Night light function | IP Class | Dimension |
| 36-60W | 220-240V | 3000-6S00K | 4300LM | YES | IP20 | 580*580*70mm |
Care and Cleaning
EXTERIOR MAINTENANCE
- To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the surface of the fixture.
- Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft cloth to dust or wipe carefully.
