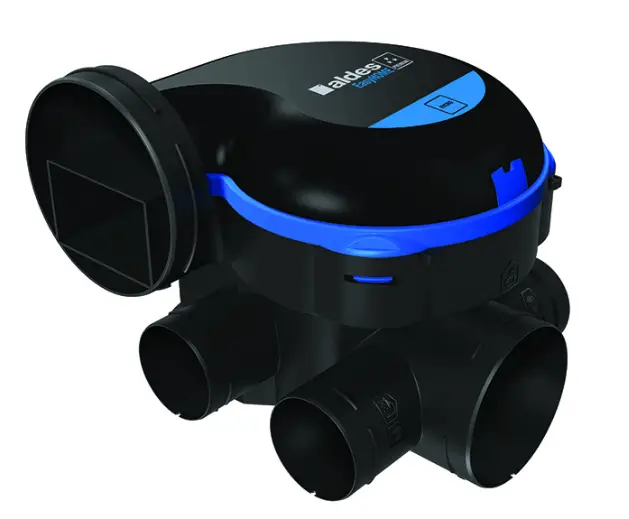

aldes EasyHome Hygro Classic Humidity-Adjustable Individual Single-Flow Ventilation Unit

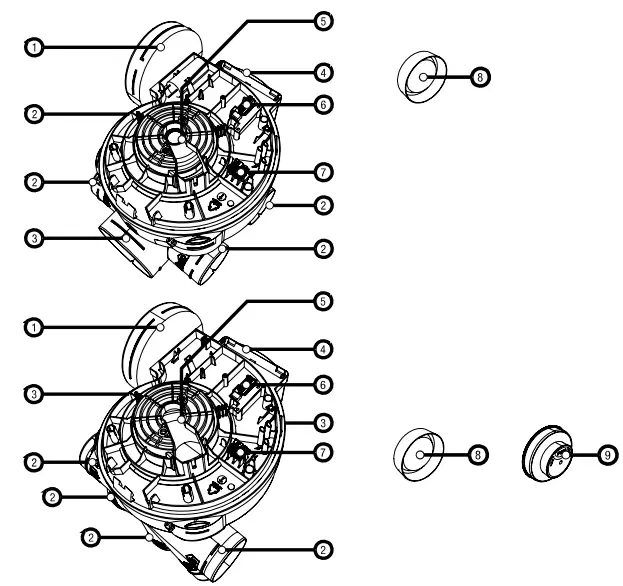

Description
- outdoor discharge connection
- Bath/WC connection
- Kitchen Connection
- Wall attachment area
- Motorized fan unit
- PCB
- Electric terminal block
- Connection plug
- Removable plug
| GPE EasyHOME”‘ HYGRO CLASSIC | Kit EasyHOME® HYGRO CLASSIC | Kit EasyHOME® HYGRO CLASSIC+ CORD | GPE EasyHOME® HYGRO PREMIUM MW | Kit EasyHOME® HYGRO PREMIUM MW | Kit EasyHOME® HYGRO CLASSIC MW+ELEC PIEU | . ® Kit EasyHOME HYGRO PREMIUM MW + CORD | GPE EasyHOME® HYGRO PREMIUM MW HP | Kit EasyHOME® HYGRO PREMIUM MW HP | |
| N° | 11033030 | 11033031 | 11033032 | 11033033 | 11033034 | 11033035 | 11033036 | 11033046 | 11033047 |
| 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
| 3 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| B | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| 9 | |||||||||

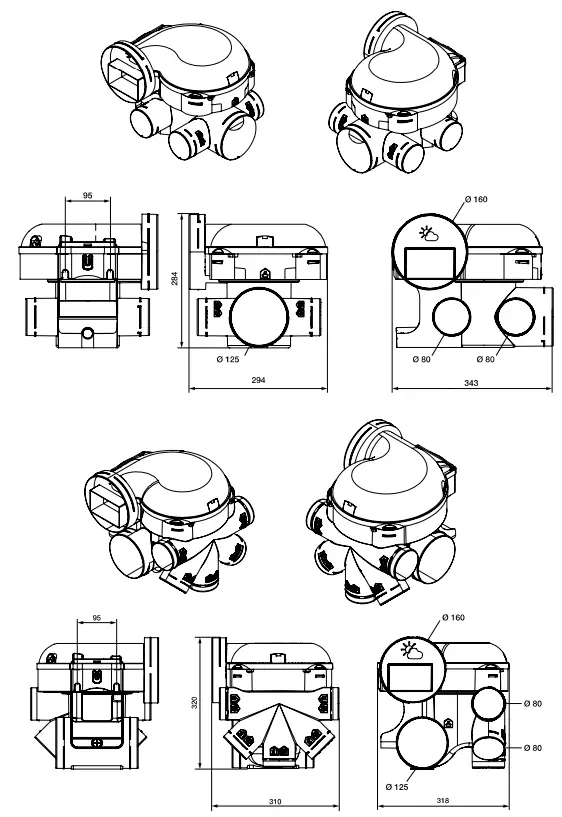

Dimensions

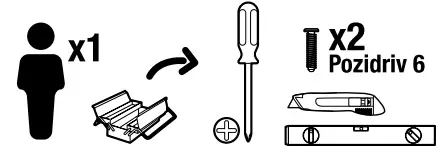

Recommendations
Before installing, activating and maintaining this product, please read the «Precautions and regulatory information» data sheet provided.
ASSEMBLY

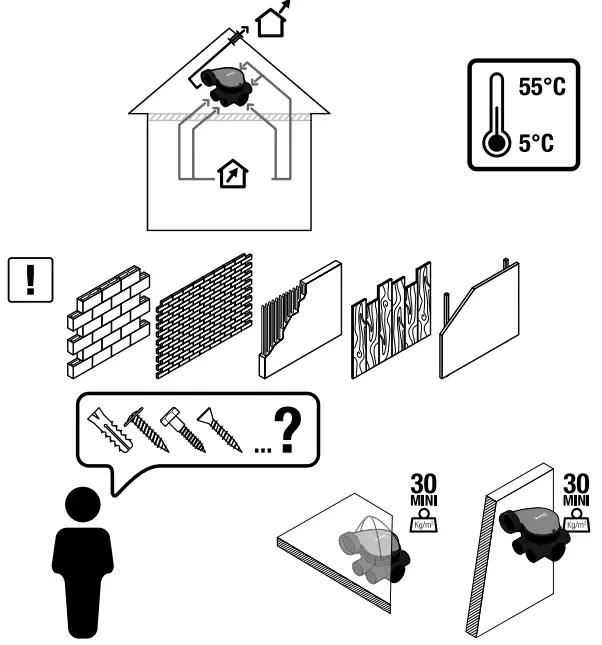

Recommendations

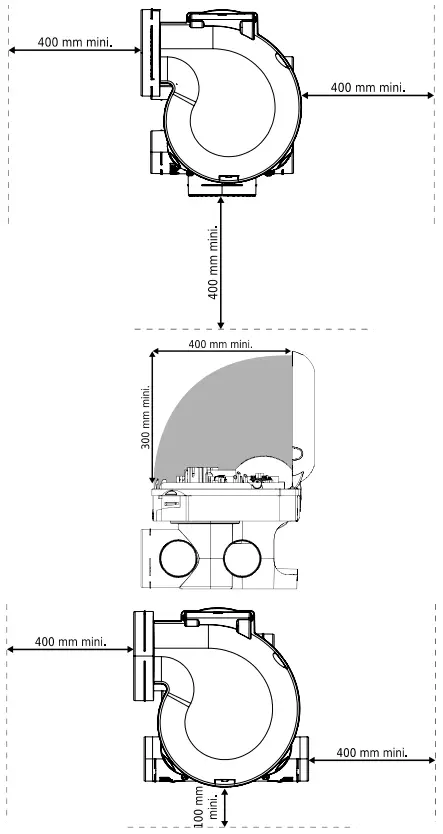

Installation plans

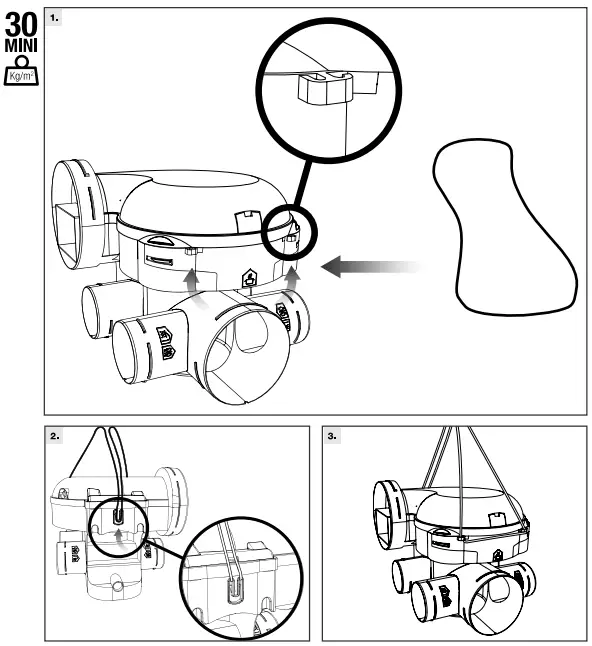

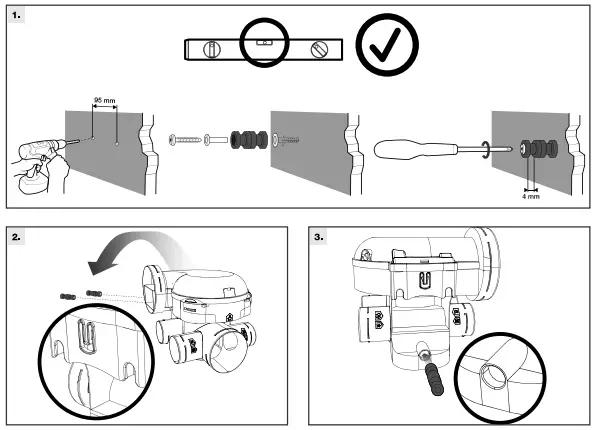

Suspended attachment
Screw attachment against wall (optional)

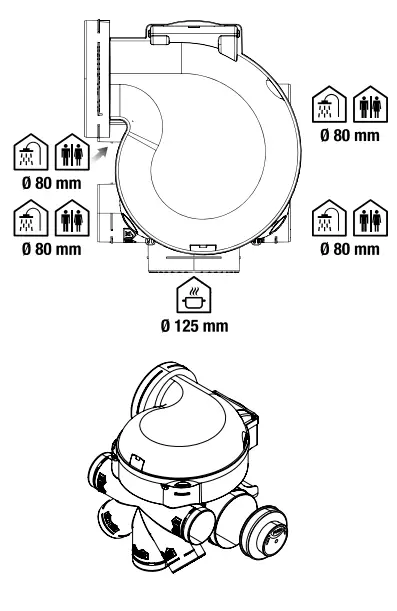

Block off connections not used
- 1 kitchen or 1 bath/shower or 2 bath/shower rooms

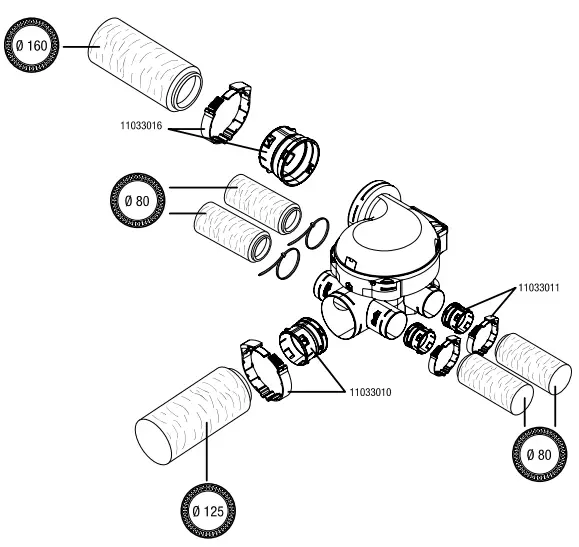

DUCT CONNECTIONS
- Isolate the network, ex. volume heated

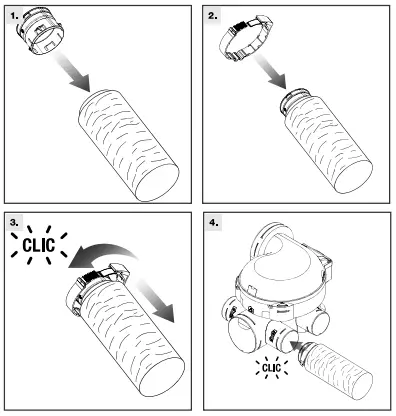

- Connection using Algaine EasyClip
INSTALLATION OF TERMINALS
Installation in utility rooms and humid rooms

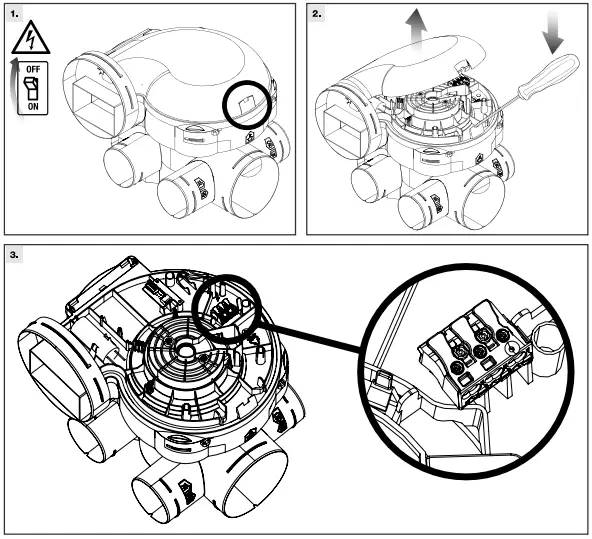

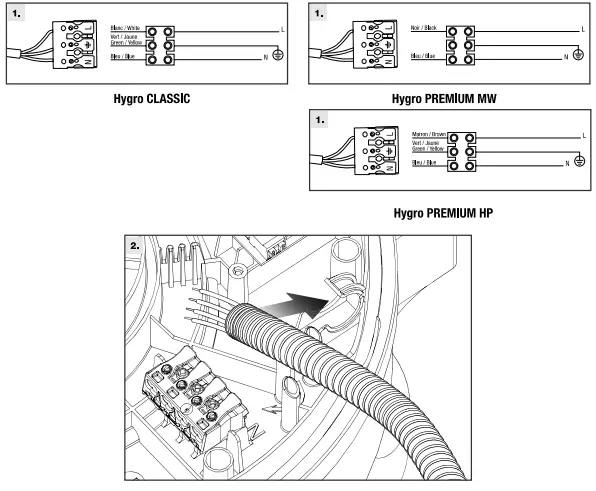

ELECTRICAL CONNECTION
The switch numbering corresponds to the fan pressure curve.
Version
- Standard operation: constant speed
- Base setting: speed 4

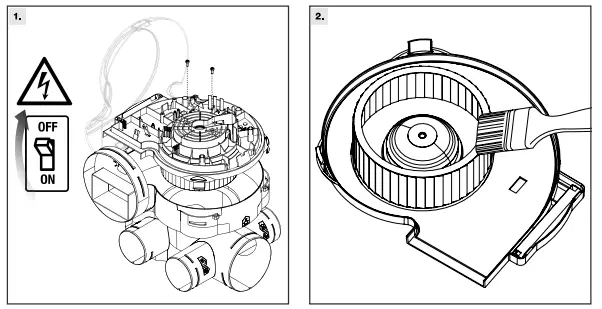

MAINTENANCE
To retain its efficiency and operating characteristics, the CMEV system must be serviced regularly.
- Clean the exhaust terminals in accordance with the instructions provided
- Remove dust from air inlets in the main rooms or change the filters in accordance with the instructions provided.
- Remove dust from the fan impeller using a brush.
WARRANTY
EasyHOME® units come with a 2-year warranty subject to respect of the conditions of activation, use and servicing described in the instructions. Starts on the date of purchase. Date certified by distributor invoice.
