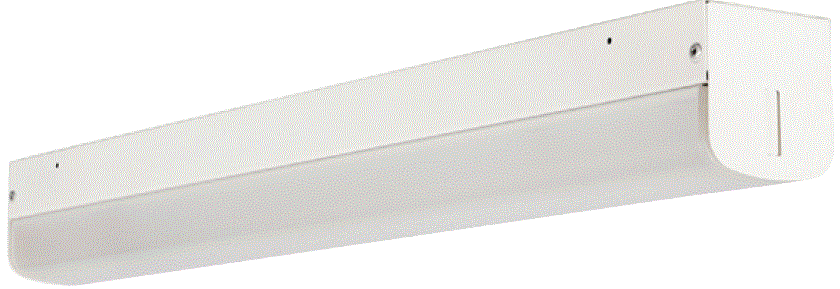

LEDVANCE 65188 SYLVANIA UltraLED Strip Luminaire

The SYLVANIA UltraLED Strip Luminaire is a high-efficiency LED lighting solution that is ideal for retrofit and new installations in various applications such as retail, manufacturing, warehouse, office, education, and low-bay lighting. It is available in 2ft, 4ft, and 8ft lengths with a diffuse acrylic lens that delivers smooth, even illumination.

Product Benefits and Features

• High-efficiency LED design
• Light engine and lens module feature toolless removal and secure snap-fit for fast, efficient installation
• Knock-outs on both ends of the fixture facilitate through wiring
• Optional joiner bracket facilitates end-to-end mounting
• Microwave Motion/Daylight sensor and 8W Battery backup options are available to increase the versatility of this product line
• DLC Premium listing maximizes rebate opportunities
• Split junction box cover and V-hook mounting bracket included
• Up to 130 LPW
• 3500K, 4000K, or 5000K color temperatures
• CRI >80
• White powder-coated metal body
• THD 90%
• 0-10V dimmable down to 10%

Product Installation

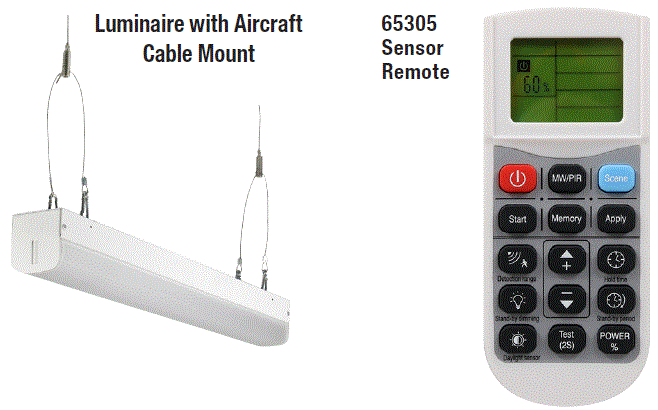

The SYLVANIA UltraLED Strip Luminaire can be surface mounted or suspended using the V-hook mounting bracket included. The fixtures can be joined end-to-end using the optional joiner bracket. For additional mounting accessory options, refer to the Accessories section of the user manual.

Product Warranty

• The SYLVANIA UltraLED Strip Luminaire comes with a 5-year warranty and is covered by the NLB Trusted Warranty Program.

Product Certifications and Listings

• cULus
• RoHS
• FCC
• DLC 5.1
• UL damp location rated

Product Ordering Guide

The product name is Strip 2A. The ordering abbreviation consists of several parts:

• Generation: 2A
• Luminaire Wattage: 022, 034, 044, 068, or 096
• Voltage: UNV (120-277V) or UNH (120-347V)
• Dimming: D (0-10V Dimming)
• CRI: >80
• Color Temperature: 35 (3500K), 40 (4000K), or 50 (5000K)
• Length: 24 (24 inches), 48 (48 inches), or 96 (96 inches)
• Mounting: U (Universal Mounting)
• Color/Finish: WH (White)

Product Ordering Information

Note: DE in the ordering abbreviation stands for DLC Premium Listing and UL Damp Location Rated.

To install the SYLVANIA UltraLED Strip Luminaire, follow these steps:

1. Determine the mounting method – surface mount or suspended using V-hook mounting bracket.
2. Identify the power source and voltage range.
3. Remove the light engine and lens module from the fixture by pressing the toolless release tabs on both sides of the module.
4. Wire the fixture according to the wiring diagram provided in the user manual.
5. Insert the light engine and lens module back into the fixture until it clicks into place.
6. If joining fixtures end-to-end, use the optional joiner bracket to connect them together.
7. Install the split junction box cover over the wiring compartment to protect the electrical connections.
8. Mount the fixture to the ceiling or wall using appropriate hardware and accessories.
9. Turn on the power and test the fixture to ensure it is working properly.

Application

Ideal in retrofit and new installations, the SYLVANIA UltraLED Strip Luminaire is intended for retail, manufacturing, warehouse, office, education, and low-bay applications.

Benefits and Features

• High efficiency LED design
• Available in 2ft, 4ft, and 8ft lengths
• Light engine and lens module feature toolless removal and secure snap-fit for fast, efficient installation
• Diffuse acrylic lens delivers smooth, even illumination
• Knock-outs on both ends of fixture facilitate through wiring
• Optional joiner bracket facilitates end-to-end mounting
• Microwave Motion/Daylight sensor and 8W Battery Back-up options increase the versatility of this product line
• DLC Premium listing maximizes rebate opportunities
• Split junction box cover and V-hook mounting bracket included
• Up to 130 LPW
• 3500K, 4000K, or 5000K color temperatures
• CRI >80
• White powder coated metal body
• THD <20%

Electrical

• 120-277Vac or 120-347Vac (see ordering guide for further information)
• Power Factor >90%
• 0-10V Dimmable down to 10%

Rated Life

• 100,000 hours (L70) @25°C

Warranty

• 5-year
• NLB Trusted Warranty Program

Ambient Operating Range

• -13°F to +104°F (-25°C to +40°C)

Wattage Comparison

Certifications and Listings

• cULus
• RoHS
• FCC
• DLC 5.1
• UL damp location rated

Installation

• Can be surface mounted or suspended
• V-hook mounting bracket included
• Split Junction Box cover included
• Fixtures can be joined end-to-end using the optional joiner bracket
• For additional mounting accessory options, reference the Accessories section of this document

Ordering Guide

Ordering Information

Item Number

Ordering Abbreviation

Wattage (W)

Input Voltage (V)

Dimming

CRI

Color Temperature (CCT)

Size

Total Fixture Lumens

LPW

DLC

Options

65209

STRIP2A/022UNHD835/24U/WH

22

120-347

0-10V

>80

3500K

2ft

2860

130

Std

–

–

65210

STRIP2A/022UNHD840/24U/WH

22

120-347

0-10V

>80

4000K

2ft

2860

130

Std

–

–

65211

STRIP2A/022UNHD850/24U/WH

22

120-347

0-10V

>80

5000K

2ft

2860

130

Std

–

–

65176

STRIP2A/022UNHD835/48U/WH

22

120-347

0-10V

>80

3500K

4ft

2860

130

Std

–

–

65177

STRIP2A/022UNHD840/48U/WH

22

120-347

0-10V

>80

4000K

4ft

2860

130

Std

–

–

65178

STRIP2A/022UNHD850/48U/WH

22

120-347

0-10V

>80

5000K

4ft

2860

130

Std

–

–

65212

STRIP2A/034UNHD835/48U/WH

34

120-347

0-10V

>80

3500K

4ft

4420

130

Std

–

–

65213

STRIP2A/034UNHD840/48U/WH

34

120-347

0-10V

>80

4000K

4ft

4420

130

Std

–

–

65214

STRIP2A/034UNHD850/48U/WH

34

120-347

0-10V

>80

5000K

4ft

4420

130

Std

–

–

65215

STRIP2A/044UNVD835/48U/WH

44

120-277

0-10V

>80

3500K

4ft

5720

130

Std

–

–

65216

STRIP2A/044UNVD840/48U/WH

44

120-277

0-10V

>80

4000K

4ft

5720

130

Std

–

–

65217

STRIP2A/044UNVD850/48U/WH

44

120-277

0-10V

>80

5000K

4ft

5720

130

Std

–

–

65218

STRIP2A/044UNVD835/96U/WH

44

120-277

0-10V

>80

3500K

8ft

5720

130

Std

–

–

65219

STRIP2A/044UNVD840/96U/WH

44

120-277

0-10V

>80

4000K

8ft

5720

130

Std

–

–

65220

STRIP2A/044UNVD850/96U/WH

44

120-277

0-10V

>80

5000K

8ft

5720

130

Std

–

–

65224

STRIP2A/068UNHD835/96U/WH

68

120-347

0-10V

>80

3500K

8ft

8840

130

Std

–

–

65225

STRIP2A/068UNHD840/96U/WH

68

120-347

0-10V

>80

4000K

8ft

8840

130

Std

–

–

65226

STRIP2A/068UNHD850/96U/WH

68

120-347

0-10V

>80

5000K

8ft

8840

130

Std

–

–

65230

STRIP2A/096UNVD835/96U/WH

96

120-277

0-10V

>80

3500K

8ft

12,480

130

Std

–

–

65231

STRIP2A/096UNVD840/96U/WH

96

120-277

0-10V

>80

4000K

8ft

12,480

130

Std

–

–

65232

STRIP2A/096UNVD850/96U/WH

96

120-277

0-10V

>80

5000K

8ft

12,480

130

Std

–

–

65128

STRIP2A/022UNHD835/24U/WH/D

22

120-347

0-10V

>80

3500K

2ft

2860

130

Std

Motion/Daylight Sensor

Yes

65129

STRIP2A/022UNHD840/24U/WH/D

22

120-347

0-10V

>80

4000K

2ft

2860

130

Std

Motion/Daylight Sensor

Yes

65130

STRIP2A/022UNHD850/24U/WH/D

22

120-347

0-10V

>80

5000K

2ft

2860

130

Std

Motion/Daylight Sensor

Yes

65179

STRIP2A/022UNHD835/48U/WH/D

22

120-347

0-10V

>80

3500K

4ft

2860

130

Std

Motion/Daylight Sensor

Yes

65180

STRIP2A/022UNHD840/48U/WH/D

22

120-347

0-10V

>80

4000K

4ft

2860

130

Std

Motion/Daylight Sensor

Yes

65181

STRIP2A/022UNHD850/48U/WH/D

22

120-347

0-10V

>80

5000K

4ft

2860

130

Std

Motion/Daylight Sensor

Yes

65131

STRIP2A/034UNHD835/48U/WH/D

34

120-347

0-10V

>80

3500K

4ft

4420

130

Std

Motion/Daylight Sensor

Yes

65132

STRIP2A/034UNHD840/48U/WH/D

34

120-347

0-10V

>80

4000K

4ft

4420

130

Std

Motion/Daylight Sensor

Yes

65133

STRIP2A/034UNHD850/48U/WH/D

34

120-347

0-10V

>80

5000K

4ft

4420

130

Std

Motion/Daylight Sensor

Yes

65134

STRIP2A/044UNVD835/48U/WH/D

44

120-277

0-10V

>80

3500K

4ft

5720

130

Std

Motion/Daylight Sensor

Yes

65135

STRIP2A/044UNVD840/48U/WH/D

44

120-277

0-10V

>80

4000K

4ft

5720

130

Std

Motion/Daylight Sensor

Yes

65136

STRIP2A/044UNVD850/48U/WH/D

44

120-277

0-10V

>80

5000K

4ft

5720

130

Std

Motion/Daylight Sensor

Yes

65137

STRIP2A/044UNVD835/96U/WH/D

44

120-277

0-10V

>80

3500K

8ft

5720

130

Std

Motion/Daylight Sensor

Yes

65138

STRIP2A/044UNVD840/96U/WH/D

44

120-277

0-10V

>80

4000K

8ft

5720

130

Std

Motion/Daylight Sensor

Yes

65139

STRIP2A/044UNVD850/96U/WH/D

44

120-277

0-10V

>80

5000K

8ft

5720

130

Std

Motion/Daylight Sensor

Yes

65143

STRIP2A/068UNHD835/96U/WH/D

68

120-347

0-10V

>80

3500K

8ft

8840

130

Std

Motion/Daylight Sensor

Yes

65144

STRIP2A/068UNHD840/96U/WH/D

68

120-347

0-10V

>80

4000K

8ft

8840

130

Std

Motion/Daylight Sensor

Yes

65145

STRIP2A/068UNHD850/96U/WH/D

68

120-347

0-10V

>80

5000K

8ft

8840

130

Std

Motion/Daylight Sensor

Yes

65149

STRIP2A/096UNVD835/96U/WH/D

96

120-277

0-10V

>80

3500K

8ft

12,480

130

Std

Motion/Daylight Sensor

Yes

65150

STRIP2A/096UNVD840/96U/WH/D

96

120-277

0-10V

>80

4000K

8ft

12,480

130

Std

Motion/Daylight Sensor

Yes

65151

STRIP2A/096UNVD850/96U/WH/D

96

120-277

0-10V

>80

5000K

8ft

12,480

130

Std

Motion/Daylight Sensor

Yes

65182

STRIP2A/022UNVD835/48U/WH/E

22

120-277

0-10V

>80

3500K

4ft

2860

130

–

Emergency Battery Back-up1

Yes

65183

STRIP2A/022UNVD840/48U/WH/E

22

120-277

0-10V

>80

4000K

4ft

2860

130

–

Emergency Battery Back-up1

Yes

65184

STRIP2A/022UNVD850/48U/WH/E

22

120-277

0-10V

>80

5000K

4ft

2860

130

–

Emergency Battery Back-up1

Yes

65155

STRIP2A/034UNVD835/48U/WH/E

34

120-277

0-10V

>80

3500K

4ft

4420

130

–

Emergency Battery Back-up1

Yes

65156

STRIP2A/034UNVD840/48U/WH/E

34

120-277

0-10V

>80

4000K

4ft

4420

130

–

Emergency Battery Back-up1

Yes

65157

STRIP2A/034UNVD850/48U/WH/E

34

120-277

0-10V

>80

5000K

4ft

4420

130

–

Emergency Battery Back-up1

Yes

65158

STRIP2A/044UNVD835/48U/WH/E

44

120-277

0-10V

>80

3500K

4ft

5720

130

Std

Emergency Battery Back-up1

Yes

65159

STRIP2A/044UNVD840/48U/WH/E

44

120-277

0-10V

>80

4000K

4ft

5720

130

Std

Emergency Battery Back-up1

Yes

65160

STRIP2A/044UNVD850/48U/WH/E

44

120-277

0-10V

>80

5000K

4ft

5720

130

Std

Emergency Battery Back-up1

Yes

65161

STRIP2A/044UNVD835/96U/WH/E

44

120-277

0-10V

>80

3500K

8ft

5720

130

Std

Emergency Battery Back-up1

Yes

65162

STRIP2A/044UNVD840/96U/WH/E

44

120-277

0-10V

>80

4000K

8ft

5720

130

Std

Emergency Battery Back-up1

Yes

65163

STRIP2A/044UNVD850/96U/WH/E

44

120-277

0-10V

>80

5000K

8ft

5720

130

Std

Emergency Battery Back-up1

Yes

65167

STRIP2A/068UNVD835/96U/WH/E

68

120-277

0-10V

>80

3500K

8ft

8840

130

–

Emergency Battery Back-up1

Yes

65168

STRIP2A/068UNVD840/96U/WH/E

68

120-277

0-10V

>80

4000K

8ft

8840

130

–

Emergency Battery Back-up1

Yes

65169

STRIP2A/068UNVD850/96U/WH/E

68

120-277

0-10V

>80

5000K

8ft

8840

130

–

Emergency Battery Back-up1

Yes

65173

STRIP2A/096UNVD835/96U/WH/E

96

120-277

0-10V

>80

3500K

8ft

12,480

130

Std

Emergency Battery Back-up1

Yes

65174

STRIP2A/096UNVD840/96U/WH/E

96

120-277

0-10V

>80

4000K

8ft

12,480

130

Std

Emergency Battery Back-up1

Yes

65175

STRIP2A/096UNVD850/96U/WH/E

96

120-277

0-10V

>80

5000K

8ft

12,480

130

Std

Emergency Battery Back-up1

Yes

65185

STRIP2A/022UNVD835/48U/WH/DE

22

120-277

0-10V

>80

3500K

4ft

2860

130

–

Motion/Daylight Sensor + Emergency Battery Back-up1

Yes

65186

STRIP2A/022UNVD840/48U/WH/DE

22

120-277

0-10V

>80

4000K

4ft

2860

130

–

Motion/Daylight Sensor + Emergency Battery Back-up1

Yes

65187

STRIP2A/022UNVD850/48U/WH/DE

22

120-277

0-10V

>80

5000K

4ft

2860

130

–

Motion/Daylight Sensor + Emergency Battery Back-up1

Yes

Made To Order

1. Emergency Battery Back-up provides 1000 lumens for a period of 90 minutes

Photometric Data

Average Illuminance (FC) at 30″ AFF and avg/min uniformity 80/50/20 Reflectances

DLC Listing

Accessories

Physical Information

2′ Model

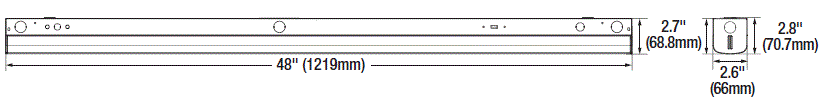

4′ Model

8′ Model

Sensor Options Information

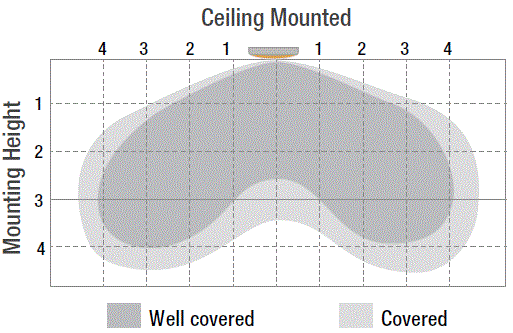

Detection Range

• Typical installation height 2.5-4m; units are shown in meters.
• This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

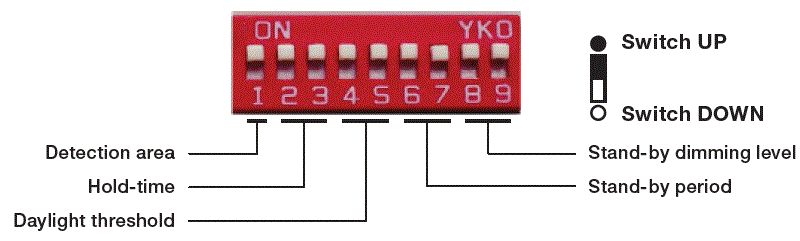

DIP Switch Settings

Detection area

• In this area, movement will be detected and able to trigger the sensor. 100% detection area is also known as the strong sensitvity.

Hold-time

• The period of light keeping 100% brightness after moving objects leave the detection area.

Daylight threshold

Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it’s preset as “disable”, the sensor works everytime it detects motion regardless the ambient brightness.

Stand-by period

• The period of light keeping low output before it’s completely switched off. When it’s preset as “∞”, the light always keep at low output if no movement in the detection area and doesn’t turn off.

Stand-by dimming level

• The definition of low output in the standby period.

LEDVANCE LLC

• 181 Ballardvale Street
• Wilmington, MA 01887 USA
• Phone 1-800-LIGHTBULB (1-800-544-4828)
• www.ledvanceUS.com
• Twitter: /sylvania
• Fb: /sylvania
• www.ledvanceUS.com/luminaires

Info

• Name:  ……………………..
• Email:  ……………………..
• Phone: ……………………..
• Item #:  ……………………..
• Type:  ……………………..
• Project:  ……………………..
• Notes:  ……………………..
• Date:  ……………………..

SYLVANIA and LEDVANCE are registered trademarks.
All other trademarks are those of their respective owners.
Licensee of product trademark SYLVANIA in general lighting.
Specifications subject to change without notice.

© 2022 LEDVANCE LLC

References

• LEDVANCE US and Canada | SYLVANIA General Lighting | Home Page
• SYLVANIA Luminaires | LED Luminaires | SYLVANIA Retrofit Kits
