RS2484FRJ1 24-Inch Integrated Column Freezer
User Guide
Install it separately or pair it with another Column for seamless kitchen integration – this model is right hinge with a white interior.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Two separate Variable Temperature Zones: each with Freeze,
- Soft Freeze or Deep Freeze
- Internal ice maker with boost for busy times
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

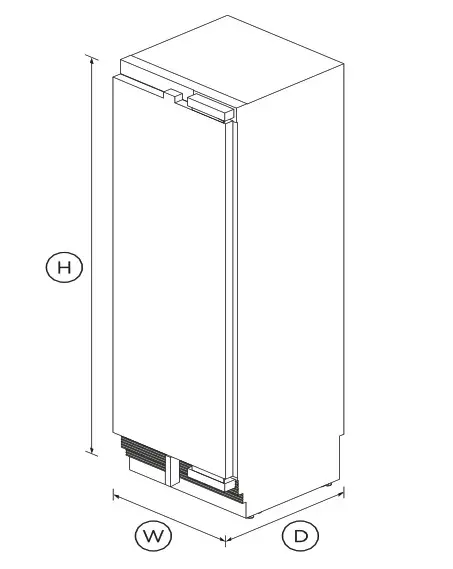

DIMENSIONS
| Height | 84″ |
| Width | 23 3/4″ |
| Depth | 24″ |
FEATURES & BENEFITS
Variable Temperature Zones
Food is stored in two separate zones. You have the choice of three food modes: Freeze -7°F to 7°F, Soft Freeze at 14°F to 18°F, and Deep Freeze is fixed at -13°F.
Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or Customize them to match your own kitchen cabinetry.
Clever energy
Our Energy Star-certified ActiveSmart™ Refrigerators & Freezers adapt to daily use by cooling and defrosting only when needed.
This means your refrigerator uses the energy it needs without compromising on food care.
Appealing illumination
Bright LEDs light up the ceiling, shelves, bins, and trays in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Design quality
The premium design and quality finish include a white or stainless steel interior lining, as well as full-extension metal shelf runners for easy access and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers. All models come with front adjustable leveling feet and they’ve been designed to easily slide into place as separate units.
Perfect fit
These models fit flush and have only ⅛” / 3mm gaps around them with no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | 25379 |
| Joiner kit | 819264 |
| Surround Kit (Joined left/right | Part number 24476 |
| Surround Kit (Right Hand) | 24475 |
| Capacity | |
| Volume freezer | 4.8cu ft |
| Volume refrigerator | 12.3cu ft |
| Consumption | |
| Energy usage | 452kWh/year |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| SmartTouch control panel | • |
| Stackable bottle holders | 2 |
| Freezer Features | |
| Bottle chill | • |
| Fast freeze | • |
| Large plastic bins | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Sabbath mode | • |
| Product dimensions | |
| Depth | 27 3/8″ |
| Height | 67 3/4″ |
| Minimum air clearance – at rear | 1 3/16″ |
| Minimum air clearance – each | 1 3/16″ |
| Width | 31 1/8″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 25954 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
