Samsung Ne63a6511ss Smart Electric Range User Manual

Samsung NE63A6511SS Smart Electric Range User Manual

Signature Features

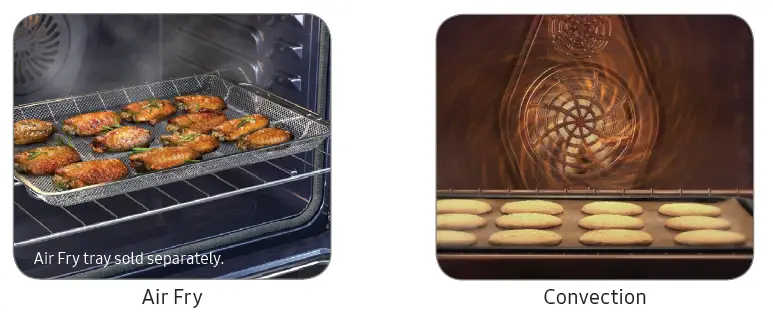

Air Fry

• A healthier way to prepare your favorite fried foods right in your oven with little to no oil.No preheating is required. As compared to deep frying. Air fry tray sold separately.

Convection

• Powerful convection saves you time by cooking food fast and more evenly.

Large Oven Capacity

• This large 6.3 cu. ft. oven can fit multiple dishes at one time.

Available Colors

Fingerprint Resistant Stainless Steel (shown)
Fingerprint Resistant Black Stainless Steel
Black
White

Features

• Stainless Steel Design
• Air Fry – Tray Not Included
• Convection
• Large Oven Capacity – 6.3 cu. ft.
• Rapid Boil™ 3300 W
• Extra Oven Settings – Bread Proof, Dehydrate, Favorite Cook, Keep Warm
• Storage Drawer
• Flexible Cooktop:
• Five Burner Cooktop
  • One Dual Ring Burner (9″/12″)
  • One Dual Ring Burner (6″/9″)
  • Two Single Burner s (6″)
  • One Warming Center (7″)

Convenience

• Wi-Fi Connectivity
• Voice-Enabled
• SmartThings Cooking
• Convection Auto Conversion
• Self & Steam Clean
• Hidden Bake Element
• Sabbath Mode
• Child Safety Lock
• Delay Start
• Auto Oven Light
• Kitchen Timer

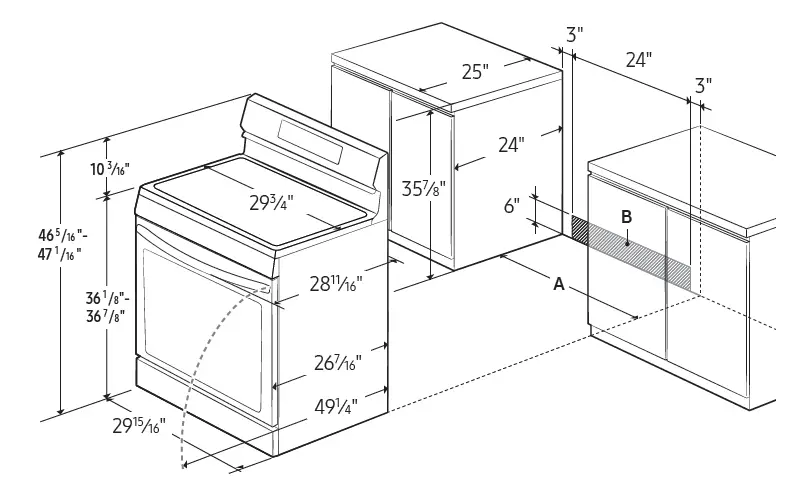

Installation Specifications

• Cabinet opening min 30″
• The acceptable electrical outlet area

IMPORTANT: If your cabinets are over 363⁄4″ high, you must install this range on hard, heat-resistant support that raises the surface of the range so that it is about even with the countertop.

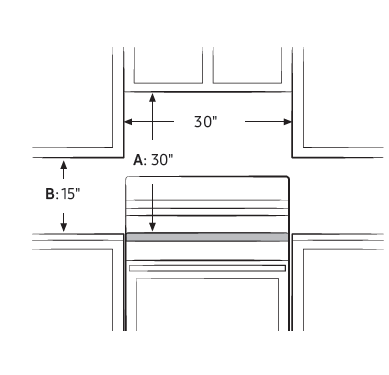

• A: 30″ minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet; or 24″ minimum when the bottom of the wood or metal cabinet is protected by not less than ¼” of flame retardant millboard covered with not less than no.28 MSG sheet steel, 0.015″ stainless steel, 0.024″ aluminum, or 0.020″ copper.
• B: 15″ minimum between the countertop and the adjacent cabinet bottom.
  IMPORTANT: Consult with Installation Manual for detailed instructions before installing. All ranges must be installed with the Anti-Tip device that is included.

Power Source
240V/208V/60 Hz/40A

Electric Cooktop

• Right Front: 9″/12″ Dual Ring Burner, 3000 W
• Left Front: 6″/9″ Dual Ring Burner, 3300 W
• Right Rear: 6″ Burner, 1200 W
• Left Rear: 6″ Burner, 1200 W
• Center: Warming Center, 100 W

Oven

• Capacity: 6.3 cu. ft.
• Convection Element/Heater
• Convection Bake
• Convection Roast
• Bake
• Variable Broil: Low/High
• Air Fry
• Bread Proof
• Dehydrate

Warranty

One (1) Year Parts and Labor

Product Dimensions & Weight (WxHxD)
Oven Interior Dimensions:
2413/16″ x 227/16″ x 193/4″

Outside Net Dimensions
2915/16″ x 465/16-471/16″ (Adjustable) x 2811/16″
Weight: 148 lbs

Shipping Dimensions & Weight (WxHxD)
Dimensions: 331/16″ x 509/16″ x 305/16″
Weight: 172 lbs

Color
Fingerprint Resistant Stainless Steel

Model # UPC Code
NE63A6511SS 887276509426

Fingerprint Resistant

• Black Stainless Steel NE63A6511SG 887276509419
• Black NE63A6511SB 887276509402
• White NE63A6511SW 887276509440

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2021 Samsung Electronics America, Inc. 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
