Technical Data
820 Shaver Socket
Owner’s Manual
820 Shaver Socket
Brief product description:
The subtle design will blend with any décor – suitable for domestic or commercial installations.
Features:
- White moulded round edge, sleek and slim with softly rounded edges
- Easy to install, supplied with fixing screws and installation instructions
- Colour coded terminals with backed out captive screws for fast installation
- Screw cover caps for a sleek appearance
- Anti-microbial certified – manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Product Images
Technical Specifications
| Standard(s) | BS EN 61558 BS 4573 |
| Rating | 20VA |
| Voltage | 115/240V AC |
| Terminal Capacity | 3 x 2.5mm² & 2 x 4.0mm² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 47mm |
| Fixing Centres | 120.6mm |

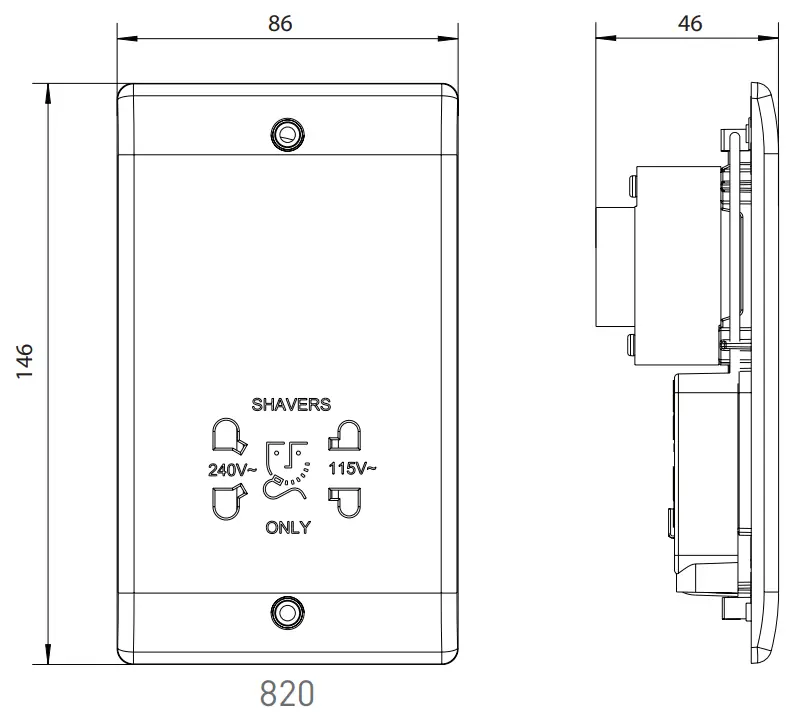

Line Diagrams
Packaging Information
| Cat No. | Description | Packaging Type | Pack Quantity | Barcode | ||||||
| Product | Inner Box | Outer Box | Each | Inner Box | Outer Box | Individual | Inner Box | Outer Box | ||
| 820 | 115/240 DV SHV SKT | Window Box | Printed Carton | Printed Carton | 1 | 5 | 50 | 5050765002714 | 5050765002721 | 5050765002738 |
Weights & Dimensions
| Cat No. | Description | Di | mensions | (H x W x D) | cm | Weight | (kg) | CBM (m3) | ||
| Unpacked Product | Packed Product | Inner Box | Outer Box | Unpacked Product | Packed Product | Inner Box | Outer Box | Outer Box | ||
| 820 | 115/240 DV SHV SKT | 14.6 x 8.6 x 4.6 | 15.0 x 9.0 x 5.0 | 9.7 x 25.7 x 16.2 | 27.6 x 34.3 x 30.3 | 0.078 | 0.113 | 3.36 | 20.46 | 0.02868 |
British General Helpline
03300 249 279
