AMCREST AMPS9E8P-AT-96 9-Port POE+ Power Over Ethernet POE Switch
AMCREST AMPS9E8P-AT-96 9-Port POE+ Power Over Ethernet POE Switch

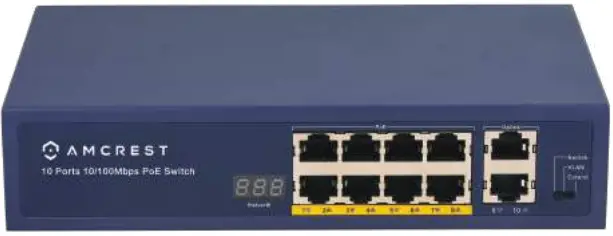

Product Overview
Features
Common Features:
Two-layer commercial PoE switch.
Supports IEEE802.3i 10 BASE-T, IEEE802.3u 100 BASE-TX, IEEE802.3x Flow Control, IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet, IEEE802.3az EEE Protocols
MAC auto study and aging, MAC address list capacity is 4K.
All ports self-adapt MDI/MDIX mode.
All 10/100M auto-negotiation RJ45 PoE ports support IEEE802.3af and IEEE802.3at standards.
Commercial wide temperature design.
Supports AC100-240V 5/60Hz Power Supply
Individual Features:
8-port PoE switch supports 2 100M self-adaptive RJ45 UpLink ports and 8 10/100M self-adaptive PoE RJ45 ports. 8-port PoE switch with max 96W total power consumption.
1 PoE Power Consumption Status Display.
Typical Application
The typical application of the device is shown in Figure 1- 1

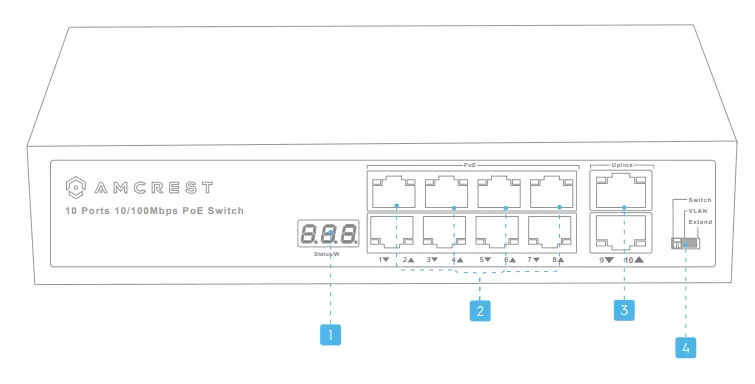

Device Structure
Port PoE Switch
| SN 1 | Name
PoE Consumption Status |
LED |
Screen | Note
Monitor the total power consumption of each PoE port. |
| 2 | 1, 2, 3, 4, 5, 6, 7, 8 | 8 10/100M auto-negotiation RJ45 ports. | ||
| 3 | 9, 10 (Uplink) | 2 100M self-adaptive RJ45 ports. | ||
| 4 | Switch, VLAN, Extend | Manually change between Switch, VLAN, and extended modes. | ||
PoE Power Output
10/100 RJ45 PoE Ports support IEEE802.af and IEEE802.3at power standards. Supports simultaneous power to each port using IEEE802.3at and using IEEE802.3af. Total power draw of the unit cannot exceed 96W.
