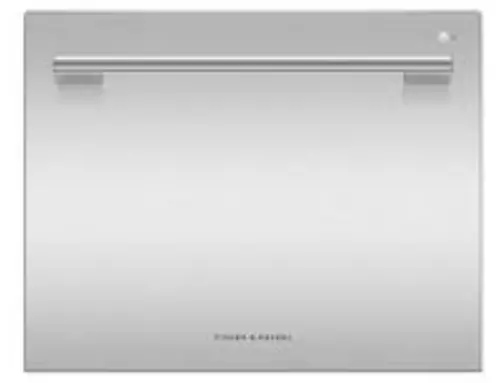

FISHER PAYKEL DD24STX6PX1 Stainless Steel Dishdrawer Dishwasher User Guide
Introduction
Place anywhere in your kitchen at bench height for easy loading and minimal bending. Features a premium stainless steel interior and distinctive Professional styling.
- Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware
- Fits full-size dinner plates up to 12 1/4 inches, with flexible racking for large cookware
- With a soft-close drawer, and knock to pause convenience
- Wi-Fi capability and a SmartHQ™ app for remote control and notifications.

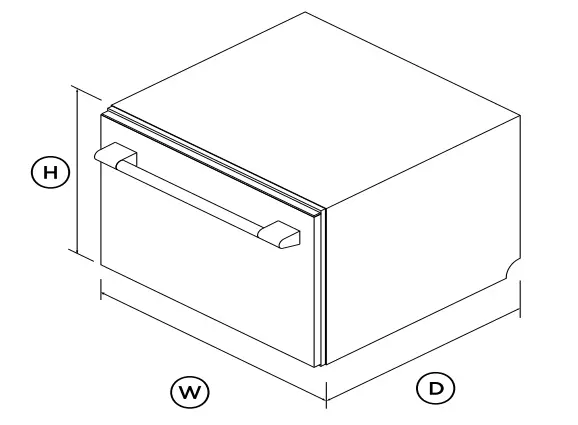

DIMENSIONS
Height 18 13/16″
Width 23 9/16″
Depth 22 9/16″
FEATURES & BENEFITS
Ease of use
DishDrawer™ Dishwashers are beautiful to use with soft-close drawers, and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking includes height-adjustable cup racks and wine glass supports.
Complementary design
With distinctive, bold styling, this DishDrawer™ Dishwasher is designed to match the Fisher & Paykel Professional style family of appliances.
Flexible wash options
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
Design quality
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
Knock to pause
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
Quiet performer
Running at a low decibel rating of 43dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
Efficient performance
Our Energy Star rated DishDrawer™ Dishwashers use the energy they need without compromising on wash performance.
SPECIFICATIONS
Accessories
- Cutlery basket •
- Knife clip and multipurpose •
- Professional round flush handle AHP3-DWDD-SX
- Professional round handle kit AHP2-DWDD-SX
- Professional square handle kit AHV2-DD24
Capacity and loading
- Accommodates round plates 12.25″
- Adjustable height, foldable •
- Fold down tines •
- Pitch adjustable tines •
- Place settings 7
- Wine glass supports with •
Consumption
- Energy rating Energy star
- Energy usage 155kWh/year
- Water usage (per wash cycle) 1.65 gal
Controls
- Child lock •
- Electronic fault/Diagnostic •
- End of cycle beeps •
- Energy saving delay start •
- Internal wash selector •
- Rinse aid indicator light •
- Spray arm sensing •
- Wi-Fi connectivity •
Features
- Fan assisted drying •
- Flow through detergent •
- Internal tub material Stainless steel
- Quiet operation •
- SmartDrive™ technology •
- Soft close drawer •
Performance
- Noise on standard cycle top 43dBA
Power requirements
- Amperage 5A
- Electric circuit 3 wire
- Rated current 15A
- Supply frequency 60Hz
- Supply voltage 120V
Product dimensions
- Depth 22 9/16″
- Height 18 13/16″
- Width 23 9/16″
Warranty
- Parts and labor Limited 2 years
Wash Program Modifiers
- Dry + •
- Quiet •
- Sanitize •
- Wash modifiers 3
Wash Programs
- 60 min •
- Auto •
- Eco •
- Glassware •
- Heavy •
- Light •
- Medium •
- Rinse •
- Wash programs 8
Water connection
- Inlet water temperature 140°F
- Supplied hose to suit 3/8″ •
- Water pressure 0.03 Mpa – 1 Mpa (4.3-145 psi)
- SKU 82398
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
