Service First Dream Flagpole Christmas Light Conversion Kit Instruction Manual

SERVICE FIRST Dream Flagpole Christmas Light Conversion Kit

Veteran owned & Operated

Service First is owned and operated by Parker McCumber, an OEF Veteran, who served with the 2nd Cavalry Regiment and 1st Cavalry Division as a Forward Observer and Fire Support Section Chief. Parker has also served several years in the Utah National Guard as a Targeting NCO, and is continuing his service and transitioning to officership with the Utah National Guard. We know the sacrifice service members make, and recognize their contributions to our great nation as we pay respect to our flag and all it represents. “I believe every American should be able to fly our nation’s flag proudly, and the mission of ServiceFirstProducts.com is to make it easy and affordable for everyone to have a beautiful flagpole in their yard and at their home.”

• Parker McCumber

PARTS

DreamFlagpole Christmas Light Conversion Kit

• Suitable for flagpoles 30’ or less Only available from Service First™

INSTRUCTIONS

• Installing your Dream light A complete installation video is available at www.ServiceFirstProducts.com.
• These instructions will work for both Telescoping and Sectional Flagpoles. There may be slight differences between the actual installation and the graphics/instructions below.

1. Lower or remove your flagpole from the ground sleeve so you can access the top of the flagpole. Remove the current finial (gold ball/eagle) and all flags from your flagpole.

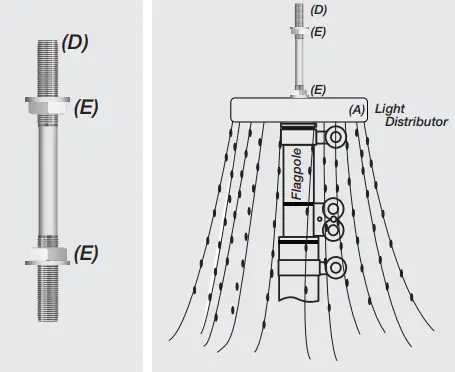

2. Using the Star Bolt (D), thread a nut (E) on the upper and lower threads of the Bolt, add a washer and slide through the Light Distributor (A), and screw securely to the top of your flagpole. (see diagram below) IMPORTANT Hand tightens ONLY!

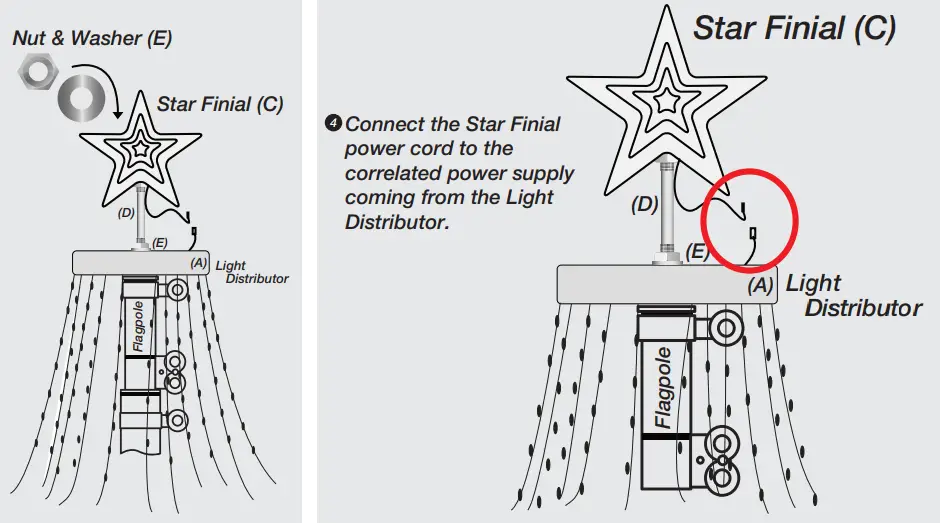

3. Install the Star Finial (C) onto the Star Bolt (D) and use Nut & Washer (E) to secure. Important Hand tightens ONLY!
4. Connect the Star Finial power cord to the correlated power supply coming from the Light Distributor.
5. LIGHTS LIGHTS: If you have a telescoping flagpole extend each section until the flagpole is at the desired height. If you have a Sectional Flagpole, with the help of another adult raise the flagpole and place it into the ground sleeve with the Dream lights installed.

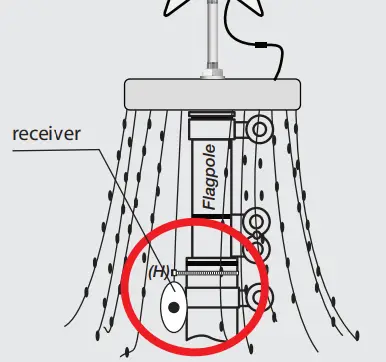

6. The Large zip-tie (H) can be used to secure the receiver to the flagpole. The receiver hangs from the Light Distributor and can be used to control the lights without the remote control. The button on the receiver functions like the Mode button on the remote.
7. Untie and pull the strands away from the flagpole. Temporarily stake the strands to the ground using the included tie-down stakes (F). This will keep the strands from getting tangled. Raise or extend your flagpole. Re-adjust the stakes to the desired diameter and location. The included small zip-ties (G) can be used to ensure the light strands stay connected to the stakes if necessary

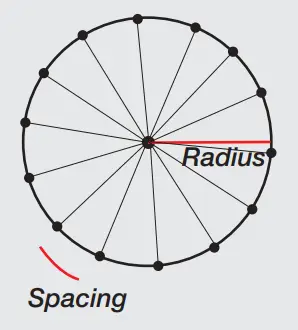

You are able to choose the diameter of your Tree Light display. Below are some recommended distances according to flagpole height, however these are just suggestions.
Note: The Dream lights are designed to fit poles up to 30’ tall, if they are installed on a flagpole shorter than 30’, there will be some of the strand left on the ground. The extra can be bundled on the ground, arranged as a base around the pole, or cut to a shorter length. More info on cutting can be found on the next page.

• 20’ or less flagpoles
  • 9’ radius 4’ spacing between light strands.
• 25’ Flagpoles
  • 10’ radius 4.5’ spacing between light strands
• 30’ Flagpoles
  • 11’ radius 5’ spacing between light strands
• These are approximate distances and may vary depending on sleeve depth and installed pole height.

TRIMMING LIGHTS

The Dream lights are designed to be trimmed to fit different size flagpoles. When the kit arrives the length is set to fit a 30’ Flagpole. You can use the lights at this length or if you have a shorter flagpole and prefer the light strands to be trimmed, you can easily cut the length to your desired size. Please be very cautious when trimming the lights. Once they are cut they cannot be reconnected.

• Warning: Before trimming the light strands, make sure you unplug the Dream lights from power. Trimming the lights with the power connection can result in electrical shock and/or damage to the Dream lights.
• Caution: Measure the lights carefully before cutting. Lights cannot be reconnected after trimming. Service First is not responsible for errors made when trimming the lights.

Other Flagpole Accessories Available

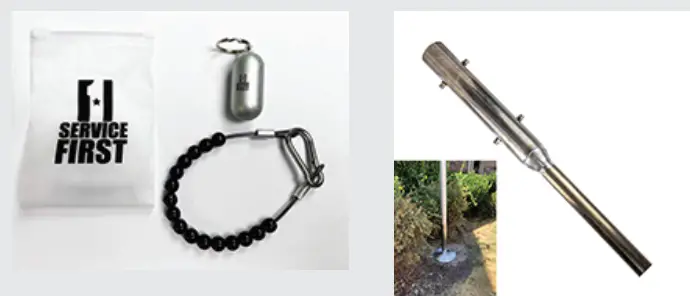

• Flag Tether & Weight
  Allows you to fly a flag at half-staff, reduces stress on the flagpole, and gives you a nice clean look.
• Flagpole Adapter
  Allows you to keep an existing 2” ground sleeve while upgrading the flagpole to a 3” design. No tearing out concrete.
• Additional Flags
  We carry hundreds of different flags including state, political, military, sports teams, and more.

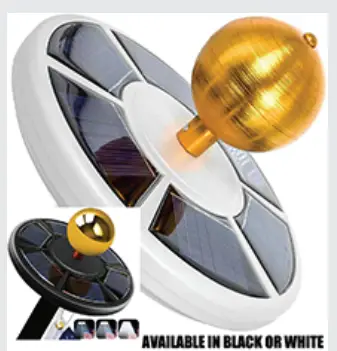

• Solar Lights
  Achieve the perfect light for your flagpole without hard-wiring a lighting system. Charges by day and automatically lights at night.

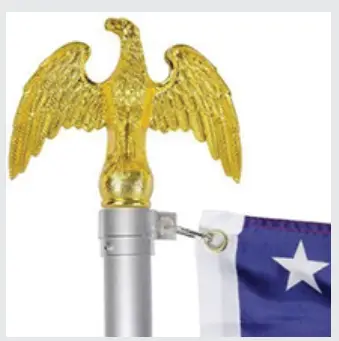

• Gold Eagle finial
  The perfect finial for your flagpole.

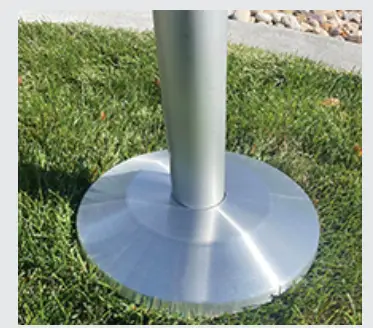

• Flash Collar
  Give your flagpole that perfect finishing look. Covers concrete base.

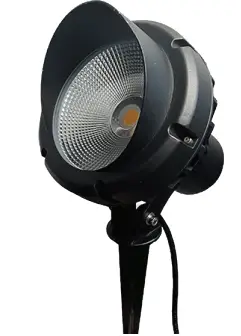

• Spot Light
  Ground mounted spotlight
• Hitch Mount
  Take your flagpole on the go with our Hitch mount. Fits 2”- 3” Flagpoles

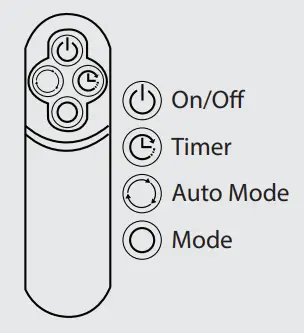

MODE CONTROL

Mode

Each time the Mode button is pressed one of the 26 different colors or displays will show. The color or display will remain until the Mode button is pressed again

Auto Mode
Pressing the Auto Mode button will begin a continuous cycle of all 26 colors and displays. The cycle will loop after the last display is shown.

Timer
By pressing the Timer button you can select between two different preset auto timers:

• Press Once- LED on the controller will flash Red 3 times and the lights will stay lit for 4 hours and then remain off for 20 hours before turning on again.
• Press Twice LED on the controller will flash Green 3 times and the lights will stay lit for 6 hours and then remain off for 18 hours before turning on again.
• Press 3x- LED on the controller will flash White 3 times and this will CANCEL all timers previously set. You will then need to turn on/off the lights manually.
• If the Dream lights lose or are disconnected from power the timer will need to be restarted.
• www.ServiceFirstProducts.com

• e: [email protected]
