Nilfisk Spray Lance Alto Pressure Washer

Product Information

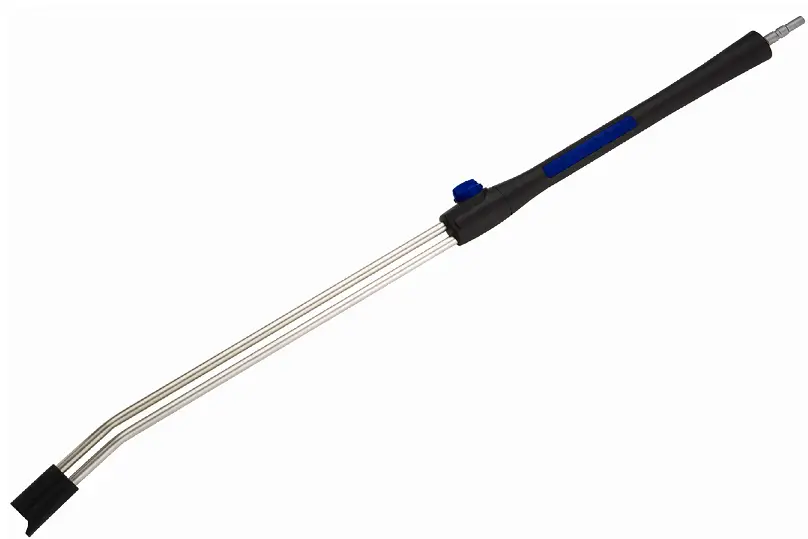

Spray Lances

A spray lance is an essential accessory for pressure washers. Nilfisk offers a range of spray lances including Powerspeed Vario Plus, Tornado Plus, FlexoPower Plus, Turbohammer Plus, Universal Plus, and 4-in-1 spray lances. These spray lances come with adjustable pressure settings and nozzles of different sizes to cater to different cleaning needs. The spray lances also have safety features to ensure that they are used correctly and safely.

Adjustment of Spray Angle Powerspeed Vario Plus

To adjust the spray angle of Powerspeed Vario Plus, turn the nozzle tip in the desired direction. This will change the spray angle from a fine point to a wider fan pattern.

Use of Detergents

If you want to use detergents, you can do so by using an external chemical injector. Open the reduction valve for operation with low pressure to allow the addition of detergents.

Safety Guidelines

Do not direct water jets towards electric wiring or the cleaner itself.
Do not direct water jets towards people or pets.

Repairs and Accessories

If any part of the nozzle needs to be replaced, rep.kits are available for replacement of nozzle parts, reduction valve, and spray lance shells. The side bar is available as an accessory for all 5 models of spray lances.

Nozzle Size/Colour Marking

Nozzles with smaller diameters than those specified for the machine must not be mounted on the lance. Therefore, the spray lances are not immediately interchangeable. You will find the correct nozzle size in the instruction manual of the machine.

Nozzle Size for Old KEW and Wap Machines

If you have an old KEW machine, use the left side of the table. If you have an old Wap machine, use the right side of the table. Look in the table to find the order number for the right nozzle size for your equipment.

Old nozzle size	New nozzle size	Order number
KEW 04	0435	101119739
Wap 04	0400	101119738

Product Usage Instructions

Spray Lances

Attach the spray lance to your pressure washer.
Adjust the pressure settings on the spray lance as per your cleaning needs.
Turn on the pressure washer and point the spray lance at the surface you want to clean.
To adjust the spray angle, turn the nozzle tip in the desired direction.
To use detergents, use an external chemical injector and open the reduction valve for operation with low pressure to allow the addition of detergents.
After use, turn off the pressure washer and detach the spray lance from it.
Clean the spray lance and store it in a safe place.

Instructions for Use

Thank you for buying a Nilfisk spray lance. Please read these instructions carefully through before you start using the lance.

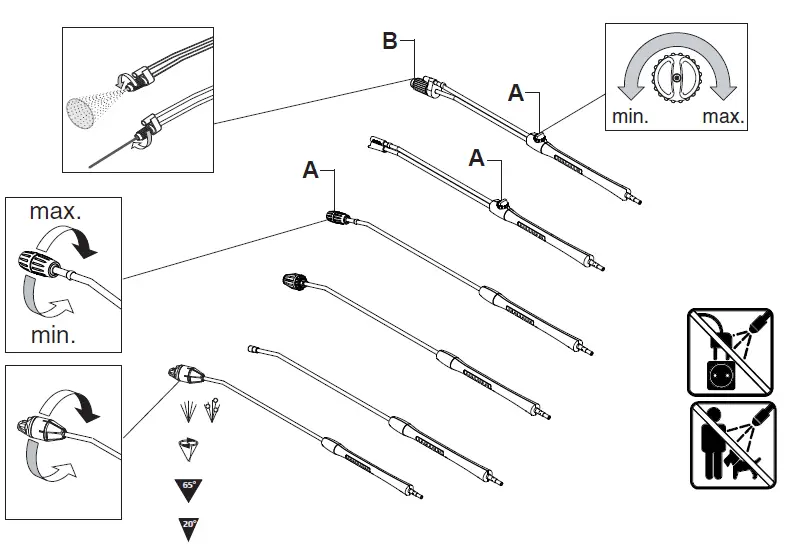

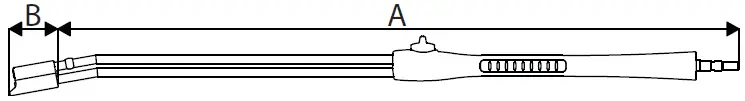

Spray lance with pressure regulation

To obtain max. working pressure, the reduction valve (A) of the spray lance should be fully closed (max).
To work with completely reduced pressure by full water capacity, the reduction valve should be wide open (min).

Adjustment of spray angle Powerspeed Vario Plus

For specially tough cleaning tasks the spray pattern of the nozzle is infinitely variable from 0-20° in one turn (B).

Use of detergents

When using an external chemical injector, open the reduction valve for operation with low pressure to allow the addition of detergents.

Safety

Water jets should never be directed towards electric wiring or the cleaner itself.
Water jets should never be directed towards people or pets.

Rep.kit

Rep.kits for the replacement of nozzle parts, reduction valve and spray lance shells are available.

Side bar

The side bar is available as an accessory for all 5 models of spray lances, order no. 106402110.

Nozzle size / colour marking

Nozzles with smaller diameters than those specified for the machine must not be mounted on the lance. Therefore, the spray lances are not immediately interchangeable.
You will find the correct nozzle size in the instruction manual of the machine; on new machines it will also appear from the machine data plate, i.e.:
or from the colour code on the old spray lance.
Look in the table on the back of these instructions to fi nd the order number for the right nozzle size for your equipment.

Nozzle size

old KEW and Wap machines

If you have an old KEW machine, use left side of table. Example: You have a KEW 04 nozzle, go one column to the right in the table and fi nd your new size = 0435. Then proceed to the order number 101119739.

If you have an old Wap machine, use right side of table. Example: You have a Wap 04 nozzle, go one column to the left in the table and fi nd your new size = 0400. Then proceed to the order number 101119738.

Powerspeed Vario: temp. max. 85°C / 185°F
Turbohammer: temp. max. 90°C / 194°F
4-in-1: temp. max. 60°C / 140°F

Old KEW Size	New Nilfisk Number System	Colour Code	Order Number	Old Wap Size
	0275	Dark brown	101117692
03	0340	Violet	101119735
	0350	Bordeaux	101119736	035
035	0370	Bronze	101119737
	0400	Metallic Grey	101119738	04
04	0435	Blue	101119739
	0450	Light Blue	101119740	045
	0475	Clear blue	301150005
05	0500	Yellow	101119741	05
055	0530	Red	101119742
	0550	Neon Green	101119743	055
	0600	Metallic Blue	101119744	06
06	0640	Green	101119745
	0650	Pale Green	101119746	065
065	0680	Grey	101119747
07	0700	Redorange	101119748	07
	0750	Skin Red	101119749
	0800	Beige	101119750	08
085	0850	White	101119751	085
	0900	Mahogny Brown	101119752	09
	0950	Dark rose	101117655
	1000	Graphite Black	101119754	10
11	1100	Orange	101119756	11
	1200	Caramel Brown	101119758
13	1300	Brown	101119760	13
	1500	Army Green	101119762
	1590	Grey blue	301150004
