hama 00221085 DAB or DAB Plus Radio Indoor Antenna

DAB/DAB+ Radio Indoor Antenna

This is a DAB/DAB+ radio indoor antenna designed to help improve
the quality of reception of your digital radio. It comes with operating instructions in various languages including English, German, French, Spanish, Dutch, Swedish, Russian, Bulgarian, and Greek.

Package Contents

1 DAB/DAB+ Radio Indoor Antenna

Specifications

Supply Voltage: 230-240 V
Rated Power Consumption: 0.3 W
Frequency Range: 30 dB
Amplification: 40 mA
Input AC Frequency: 50 Hz
Manufacturer’s Name: Hama
Model Identifier: HYND-0600050EUA
Average Active Efficiency: 53.4%

Startup and Operation

To use the antenna, simply connect it to your digital radio using the F-plug/coax socket. Make sure to position the antenna in a location with good reception. Note that the number and quality of stations received may vary depending on the position of the antenna and local conditions.

Care and Maintenance

To clean the antenna, disconnect it from the power supply and use a slightly damp, lint-free cloth. Do not use aggressive cleaning agents.

Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

Thank you for choosing a Hama product.
Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

Explanation of Warning Symbols and Notes

Risk of electric shock
This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.

Warning
This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note
This symbol is used to indicate additional information or important notes.

Package Contents

DAB/UKW antenna
Power supply unit
F socket/coax socket adapter
These operating instructions

Safety Notes

The product is intended for private, non-commercial use only.
The product is intended for indoor use only.
Use the product for its intended purpose only.
Protect the product from dirt, moisture and overheating and use it in dry rooms only.
Children should be supervised to ensure that they do not play with the device.
Do not use the product in areas where the use of electronic devices is not permitted.
Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
Use the item only in moderate climatic conditions.
Keep this product, as all electrical products, out of the reach of children!
Do not operate the product outside the power limits given in the specifications.
Do not use the product in moist environments and avoid splashes.
Lay all cables so that they do not pose a tripping hazard.
Do not bend or crush the cable.
Do not drop the product and do not expose it to any major shocks.
Dispose of packaging material immediately according to locally applicable regulations.
Do not modify the device in any way. Doing so voids the warranty.

Risk of electric shock

Do not open the device or continue to operate it if it becomes damaged.
Do not use the product if the AC adapter, the adapter cable or the mains cable are damaged.
Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.

Specifications

Supply voltage	220 – 240 V AC / 50 Hz
Rated power consumption	40 mA
Frequency range	87,5 – 108 MHz 174 – 240 MHz (Band III) 1452 – 1492 MHz (L band)
Amplification	30 dB
Connection	F-plug/coax socket
Ambient temperature	-20 to +40° C

Specifications in accordance with Regulation (EU) 2019/1782

Specifications in accordance with Regulation (EU) 2019/1782
Manufacturer’s name or trade mark, commercial registration number and address	Hama, HRA12159, Dresdner Str. 9, 86653 Monheim
Model identifier	HYND-0600050EUA
Input voltage	230-240 V
Input AC frequency	50 Hz
Output voltage / Output current / Output power	6.0 V DC / 0.05 A / 0.3 W
Average active efficiency	53,4 %
Efficiency at low load (10 %)	35,7 %
No-load power consumption	0.07 W

Starting Overview

Warning

Connect the product only to a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
Disconnect the product from the network using the power button – if this is not available, unplug the power cord from the socket.
When using a multi-socket power strip, make sure that the sum power draw of all the connected devices does not exceed its maximum throughput rating.
If you will not be using the product for a long period of time, disconnect it from mains power.

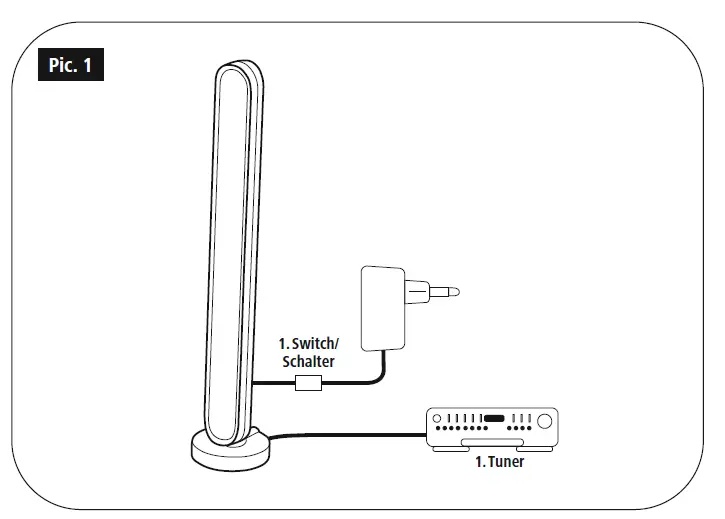

Connect the enclosed power supply unit to the DAB antenna (pic. 1).

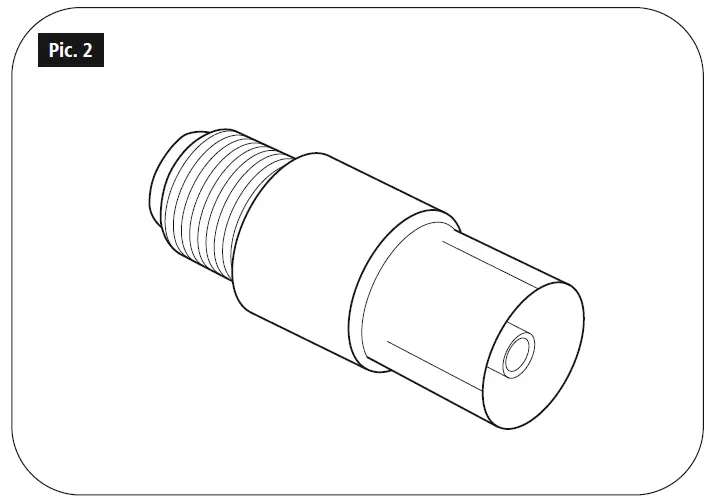

Connect the DAB antenna to your DAB/FM/UKW tuner (pic. 1). If necessary, use the enclosed antenna adapter (pic. 2).
Perform a channel scan on your DAB/FM/UKW tuner.
Switch the antenna off using the on/off switch on the power cable if it is not in use.

Note
Please note that the number and quality of stations received may vary depending on the position of the antenna and local conditions.

Maintenance

Note
Disconnect the device from the power supply before cleaning it or if it is not going to be used for a long period of time. Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

Warranty

Declaration of Conformity

Hereby, Hama GmbH & Co KG declares that the radio equipment type [00221085] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://uk.hama.com 00221085 Downloads

Hama GmbH & Co KG
86652 Monheim / Germany
