Inventum Hn1300v Electric Blanket Instruction Manual

ELECTRIC BLANKET • UNTERBETT • CHAUFFE LIT
elektrische deken
HN1300V
Instruction manual

Explanation of symbols

	Read the instructions!
	Do not pierce with needles!
	Do not use when folded or creased!
	Not to be used with very young children (0-3 years).
	Dispose of packaging in an environmentally friendly manner
	This product satisfies the requirements of the applicable European and national directives.
	Woolens programme 30 °C.
	Do not bleach.
	Do not tumble dry.
	Do not iron.
	Do not clean chemically.
	The textiles used for this device meet stringent human ecological requirements of Oeko -Tex Standard 100, as verified by Hohenstein Research Institute.
	Manufacturer
	A quality mark for electrical appliances that meet the safety requirements of DEKRA SE (formerly KEMA).
	The device has double protective insulation and therefore complies with protection class 2.
	Please dispose of the device in accordance with EC Directive –WEEE (Waste Electrical and Electronic Equipment).
	The electric blanket is suitable for 1 person.
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
	NOTE; Refers to important information.

Safety instructions

Important safety instructions – read carefully and keep for later use!

WARNING

• Non-observance of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product.
  For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.
• This heated underblanket must not be used by persons who are not sensitive to heat or by other vulnerable persons who may not be able to react to overheating (e.g. diabetics, people with skin alterations due to illness or scarred tissue in the application area, after taking pain relief medication or alcohol).
• This heated underblanket must not be used by very young children (0-3 years old) as they are unable to respond to overheating.
• The heated underblanket can be used by children older than 3 and younger than 8 years of age provided they are supervised. For this, the control must always be set to the minimum temperature.
• This heated underblanket may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised and have been instructed on how to use the heated underblanket safely, and are fully aware of the consequent risks of use.
• Children must not play with the heated underblanket.
• Cleaning and user maintenance must not be performed by children unless supervised.
• This heated underblanket is not designed for use in hospitals.
• This heated underblanket is only intended for domestic/private use, not for commercial use.
• Do not insert needles.
• Do not use when folded or bunched up.
• Do not use if wet.
• Before using it on an adjustable bed, check that the heated underblanket and the cables are not, for example, trapped in a hinge or bunched up.
• This heated underblanket may only be used in conjunction with the control specified on the label.
• This heated underblanket must only be connected to the mains voltage that is specified on the label.
• The electrical and magnetic fields emitted by this heated underblanket may interfere with the function of a pacemaker.
  However, they are still well below the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please therefore consult your doctor and the manufacturer of your pacemaker before using this heated underblanket.
• Do not pull, twist or make sharp bends in the cables.
• If the cable and control are not positioned properly, there may be a risk of becoming entangled in, being strangled by, tripping over, or stepping on the cable and control of the heated underblanket. The user must ensure that excess lengths of cable, and cables in general, are safely routed.
• Please check this heated underblanket frequently for signs of wear and tear or damage. If any such signs are evident, if the heated underblanket has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.
• Under no circumstances should you open or repair the heated underblanket (including the accessories) yourself because faultless functionality can no longer be guaranteed thereafter. Failure to observe this will invalidate the warranty.
• The appliance may not be used with an external timer or a separate remote control.
• If the mains connection cable of this heated underblanket is damaged, it must be disposed of. If it cannot be removed, the heated underblanket must be disposed of.
• When this heated underblanket is switched on:
  – Do not place any sharp objects on it
  – Do not place any heat sources, such as hot water bottles, heat pads or similar, on it
• The electronic components in the control warm up when the heated underblanket is in use. For this reason, the control must never be covered or placed on the heated underblanket when it is in use.
• It is essential to observe the information relating to the following chapters: Operation, Cleaning and maintenance, Storage.
• If you should have any questions about using our devices, please contact our Customer Services department.

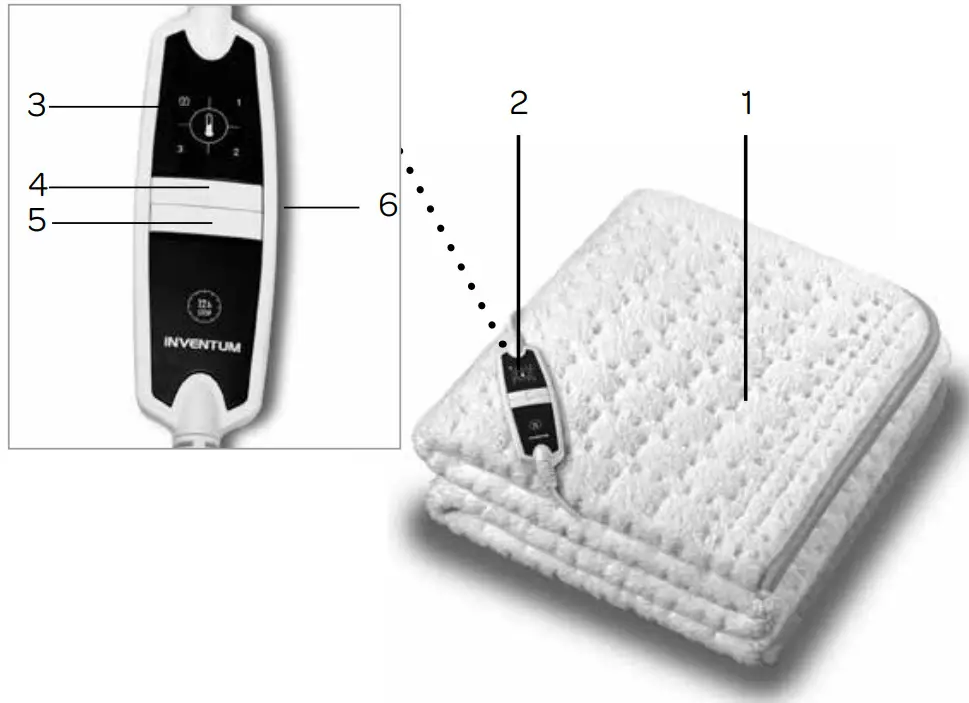

Appliance description

1. Electric blanket
2. Control
3. LED-/ temperature settings indicator
4. Button for increasing the temperature
5. Button for reducing the temperature
6. ON/OFF switch

HN1300V
1-person electric underblanket
Dimensions: 150 x 80 cm
4 settings with an illuminated switch
Separate footwarmth setting
Automatic switch off after 12 hours
Detachable cord
Machine washable, 30 °C
60 Watt
Material: supersoft fleece(top) and fleece (bottom)

Intended use

CAUTION
This electric underblanket is designed for warming beds, only.

Operation

4.1 Safety
CAUTION

• This heated underblanket is equipped with the INVENTUM SAFETY SYSTEM (ISS). This sensor technology prevents the entire surface of the heated underblanket from overheating by automatically switching off the heated underblanket in the event of a fault. If the safety system has switched off the heated underblanket, the temperature setting is not illuminated any more even when the heated underblanket is switched on.
• Please note that the heated underblanket is not operable any more due to safety reasons in this case and has to be sent to the service address indicated.
• Do not connect the defective heated underblanket with another control of the same type. This would trigger a permanent switch off via the control’s safety system.

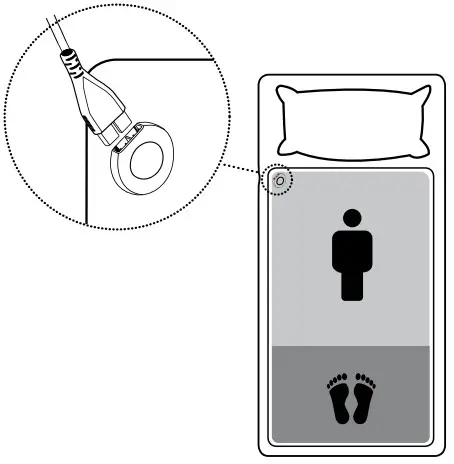

4.2 Initial use

• Spread out the heated underblanket flat onto your mattress starting at the foot end.
  The electric blanket can be used on both sides.
• To operate the heated underblanket connect the control to the heated underblanket by plugging in the connector.
• Then plug in the supply plug into the mains outlet.
• Then put on your bedsheet in the usual manner so that the heated underblanket is between your mattress and the bedsheet.

CAUTION
Make sure that the underblanket is spread out entirely flat and that it will not rumple up or crease when in use. Check its position when making the bed.

4.3 Switching on
Slide the ON/OFF switch (6) on the side of the control (2) to position 1 ( I ), to switch the electric blanket on.
When it is switched on, the LED indicator for temperature setting 1 lights up.
4.4 Setting the temperature
Press the button (4) to increase the temperature.
Press the button (5) to decrease the temperature.

Setting 0: OFF
Setting 1: minimum heat
Setting 2: medium heat
Setting 3: maximum heat
Stand: maximum heat – just the feet area

NOTE

• The quickest way to heat up the electric underblanket is to select the highest temperature setting of the control, first.
• We strongly recommend switching on the electric underblanket approx. 30 minutes before going to bed and covering it with the quilt to prevent the warmth from escaping.

CAUTION
If the heated underblanket is used continuously (for several hours) it is recommended to use the lowest setting (1) of the control to avoid the body overheating and thereby any potential burns to the skin or heat stroke.

4.5 Automatic switch off
This electric underblanket switches off automatically after 12 hours. Once the electric underblanket has switched off, it is no longer heated and the LED indicator for temperature setting 1 flashes.
To switch on the electric underblanket again, first set the ON/OFF switch on the side of the control to the OFF ( 0 ) position for 5 seconds. Then set the ON/OFF switch back to ON ( I ) and select the desired temperature setting.
4.6 Switching off
Slide the on-/ off button (9) at the side of the control to position 0, to switch the electric blanket off.

NOTE
If the electric underblanket is not used for several days, set the ON/OFF switch to the OFF (0) position and remove the mains plug from the socket. Then remove the control from the electric underblanket by disconnecting it at the connector.

Cleaning & maintenance

WARNING
Always remove the supply plug from the mains outlet and remove the control from the electric underblanket by disconnecting it at the connector. Otherwise there is a risk of an electric shock.
CAUTION
The control must never get in contact to water or other liquids. Otherwise, the control may be damaged.

• To clean the control, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.
• Small marks on the electric underblanket can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

CAUTION
The electric underblanket should not be dry cleaned, wrung out, dried in the machine, mangled or ironed. Otherwise the electric underblanket could get damaged.

• In case of heavier soiling, this electric blanket can be washed in a washing machine.
• Set the washing machine to a particularly gentle, 30 °C cycle (woolens programme). Use a wool laundry detergent and follow the manufacturer’s instructions.

CAUTION
Note that excessive washing will wear out the electric blanket. For this reason, the electric blanket should only be machine washed a maximum of 5 times throughout its entire life.

• While the electric blanket is still damp after washing, shape it to its original form and size and place it flat over a clothes drying rack to dry.

CAUTION

• Do not attach the electric underblanket to washing lines with washing pegs or similar. Otherwise the electric underblanket may be damaged.
• Only reconnect the control to the electric underblanket after the connector and the electric underblanket are completely dry. Otherwise the electric underblanket may be damaged.

WARNING
Under no circumstances switch on the electric underblanket to dry it. Otherwise, there is a risk of an electric shock.

Storage

When not in use we recommend to store the electric underblanket in its original packaging. For this purpose, disconnect the control from the electric underblanket by unplugging the plug-in coupling.

CAUTION

• Please allow the electric underblanket to cool down first.
  Otherwise, the electric underblanket may be damaged.
• To avoid sharp folds in the electric underblanket, do not place any objects on top of it while it is being stored.

Disposal

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Problems & solutions

Inventum Huishoudelijke
Apparaten B.V.
Postbus 5023
6802 EA Arnhem
www.inventum.eu
instagram.com/inventum1908
facebook.com/inventum1908
youtube.com/inventum1908

07.100.355_HN1300V_2022-01-19_02_IM_INV
Modifications and printing errors reserved
