QUICK START GUIDE
BAR 5.1 SURROUND
Before using this product, read the safety sheet carefully.

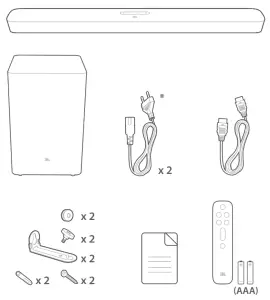

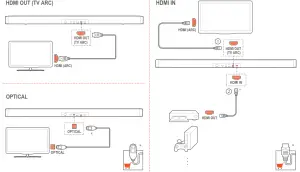

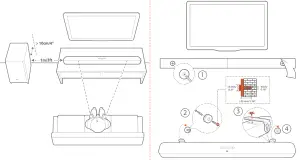

*Power cord quantity and plug type vary by regions.

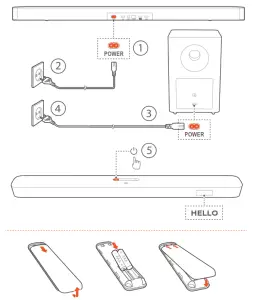

The subwoofer and the soundbar will be paired automatically when both are powered on.

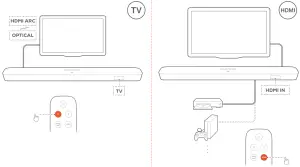

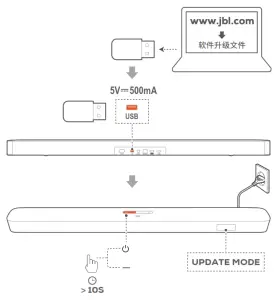

For software upgrade.

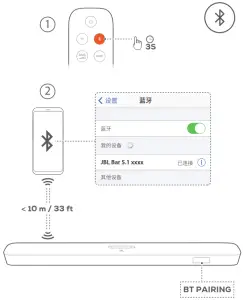

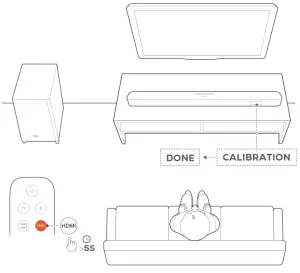

Automatic MultiBeam Calibration
With Automatic MultiBeam™ Calibration (AMC), your surround sound experience can be optimized for your favorite seating position.

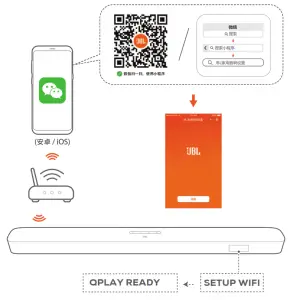

Add the soundbar to your home Wi-Fi network: Option A: Launch the WeChat app
on your mobile phone and then scan the above QR code, or search for the Mini Program “JBL”. Follow the onscreen instructions to complete setup.

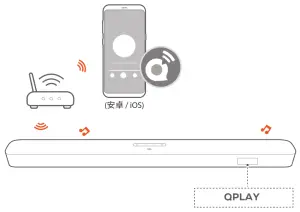

Stream music from QQMusic to the soundbar: Launch the QQMusic app
on your mobile phone, play music and tap the QPlay icon
to select “JBL Bar 5.1 xxxx” as speaker.

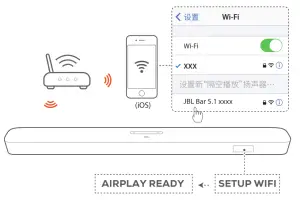

Add the soundbar to your home Wi-Fi network: Option B: On an iOS device, go to Settings > Wi-Fi and select “JBL Bar 5.1 xxxx” under SET UP NEW AIRPLAY SPEAKER… Follow the onscreen instructions to complete setup.
| General specification: • Model: Bar 5.1 CNTR (Soundbar Unit), BAR 5.1 SUB (Subwoofer Unit) • Power supply: 100 – 240V AC, ~ 50/60Hz • Total speaker power output (Max. @THD 1%): 550W • Soundbar output power (Max. @THD 1%): 5 x 50W • Subwoofer output power (Max. @THD 1%): 300W • Soundbar transducer: 5 x racetrack drivers + 2 x 1.25” side-firing tweeters • Subwoofer transducer: 10” • networked standby power: <2.0W • Operating temperature: 0°C – 45°C HDMI specification: • HDMI Video input: 1 • HDMI Video output (With Audio return channel): 1 • HDMI HDCP version: 2.3 Audio specification: • Frequency response: 34Hz – 20KHz • Audio inputs: 1 Optical, Bluetooth, USB (for service only) USB specification: • USB port: Type A • USB rating: 5V DC, 0.5A Wireless specification: • Bluetooth version: 4.2 • Bluetooth profile: A2DP V1.2, AVRCP V1.5 • Bluetooth frequency range: 2402MHz – 2480MHz | • Bluetooth Max. transmitting power: <11dBm (EIRP) • Modulation Type: GFSK, π/4 DQPSK, 8DPSK • Wi-Fi network : IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz) • 2.4G Wi-Fi frequency range: 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) • 2.4G Wi-Fi Max. transmitting power: <20dBm • Modulation Type: DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM • 5G Wi-Fi frequency range: 5.15 – 5.35GHz, 5.725 – 5.825GHz • 5G Wi-Fi Max. transmitting power: <22dBm • Modulation Type: QPSK, BPSK, 16QAM, 64QAM, 256QAM • 5G Wireless frequency range: 5736.35 – 5820.35MHz • 5G Max. transmitting power: <9dBm (EIRP) • Modulation Type: π/4 DQPSK Dimensions: • Dimensions (W x H x D): 1018 x 58 x 100mm / 40.1”x 2.3” x 3.9” (Soundbar); 305 x 440 x 305mm /12.0”x 17.3”x 12.0”(Subwoofer) • Weight: 3.06Kg (Soundbar); 10.62Kg (Subwoofer) • Packaging dimensions (W x H x D): 1105 x 382 x 488 mm / 43.5” x 15.0” x 19.2” • Packaging weight (Gross weight): 16.8 Kg |
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
The Wi-Fi CERTIFIED™ Logo is a certification mark of the Wi-Fi Alliance®.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Dolby Vision, and the double-D symbol are trademarks of Dolby Laboratories.
Apple, AirPlay, iPad, iPad Air, iPad Pro, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.
To control this AirPlay 2–enabled speaker, iOS 11.4 or later is required.
SB_JBL_Bar 5.1 & SUB_China_QSG_CR_V12
