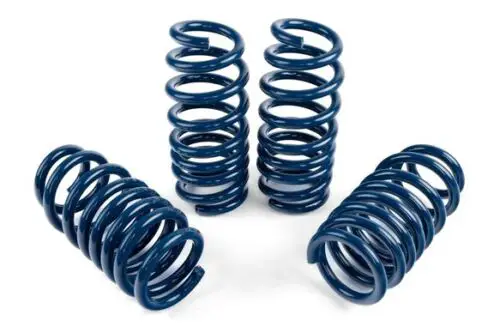

DINAN D100-0936 Performance Spring Set Instructions
INSTALLATION NOTES
PLEASE READ BEFORE BEGINNING INSTALLATION
The front & rear springs look very similar to each other. Please refer to the part number printed on each spring to determine the correct installation location:
- D100-0860 = Front Spring
- D100-0862 = Rear Spring
For best results, we recommend installation of the companion handling kit, p/n D193- 0121.
Alignment:
- An alignment is required after installation.
- All Dinan suspension alignments are done with full fuel tanks and no weight inside the vehicle.
- Specifications are as follows:
FRONT Setting Tolerance Camber -1.8° ± 0.42° Caster 8.0° ± 0.5° Total Toe 0.17° ± 0.03° REAR Camber -1.5° ± 0.08° Total Toe 0.23° ± 0.03°
If you encounter any difficulties during the installation, or if these instructions are not clear to you, please call Dinan’s Technical Support Staff @ (800) 341-5480.
Happy Motoring!
