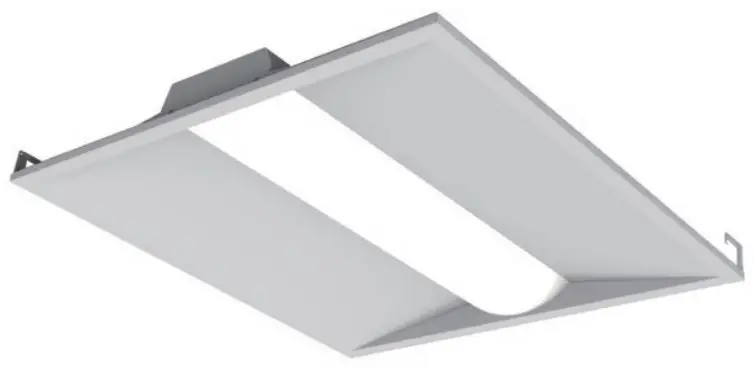

superbrightleds com TLFD-xK2x-xW-H Dimmable LED Troffer Light User Manual

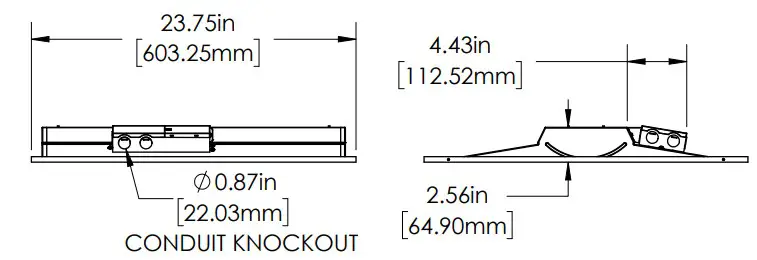

Dimensional Drawings

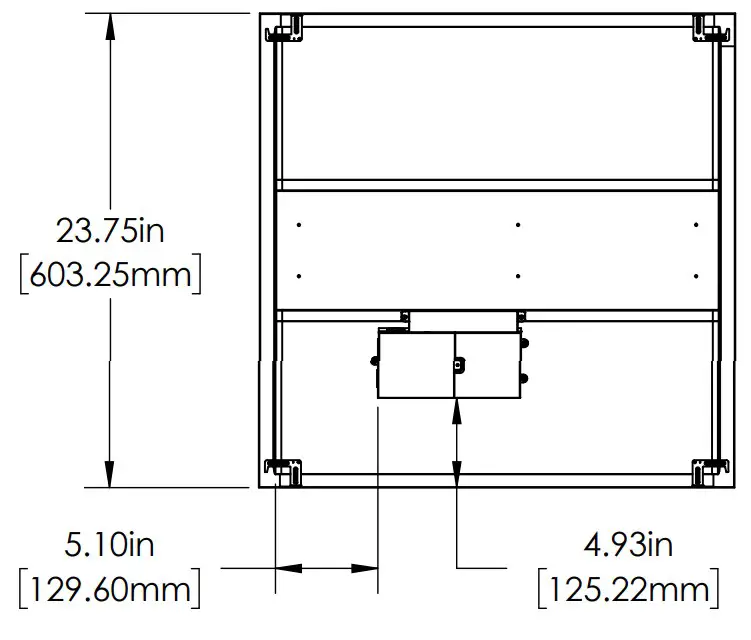

TLFD-xK22-40W-H

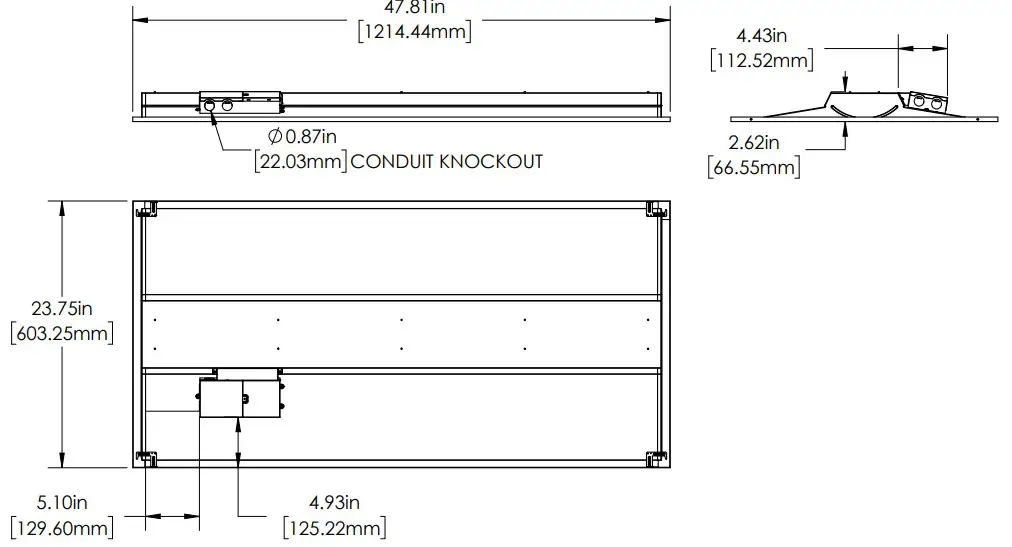

TLFD-xK24-50W-H
Specifications
| Model | TLFD-xK22-40W-H | TLFD-xK24-50W-H |
| Operating Voltage | 100–277 VAC | |
| Power Consumption | 40 W | 50 W |
| Operating Temperature | -4°–113° F (-20°–45° C) | |
| Environmental Rating | IP20 | |
| Dimming | 0–10 V | |
| Weight | 5.7 lb (2.59 kg) | 10 lb (4.54 kg) |
Safety Information
- Product should be installed by a certified electrician in accordance with applicable national, state, and local building and electrical codes.
- To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
- Avoid looking directly into the lamp when illuminated.
- Ensure all mounts are securely attached and will support the weight of the fixture. Failure to properly support the fixture may result in damage or injury, for which the manufacturer does not assume responsibility.

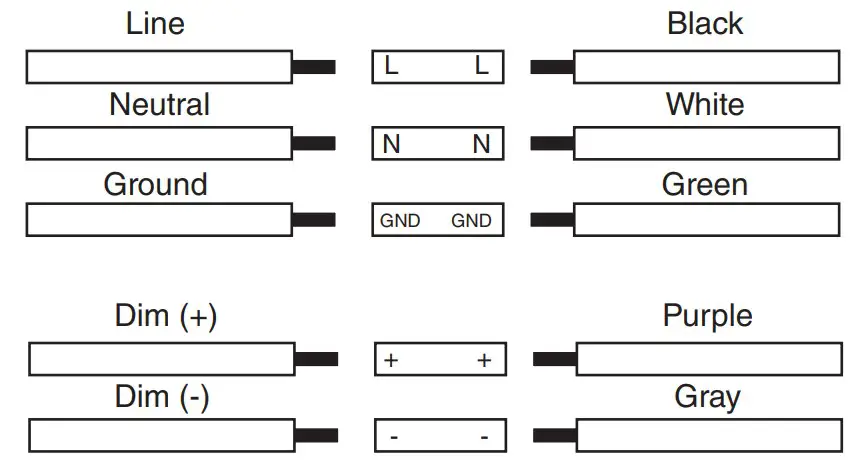

Wiring Diagram
Note: Cap any unused wires during installation process.
Installation Instructions
- Make electrical connections in attached junction box.

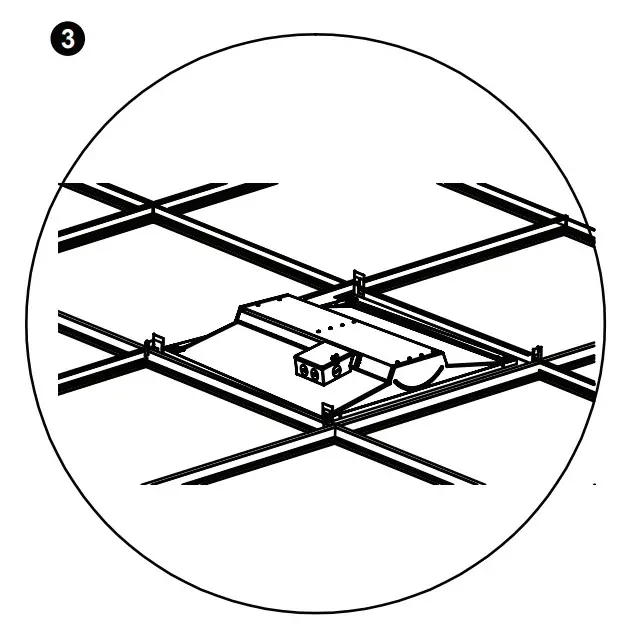

- Lay fixture into T-grid.

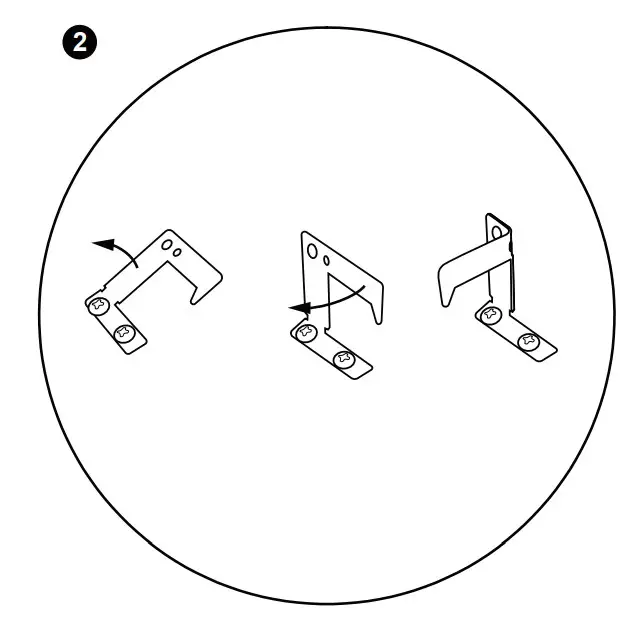

- Bend out safety tab to be vertical, then upper portion out 90 degrees.
Note: Tabs should secure light in T-grid while still allowing reinstallation of adjacent ceiling tiles. A #8 x 1/4” sheet metal screw may be used to secure the fixture also.
