Installation Manual
NNR25 Horizontal ceiling mounted accessories
V1.1
NNR25 Horizontal Ceiling Mounted Accessories V1.1
Please read this manual carefully before installation, and install the product in the correct way.
Please keep it after reading, so that all users of this product can check it at any time.

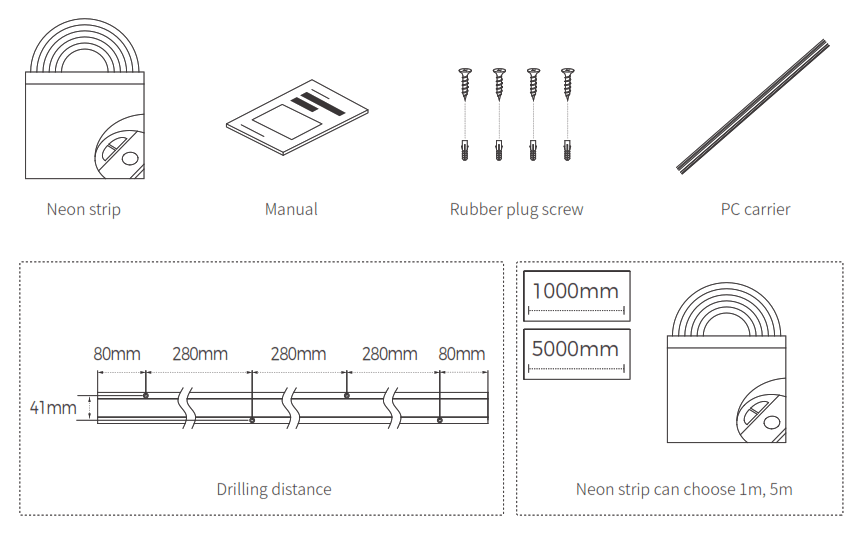

Prepare materials
Prepare materials

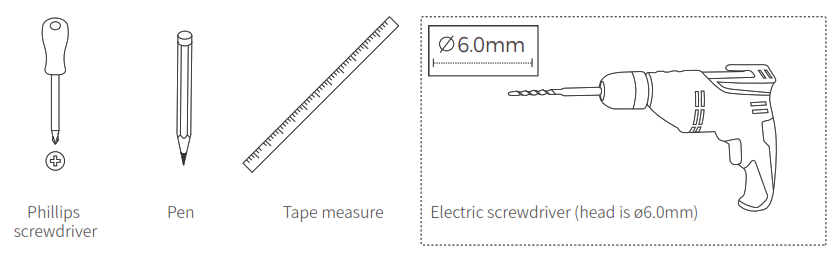

Installation tools
Installation tools

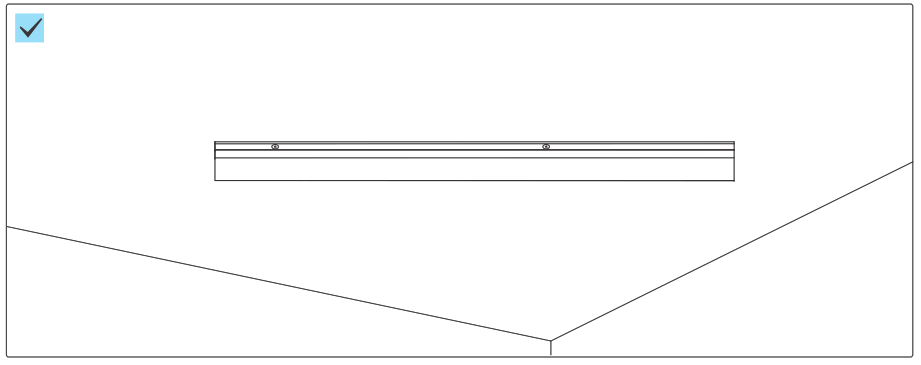

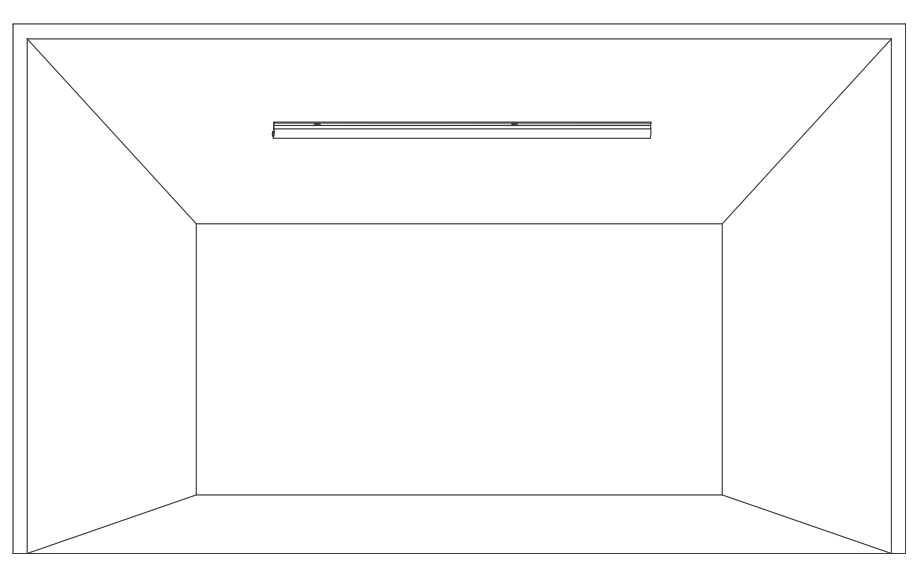

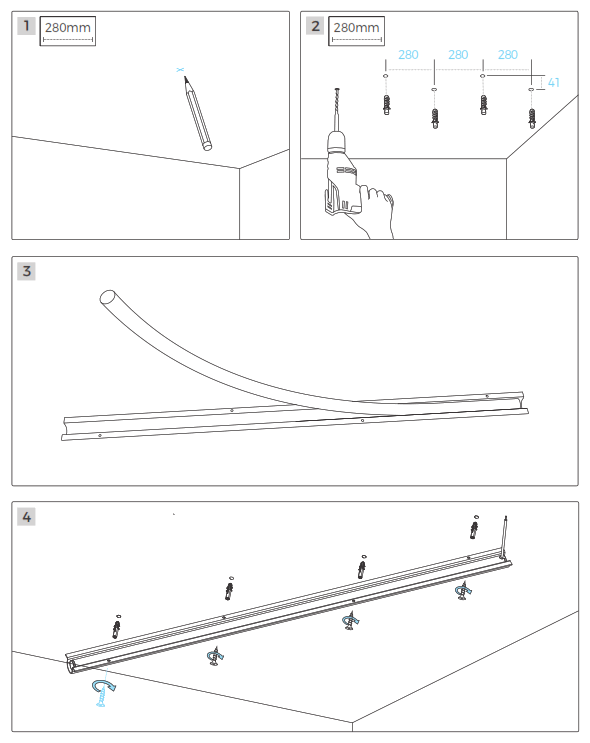

Installation Steps
Parameters
Parameters| Code | Wire length | Load bearing | Outlet | Adaptation model |
| AS-NNR25LCX-1000 | / | 4kg | Side/ Top | NNR25-XXCSN050CC0100 NNR25-XXCSN050CC0500 |
