PocketCross-Laser 2G Line Laser

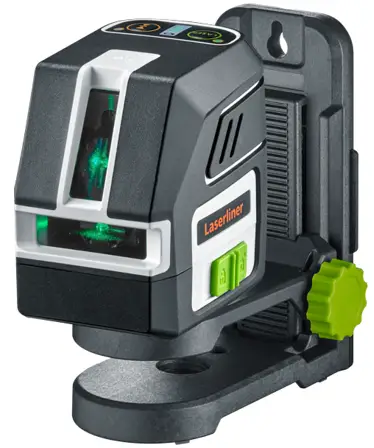

Practical cross-line laser with green laser technology – a wide range of accessories for many different uses

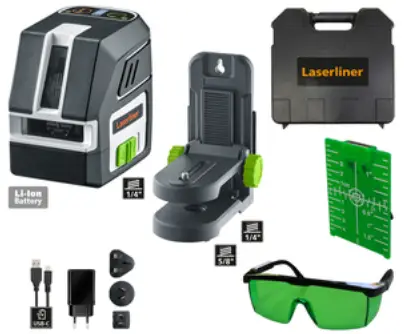

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for creating gradients. A wide range of accessories means this laser is an extremely practical and versatile tool for precision alignment jobs. The PocketWallHolder, a multi-functional, height-adjustable, magnetic bracket, is suitable for attaching the laser to walls, metal items, and tripods with a 1/4” or 5/8” thread. The target plate is particularly useful when working close to the ceiling, for example when fitting suspended ceilings, and can be attached to metal profiles with the magnet. It also has a stand for working close to the ground or positioning on objects, for example, as well as a nail hole and a dual scale (centimeters/inches). Laser enhancement glasses allow laser lines to be clearly seen with the human eye. The powerful lithium-ion battery, which can be charged using the USB-C cable, ensures long operating life. Alternatively, the device can run on mains power.

TECHNICAL SPECIFICATIONS

SELF-LEVELLING RANGE	± 3.5° (horizontal)
ACCURACY	± 0.3 mm / m
LEVELLING	automatic
VISIBILITY (TYPICAL)*	55 m
WORKING RANGE WITH HAND RECEIVER	(depends on how the technology affects the difference in brightness) 40 m
LASER WAVELENGTH	515 nm
LASER CLASS	21< 1 mW (EN 60825-1:2014/AC:2017)
POWER SOURCE	Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh
OPERATING TIME	approx. 15 hours
OPERATING CONDITIONS	0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
STORAGE CONDITIONS	-20°C … 70°C, max. humidity 80% rH
DIMENSIONS (W X H X D)	91 mm x 82 mm x 60 mm x (incl. battery pack / without accessories)
WEIGHT	334 g (incl. batteries)
