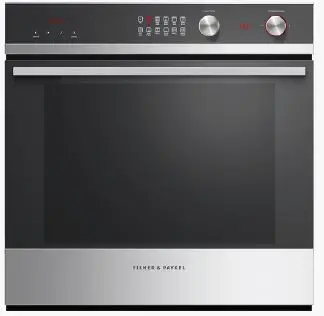

FISHER PAYKEL OB24SCDEX1 24 Inch Oven 11 Function
Series 7 | Contemporary
Stainless Steel
With generous capacity and beautiful contemporary styling, this built-in oven will complement your kitchen design perfectly.
- Three cubic feet total capacity with eleven oven functions including Aero™ Pastry, Roast and Rapid Proof
- Moisture control and even heat distribution thanks to ActiveVent™ and AeroTech technology
- Optional non-tip, full-extension sliding shelves for safe removal of hot dishes

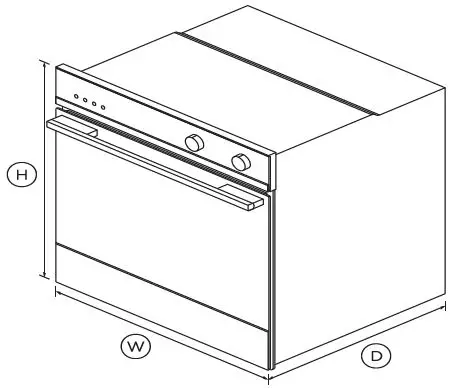

DIMENSIONS
| Height | 23 9/16″ |
| Width | 23 1/2″ |
| Depth | 22 1/4″ |
FEATURES & BENEFITS
Generous capacity
With a generous sized internal cavity, you can create several dishes at once using multiple shelves.
Perfect Results
Our built-in ovens feature ActiveVent technology for optimized moisture levels, and AeroTech™ for even heat distribution. Get perfect results even when you’re using multiple shelves.
Multi-function flexibility
11 functions with pre-set temperatures including Aero™ Pastry,Roast and Rapid Proof mean no matter what you’re cooking, you’ve got the right heat to match.
Seamless fit
Designed to fit seamlessly in your kitchen, this built-in oven fits flush with cabinetry to minimize gaps and add to a cohesive aesthetic.
Cleaning is simple
Cleaning this built-in oven is quick and easy thanks to the catalytic liners which absorb oil and fat splashes during cooking.
Refined styling
With sophisticated handle styling and stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
Safe and sound
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Chromed shelf runners | • |
| Full extension telescopic | • |
| Optional Accessory round | Part 81671 |
| Optional catalytic panels | part 562816 |
| Optional round handle | Part 81645 |
| Step down wire shelf | 1 |
Capacity
| Shelf positions | 6 |
| Total capacity | 3cu ft |
| Usable capacity | 2.5cu ft |
Cleaning
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| Electronic clock | • |
| Electronic oven control | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft close doors | • |
| Turned stainless dials with | • |
Functions
Aero Bake •
Aero Broil •
Aero Pastry •
Bake •
Broil •
Classic bake •
Maxi Broil •
Number of functions 11
Rapid proof •
Roast •
True Aero •
Vent bake •
Warm •
Warm •
Performance
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 3000W |
| Whisper quiet cooking | • |
Power requirements
| Amperage | 19A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
Product dimensions
| Depth | 22 1/4″ |
| Height | 23 9/16″ |
| Width | 23 1/2″ |
Safety
ADA compliant •
Advanced cooling system •
Balanced oven door •
Catalytic venting system •
Control panel key lock •
Non-tip shelves •
Warranty
| Parts and labour | 2 years |
| SKU | 82256 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
