MM712

FILL IN THE BLANKS

WIRELESS SETUP GUIDE

IMPORTANT

Please charge your mouse for at least 2 hours before using it for the first time to ensure optimal battery usage.

Contents hide

5 INDICATOR LIGHTING RULE

6 FCC Warning Statement

7 Documents / Resources

8 Related Posts

BLUETOOTH MODE

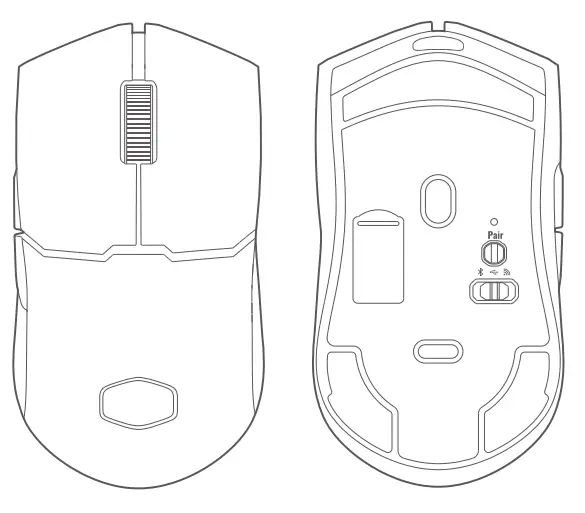

	Turning On Bluetooth for the First Time Toggle the physical switch on the bottom cover of the mouse to enter Bluetooth Mode. Press the ‘Pairing” button for 3 seconds to enter Pairing Mode. The indicator will rapidly flash BLUE 3 times every second to confirm you are in Pairing Mode. If pairing is successful, the indicator will light up with a solid WHITE light for 3 seconds. If unsuccessful, the mouse will enter Sleep Mode after 30 seconds. In Sleep Mode, all the mouse lighting will be turned off.
	Turning On Bluetooth After the First Time When the Bluetooth Mode is activated, the mouse will automatically connect to the previous synced device within seconds. If successfully connected, the indicator will light up with a solid WHITE light for 3 seconds. If unsuccessful, the mouse will enter Sleep Mode after 30 seconds. In Sleep Mode, all the mouse lighting will be turned off.
	Toggle the physical switch on the bottom cover of the mouse to enter Bluetooth Mode. Press the ‘Pairing’ button for 3 seconds to enter Pairing Mode. The indicator will rapidly flash BLUE times one every second to confirm you are In Pairing Mode. 3.11 pairing is successful, the indicator will light up with a solid WHITE light for 3 seconds. If unsuccessful, the mouse will enter Sleep Mode after 30 seconds. In Sleep Mode, all the mouse lighting will be turned off.

2.4 GHz MODE

COOLER MASTER MM712 Ultra Light Mouse - fig 3

Toggle the physical switch on the bottom cover of the mouse to enter the 2.4 GHz Mode. The indicator will continuously flash a BLUE light once every second to confirm it is trying to connect to a device.

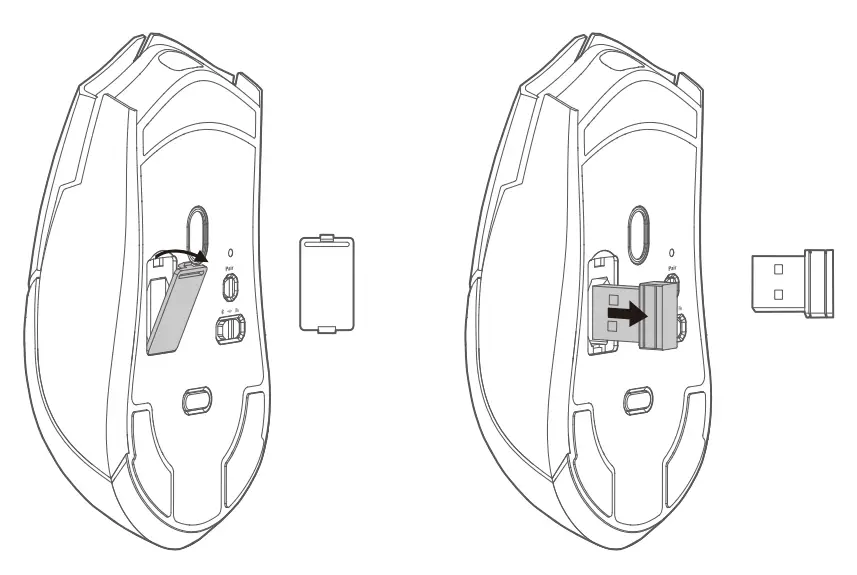

Plug the included dongle into the desired device. The mouse should automatically connect to the device.
If successfully connected, the indicator will light up with a solid WHITE light for 3 seconds. If unsuccessful, the mouse will enter Sleep Mode after 30 seconds. In Sleep Mode, all the mouse lighting will be turned off.
To pair with other devices, simply unplug the dongle and re-plug it into another device. If pairing is successful, the indicator will light up with a solid WHITE light for 3 seconds. If unsuccessful, the mouse will enter Sleep Mode after 30 seconds. in Sleep Mode, all the mouse lighting will be turned off.

COOLER MASTER MM712 Ultra Light Mouse - fig 4

Toggle the physical switch on the bottom cover of the mouse to enter 4 GHz Mode. Press the “Pairing” button for 3 seconds to enter Pairing Mode. The indicator will rapidly flash BLUE 3 times every second to confirm you are in Pairing Mode.
Plug the included dongle into the desired The mouse should automatically connect to the device.
If pairing is successful, the indicator will light up with a solid WHITE light for 3 seconds. If unsuccessful, the mouse will enter Sleep Mode after 30 seconds. In Sleep Mode, all the mouse lighting will be turned off.

WIRED MODE

	If the physical switch is toggled to Bluetooth or 2.4 GHz Mode The mouse will switch to Wired Mode automatically as the physical switch is toggled to Wired and it is connected to a PC or laptop.
	If the physical switch is toggled to Wired Mode The mouse will switch to Wired Mode automatically as it is connected to a PC or laptop.

CHARGING

	If the physical switch is toggled to Bluetooth or 2.4 GHz Mode The mouse will remain connected to the wireless device and begin charging when It is plugged into a PC, laptop, or power source. The LOGO light will be GREEN BREATHING when charging and change to GREEN STATIC when the battery level is full.
	If the physical switch Is toggled to Wired Mode The mouse will begin charging when it is plugged into a PC, laptop, or power source. The LOGO light will be GREEN BREATHING when charging and change to GREEN STATIC when the battery level is full.

INDICATOR LIGHTING RULE

	In Pairing Mode, the indicator will rapidly flash BLUE 3 times every In Connecting Mode, the indicator will continuously flash a BLUE light once every second If Pairing / Connecting Is successful, the Indicator will light up with a solid WHITE light for 3 seconds.
B. CHARGING STATUS INDICATOR	When the mouse is plugged into a PC, laptop, or power source, the LOGO light will be GREEN BREATHING when charging and change to GREEN STATIC when the battery level is full.
C. LOW BATTERY SCENARIO	when the battery level falls below t5%, the indicator will rapidly flash RED light 3 times every 20 This indicator lighting will repeat until the mouse enters Sleep Mode or is connected to the PC, laptop, or power source. * The Low Power Mode percentage can be customized via Cooler Master software. when the battery level falls below 5%, the mouse will go into Deep Sleep Mode. All lighting will be turned off – including the

FCC Warning Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirements.
